Mediant 800 MSBR
Mediant 800A MSBR:
• Port Type: 12-pin female LX40-12P Hirose connector
• Cable: Can be purchased from AudioCodes - RS-232 cable adapter (9-pin DB to
flat connector). The Customer Product Number is PicoBlade-Serial. This
orderable item is supplied in a kit of 10 cables. The figure below displays this
cable adapter, where "P1" and "P2" are standard 9-pin DB for PC COM
connectivity and "P3" is the Hirose male connector.

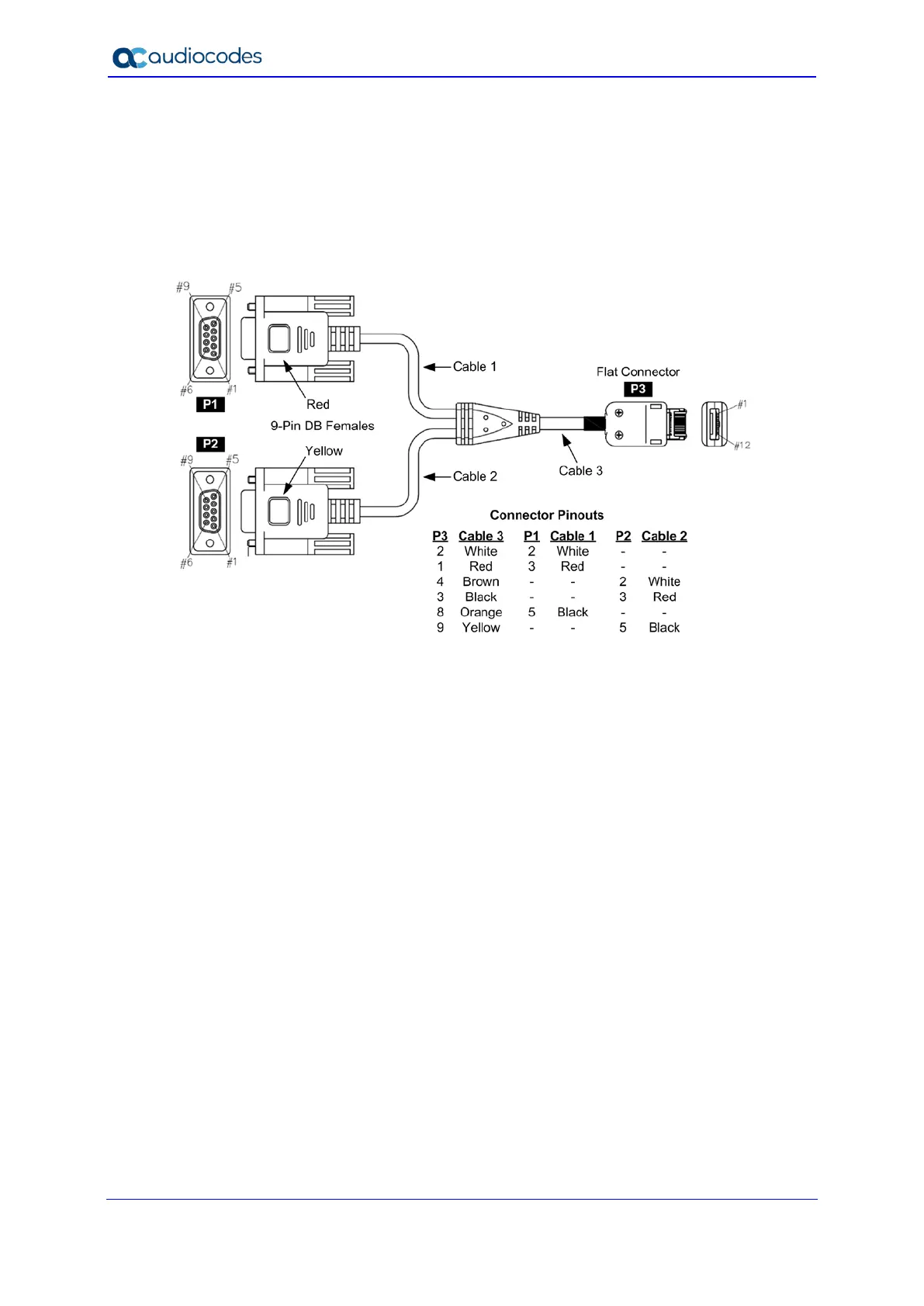

Figure 6-24: Orderable RS-232 Cable Adapter
