MSBR Series 57 Mediant 800 MSBR
Hardware Installation Manual 6. Cabling the Device
6.11 Connecting to Power
The device receives power from a standard alternating current (AC) electrical outlet. The
connection is made using the supplied AC power cord.
Warnings:
• The device must be connected to a socket-outlet providing a protective earthing
connection.
• Use only the AC power cord that is supplied with the device.
• For replacing the power fuse, see Section 7 on page 59.
本製品に添付の電源ケーブルは、Mediant 800 MSBR
に専用設計されているため、汎用性がありません.
本電源ケーブルを他の機器に使用されないよう、ご注意ください.
To connect the device to the power supply:
1. Connect the line socket of the AC power cord (supplied) to the device's AC power
socket (labeled 100-240V 1.5A ~50-60 Hz), located on the rear panel.

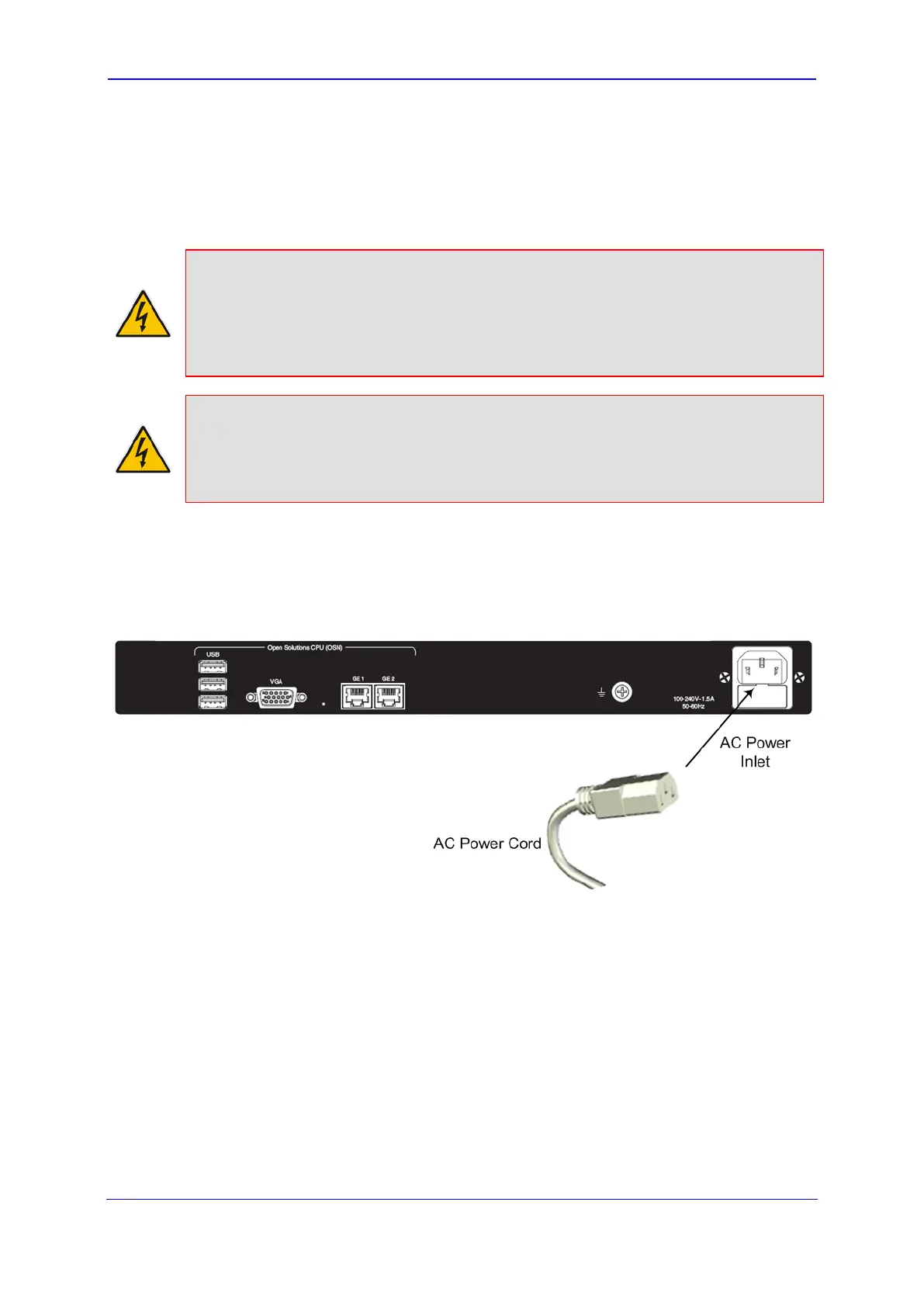

Figure 6-29: Connecting to the Power Supply
2. Connect the plug at the other end of the AC power cord to a standard electrical outlet.
Once you have cabled and powered-up the device, the POWER LED on the front panel
lights up green. For a description of this LED, see Section 3.2.2.10 on page 23.
