Configuration Note 5. Configuring the E-SBC Device
Version 1.0 Issue 1.0 41 October 2011

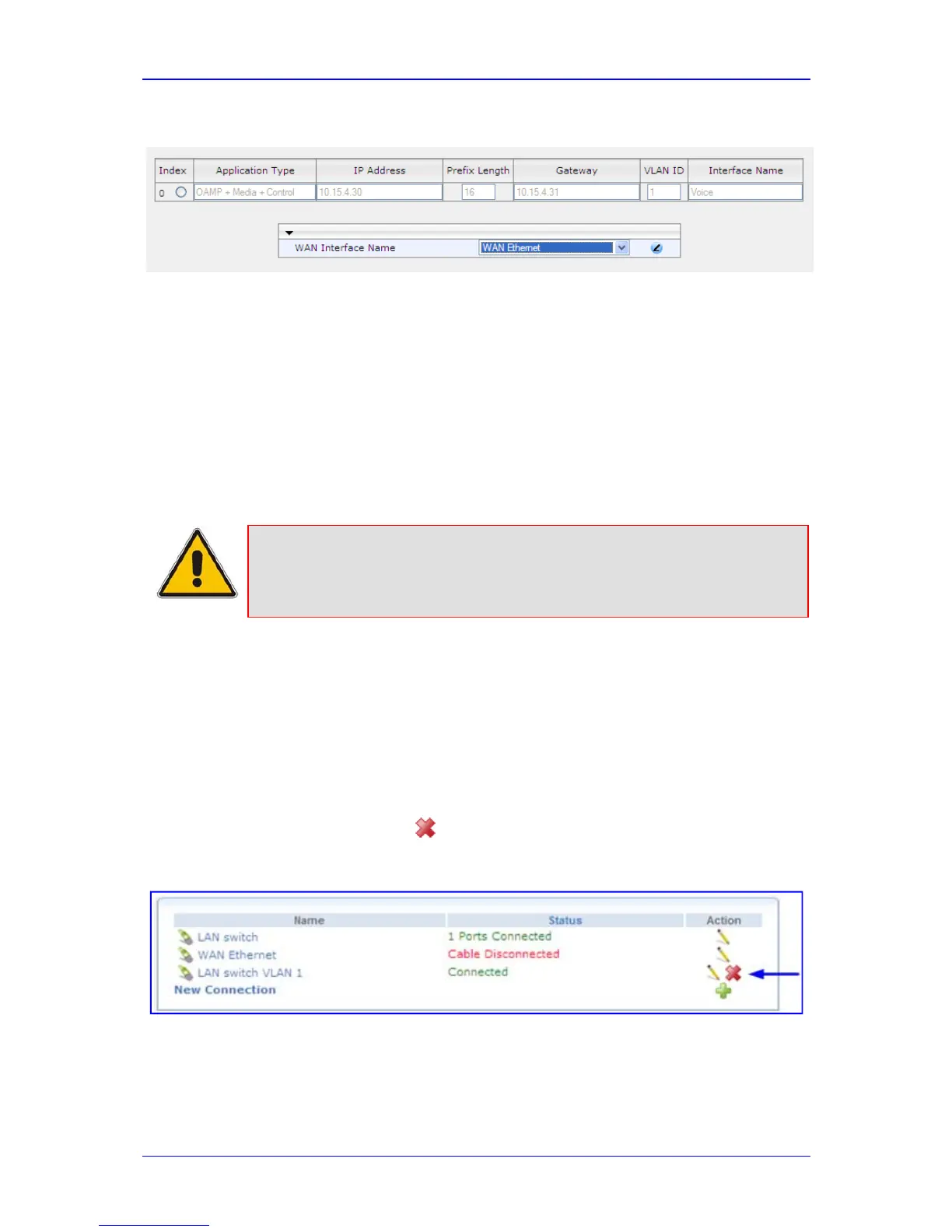

Figure 5-7: Selecting WAN Interface for VoIP Traffic in Multiple Interface Table Page
3. From the 'WAN Interface Name' drop-down list, select the WAN interface for VoIP
traffic.
4. Click Done and then reset the MSBG device for your setting to take effect.
5.1.2 LAN Only Interface
This section describes how to configure IP addresses when a single LAN interface is
used to connect to the PAETEC SIP Trunk. In this configuration, the internal data-
routing capabilities of the E-SBC device are not used. Consequently, disable the
internal data-routing interface as described in the procedure below.
Note: When operating in LAN VoIP-only mode, do not use the E-SBC device’s
WAN port.
¾ To operate the E-SBC device as a LAN VoIP gateway only:
1. Disconnect the network cable from the WAN port and then connect one of the
E-SBC device’s LAN ports to the network.
2. Disable or remove the data-routing IP network interface:
• Access the ‘Connections’ page (Configuration tab > Data menu > Data
System > Connections).
• Delete the “LAN Switch VLAN 1” connection by clicking the corresponding
Remove button , and then clicking OK to confirm deletion.
Figure
5-8: Removing Data-Routing Connection Interface
3. Configure VoIP IP network interfaces in the ‘Multiple Interface’ table
(Configuration tab > VoIP menu > Network > IP Settings).
• In the ‘Multiple Interface’ table, define a single IP network interface for
application types “OAMP + Media + Control”.
