PAETEC and Microsoft Lync Integration 58 Document #: LTRT-33420
Mediant 800/1000/3000 E-SBC
5.9.1 Configure Destination Phone Number Manipulation
This section describes how to configure the destination phone number manipulation.
¾ To configure Destination Phone Number Manipulation Table for IP -> Tel
Calls Table:
Open the ‘Destination Phone Number Manipulation Table for IP -> Tel calls’ page
(Configuration tab > VoIP menu > GW and IP to IP > Manipulations submenu
> Dest Number IP >Tel).

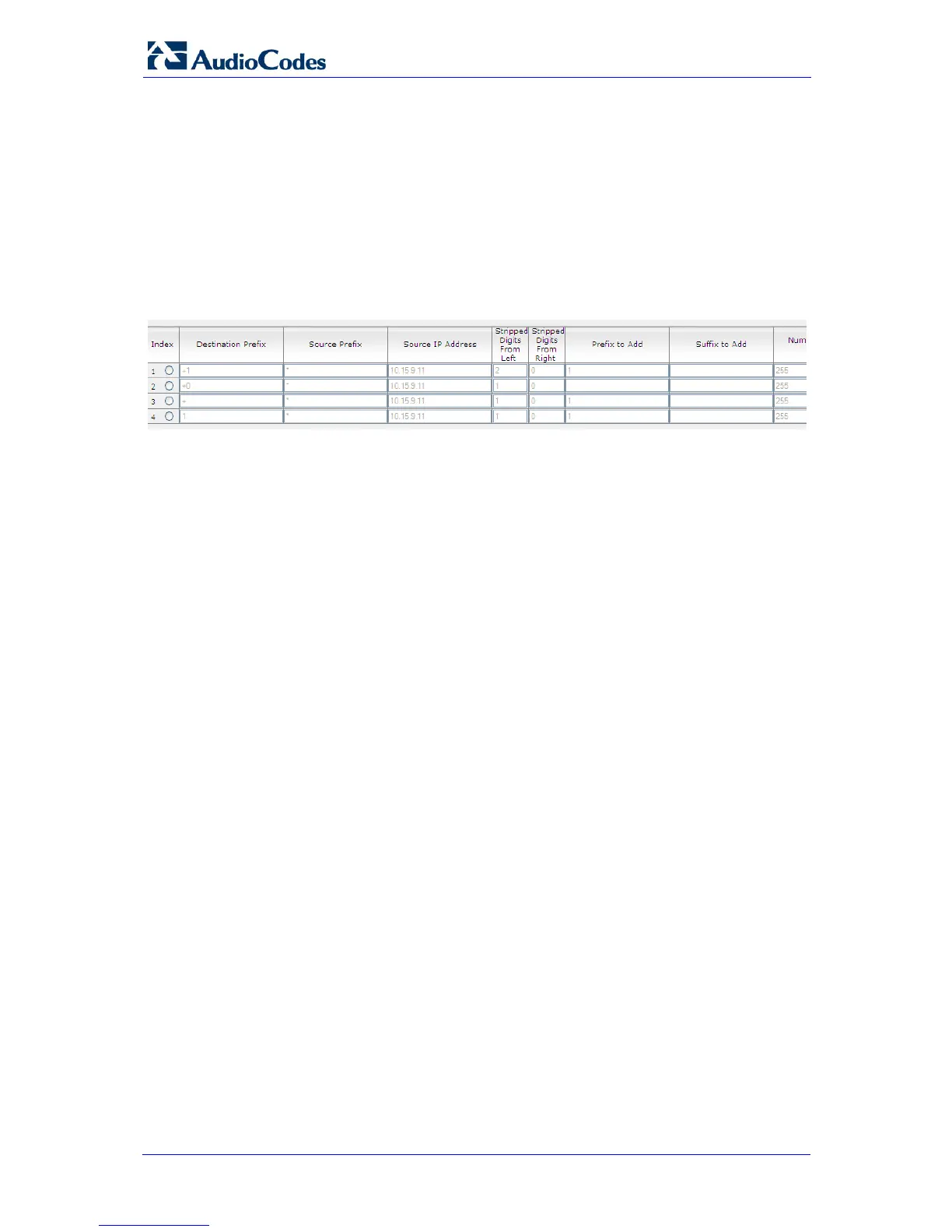

Figure 5-23: Destination Phone Number Manipulation Table for IP -> Tel Calls Page
• Index #1 defines destination number manipulation of IP calls from Lync
2010 Mediation Server. All calls received from IP address 10.15.9.11 (i.e.,
from Mediation Server) and the destination number prefix begins with '+1',
Remove the ‘+1’ from the Number, and add the prefix ‘1’.
• Index #2 defines destination number manipulation of IP calls from Lync
2010 Mediation Server. All calls received from IP address 10.15.9.11 (i.e.,
from Mediation Server) and the destination number prefix begins with '+0',
Remove the ‘+’ from the Number.
• Index #3 defines destination number manipulation of IP calls from Lync
2010 Mediation Server. All calls received from IP address 10.15.9.11 (i.e.,
from Mediation Server) and the destination number prefix begins with '+',
Remove the ‘+’ from the Number, and add the prefix ‘1’.
• Index #4 defines destination number manipulation of IP calls from Lync
2010 Mediation Server. All calls received from IP address 10.15.9.11 (i.e.,
from Mediation Server) and the destination number prefix begins with '1',
Remove the ‘1’ from the Number, and add the prefix ‘1’.
¾ To configure Destination Phone Number Manipulation Table for Tel -> IP
Calls Table:
1. Open the ‘Destination Phone Number Manipulation Table for Tel -> IP calls’ page
(Configuration tab > VoIP menu > GW and IP to IP > Manipulations submenu
> Dest Number Tel->IP).
