Configuration Note 5. Configuring the E-SBC Device
Version 1.0 Issue 1.0 45 October 2011
5.4 Step 4: Configure the Proxy Sets
This step describes how to configure the Proxy Sets. The Proxy Sets represent the IP
addresses (or FQDN), which are required for communicating with the entities in the
network:
Proxy Set ID #1 is assigned with the IP address of PAETEC SIP Trunk.
Proxy Set ID #2 is assigned with the IP address of Lync Mediation server.
These Proxy Sets are later assigned to IP Groups (see Section
5.5 on page 47).
¾ To configure proxy sets:
1. Open the 'Proxy Sets Table' page (Configuration tab > VoIP menu > Control
Network > Proxy Sets Table).
2. Configure the Proxy Set for PAETEC SIP Trunk:
From the 'Proxy Set ID' drop-down list, select "1".
a. In the 'Proxy Address' column, enter the IP address or FQDN of the
PAETEC SIP Trunk and the listening port of the PAETEC SIP Trunk.
b. From the 'Transport Type' drop-down list, corresponding to the IP address
entered above, select "UDP".
c. Repeat steps ‘a’ and ‘b’ as required for alternate PAETEC IP Border
Element (if used).
Figure

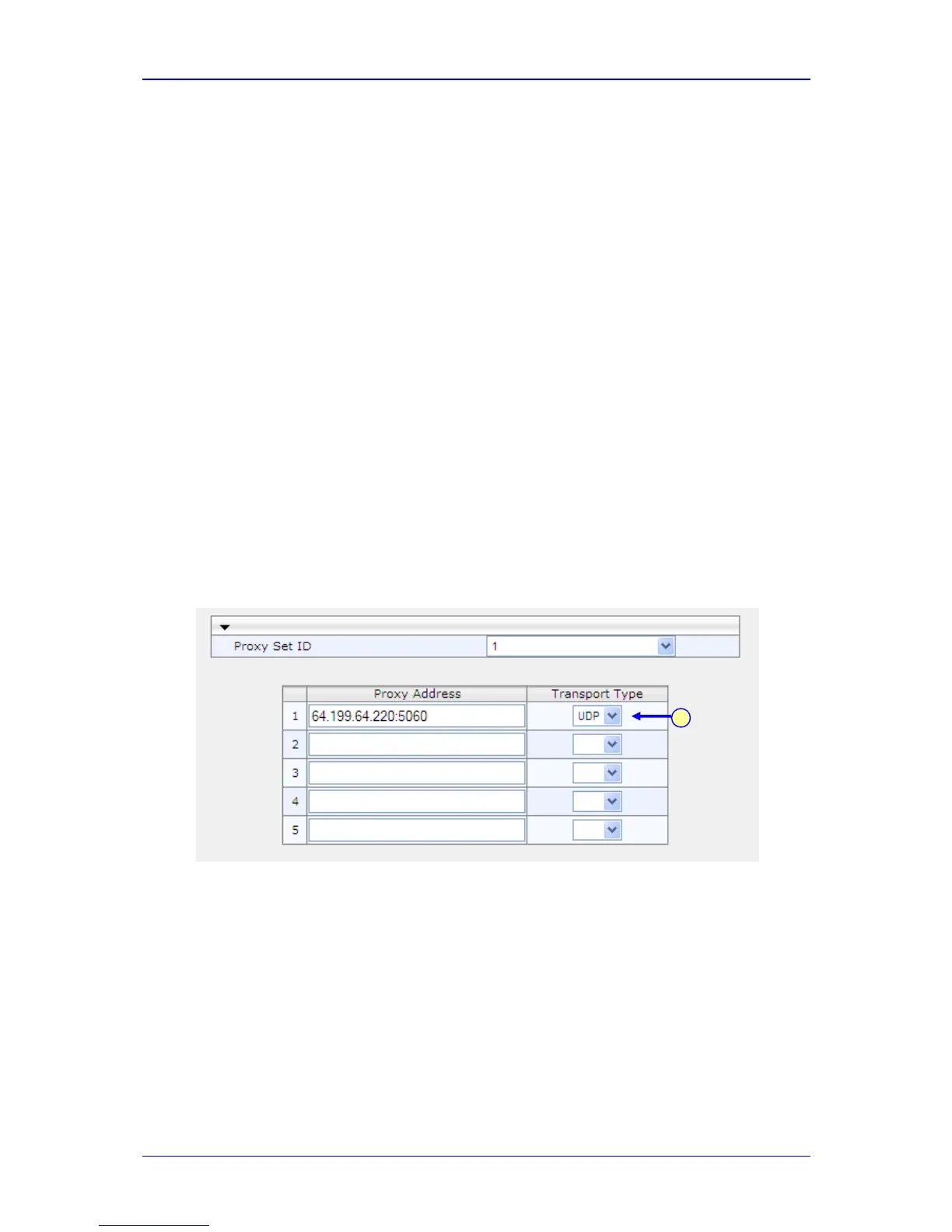

5-12: Proxy Set ID 1 for PAETEC SIP Trunk
