The I/O & Power Interface

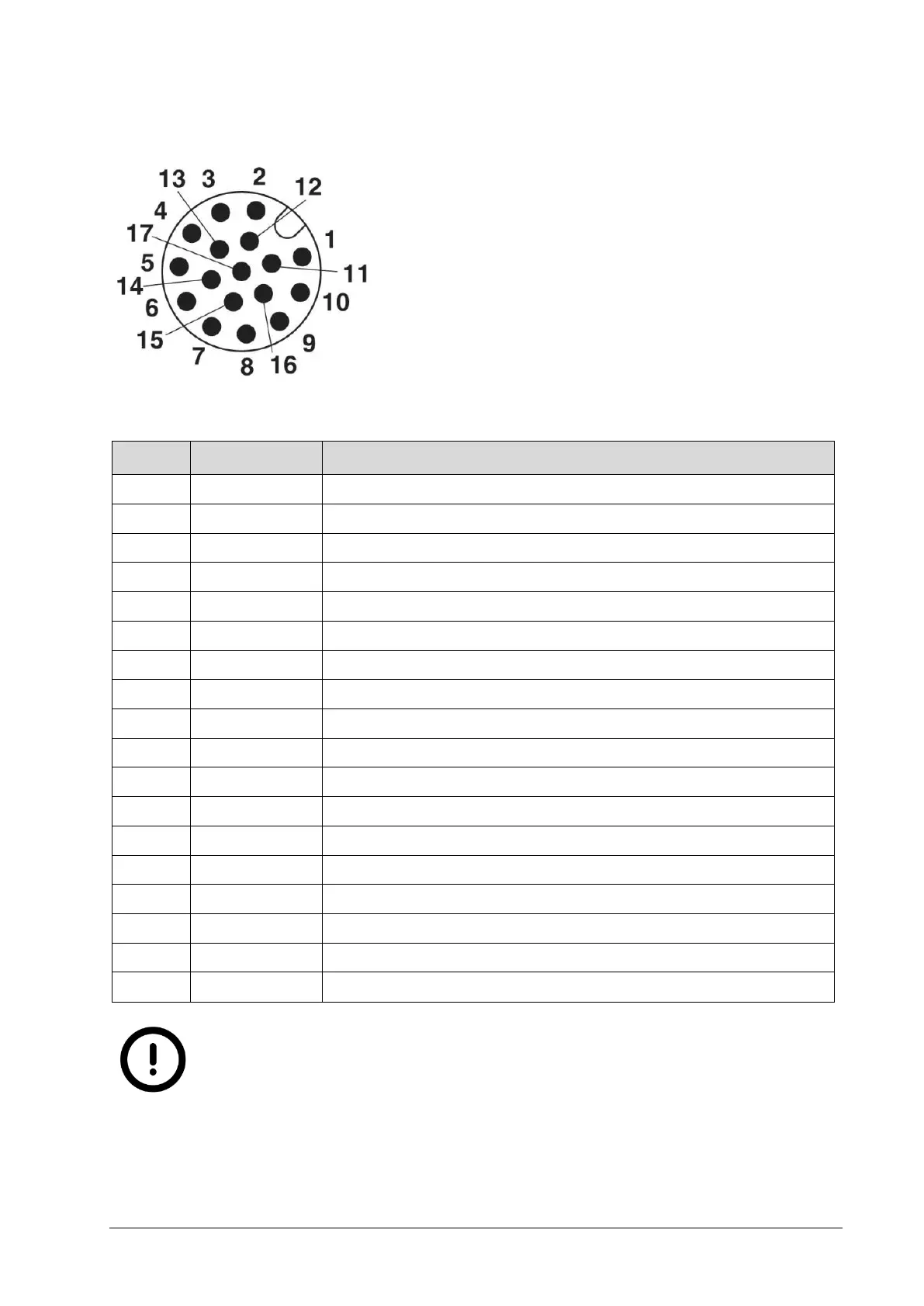

M12 I/O Male Connector Pin Assignment
Pin No.
Signal Name
Description
1
ENC_Z-
Encoder index track Z-
2
AO
Output for analog modulation of illumination device (05V DC)
3
ENC_Z+
Encoder/Resolver index track Z+
4
ENC_B+
Encoder/Resolver Track B+
5
GND
Internal camera GND for analog output (AO)
6
ENC_B-
Encoder/Resolver Track B -
7
ENC_A-
Encoder/Resolver Track A -
8
VCC_EXT
Camera supply voltage (12-24V DC)
9
GND_EXT
Camera supply ground
10
ENC_A+
Encoder/Resolver Track A+
11
ENC_GND
Encoder/Resolver ground
12
OUT2
Electrically isolated digital output 2
13
IN1
Electrically isolated digital input 1 (5-24V DC)
14
IN2
Electrically isolated digital input 2 (5-24V DC)
15
OUT_Supply
Reference supply for digital isolated outputs (5-24V DC)
16
OUT1
Electrically isolated output 1
17
IO_GND
Reference ground for digital inputs (IN1, 2) and outputs (OUT1, 2)
Shield
SHIELD
Is connected to camera case
The analog output ground is directly connected to the internal camera
ground. The analog output is NOT electrically isolated from the device
ground! Please take care for a correct operation.
