Automation Technology C5 Series - Page 73

C5 Series User Manual Rev. 1.4

71

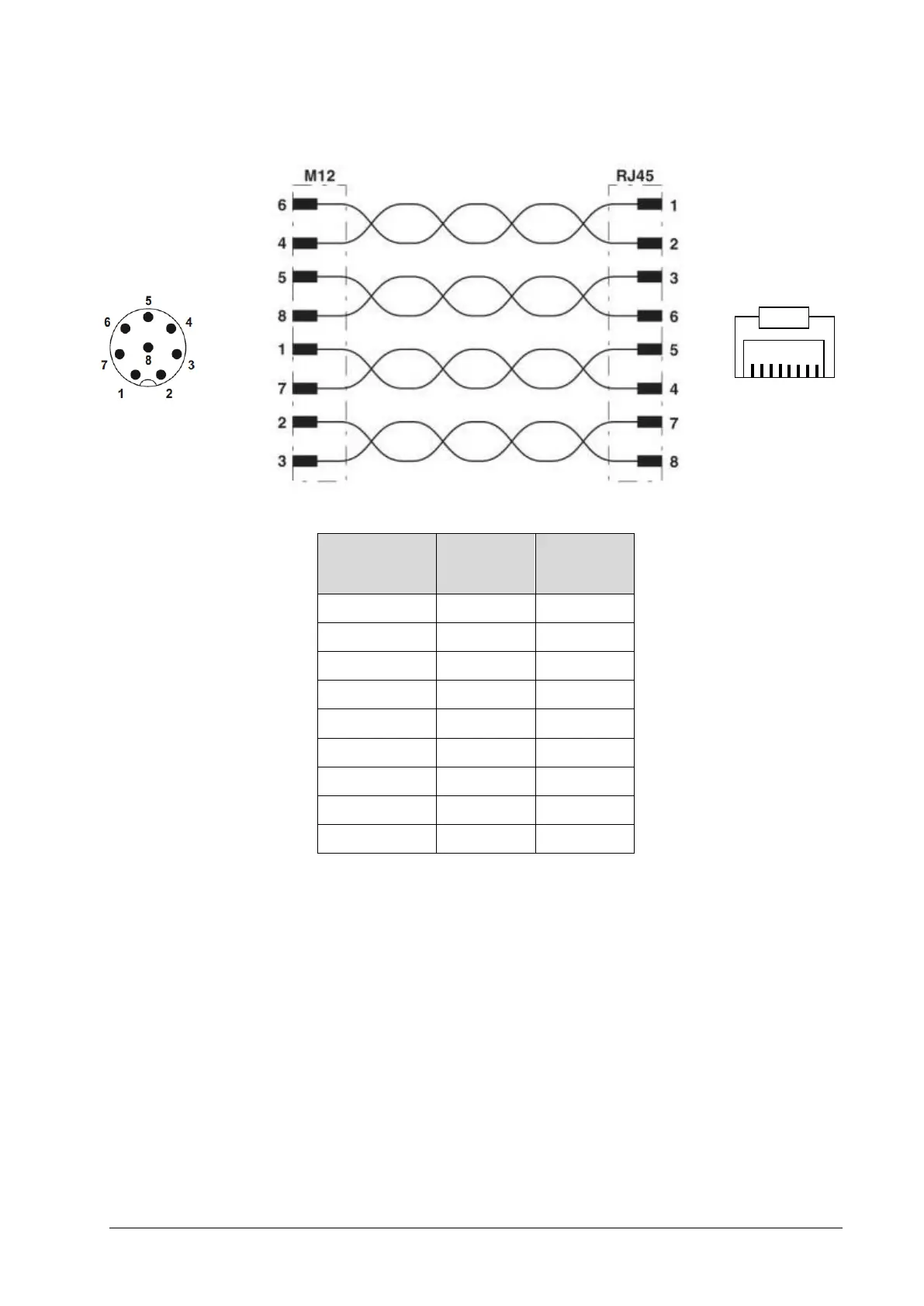

GigE Signal
Name
Pin No.
M12
Pin No.
RJ45
BI_DC-
1
5
BI_DD+
2
7
BI_DD-
3
8
BI_DA-
4
2
BI_DB+
5
3
BI_DA+
6
1
BI_DC+
7
4
BI_DB-
8
6
Shield
Shield
Shield
M12
Male Plug
1
8
RJ45
Male Plug
