33
The communication card:
»
has two switches (2 LAN 10/100/1000 ports), system (for VAS communication) and for remote connections (disconnected
during re-ghting) (1 LAN/WAN 10/100 port – congurable working mode),
» is equipped with VAS switch with AVB support,
» supports TCP/UDP/PTP/DHCP protocols,
» assigns IP addresses dynamically,
» has PoE active supply feature,
» in CPU-OFF mode. It transmits audio data via independent protocol,
» in the future it will allow using network infrastructure for other Audio-Video purposes.

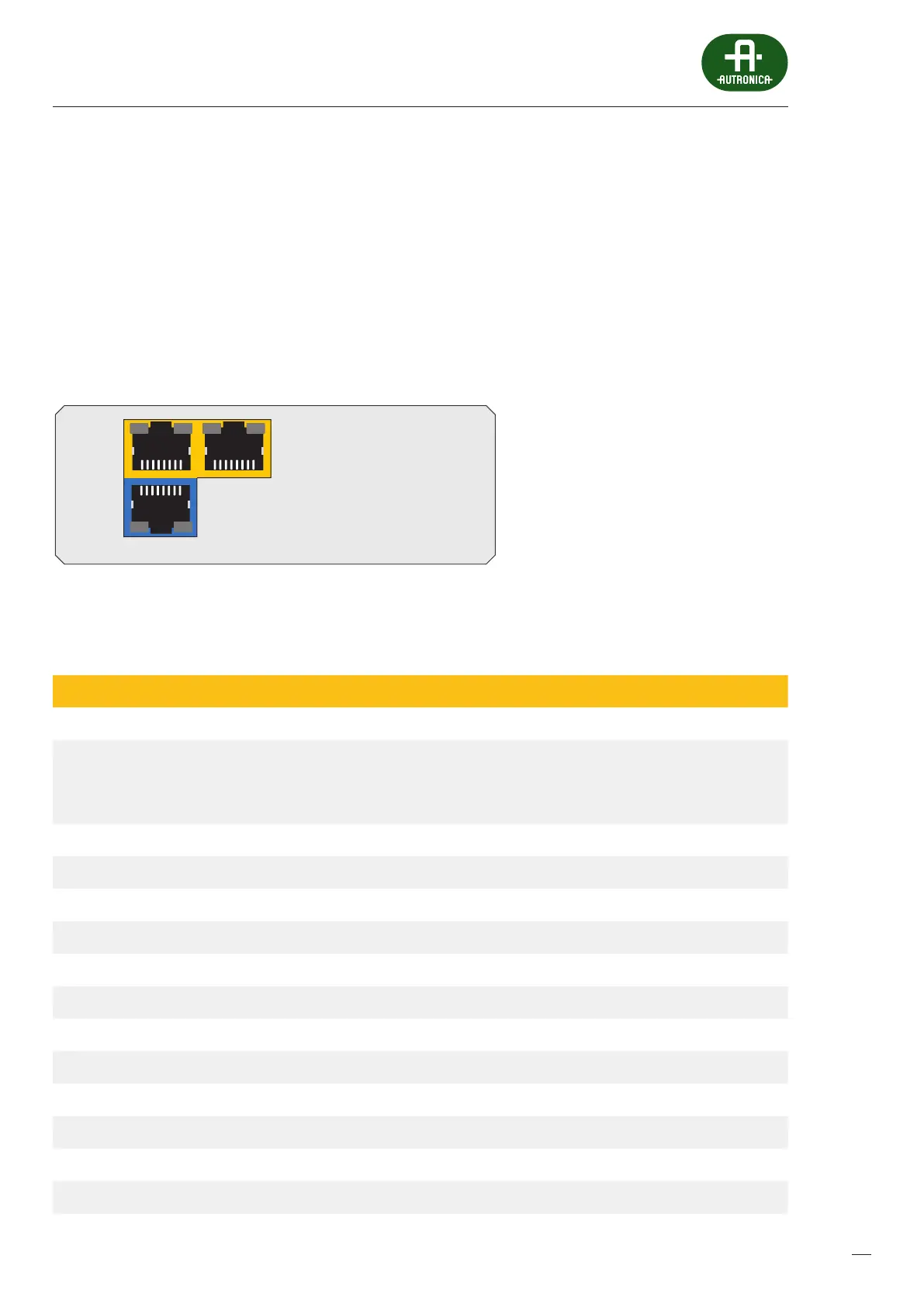

Drawing 12.
LAN/WAN
LANLAN
ABT-xNet_mini-1Gb communication card
Table 4. Technical parameters of ABT-xNET_mini-1Gb communication card
Model ABT-xNET_mini-1Gb
Source of power Control Unit main backplane
Power consumption
48V about 100mA;
Input / output / PoE extension – max. consumption 360mA,
Typical consumption depends on devices connected to the card
via RJ45 connector (PoE) max. 15W
Optical module – type of connector none
Number of logical inputs / outputs none
Source of parametric input signal Does not apply
Type of logic input / output seats Does not apply
PoE output voltage, load capacity 48V, 0,3A of load capacity
Number of RS485 connectors none
Max. length of RS485 cable Does not apply
Working temperature 0°C to +60°C
Ambient humidity during operation from 15% to 80% (without condensation)
Storage temperature -20°C to +70°C
Ambient humidity during storage from 15% to 80% (without condensation)
Dimensions 70 x 160 x 30 (mm)
