Autronica AutroVoice miniVES Series - Drawing 17. Impedance Connection; Drawing 18. Loop Connection

38
COMPACT VOICE ALARM SYSTEM
SERVICE MANUAL

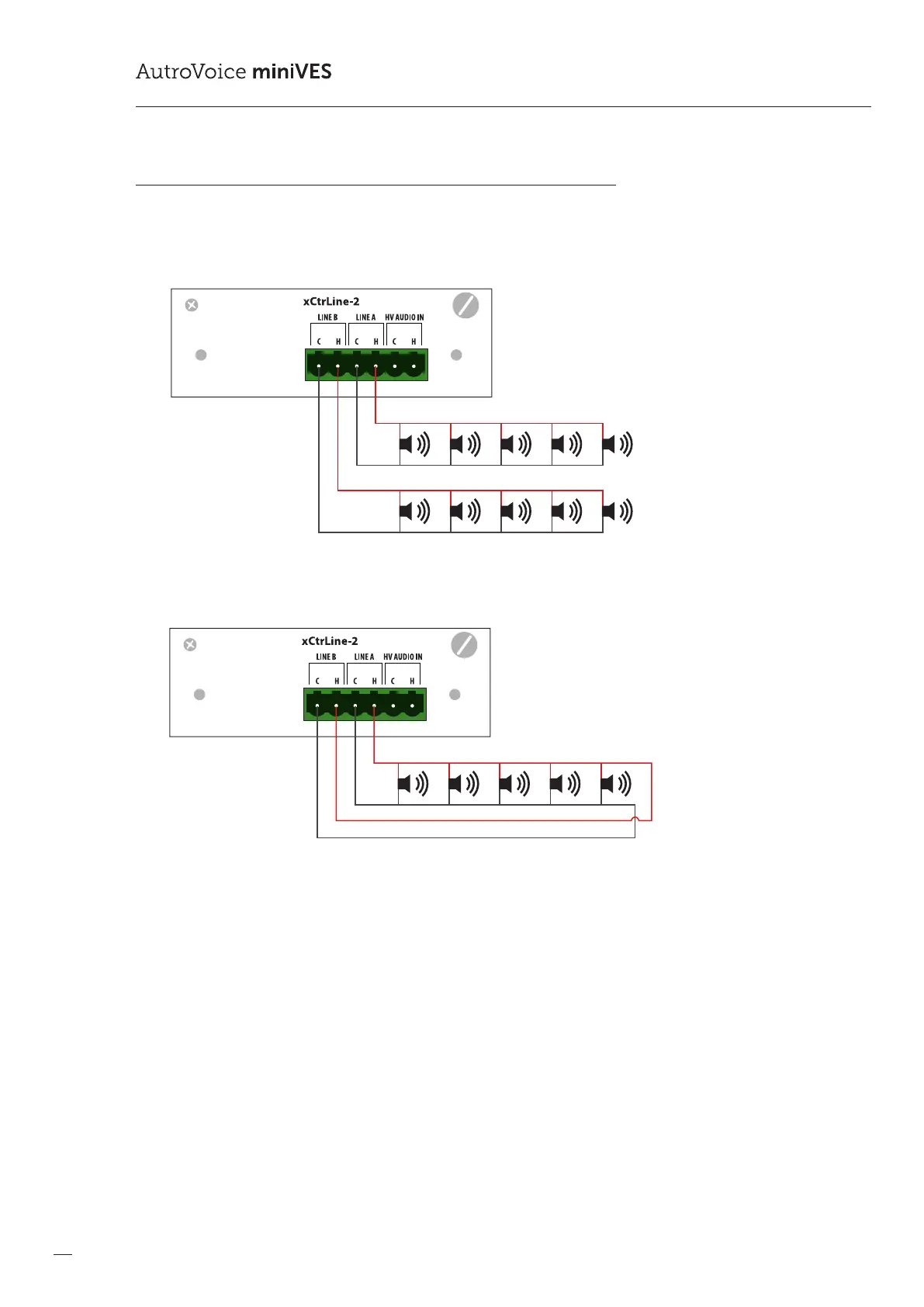

Connecting loudspeaker lines illustrated with an example of xCtrLine-2 card
You can connect loudspeaker lines by means of 3 methods: impedance, loop and ABT-EOL end-of-line module.
Drawing 17. Impedance connection
Drawing 18. Loop connection
