Autronica AutroVoice miniVES Series - Drawing 3. Front Panel of Autrovoice Minives 2001, 4001, 4002 and 2001 N, 4001 N, 4002 N Series

23
Fiber module connector
type / ber type
SFP modules / SC/LC connector
Multimode or single mode
E30 or E90, OM or OM2
Communication with PC PC software: RJ45, twisted pair connection TIA/EIA568-B via Ethernet protocol
Operating temperature 0°C / +60°C
Operating humidity 15% to 80% (non-condensing)
Storage temperature -20°C / +70°C
Storage Humidity 15% to 80% (non-condensing)
Case material and nish Steel with powdercoat nish
Dimensions 439 (W) × 531 (H) × 355 (D) mm
Mount options 4 x 12mm wall mount holes in the back of the case
Weight 24 kg
Accessories Battery cable, AC power connector, Handheld Microphone
Drawing 3.
2
3 4
1
7 8
5
6
2001

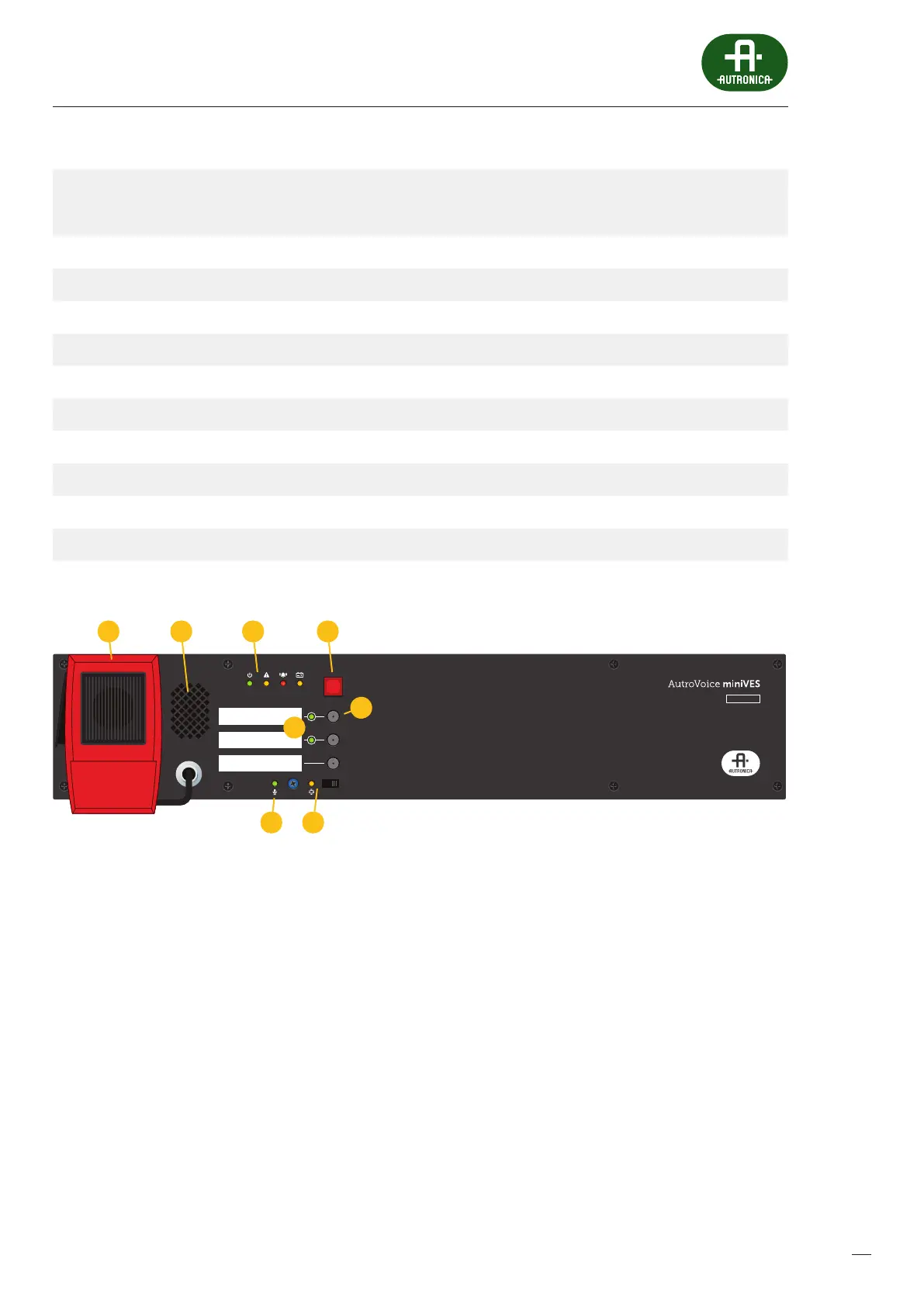

Front panel of AutroVoice miniVES 2001, 4001, 4002 and 2001N, 4001N, 4002N series
1. Handheld reman’s microphone
2. Built in speaker
3. Indicators
a. power supply indicator (green LED)
b. Failure indicator (yellow LED)
c. Emergency indicator (red LED)
d. Battery power indicator (yellow LED)
4. Emergency button
5. Congurable function buttons
6. Function button activation LEDs
7. Handheld microphone LED
8. CPU o section
a. CPU o function LED (yellow)
b. CPU o function switch
