COMPACT VOICE ALARM SYSTEM
SERVICE MANUAL

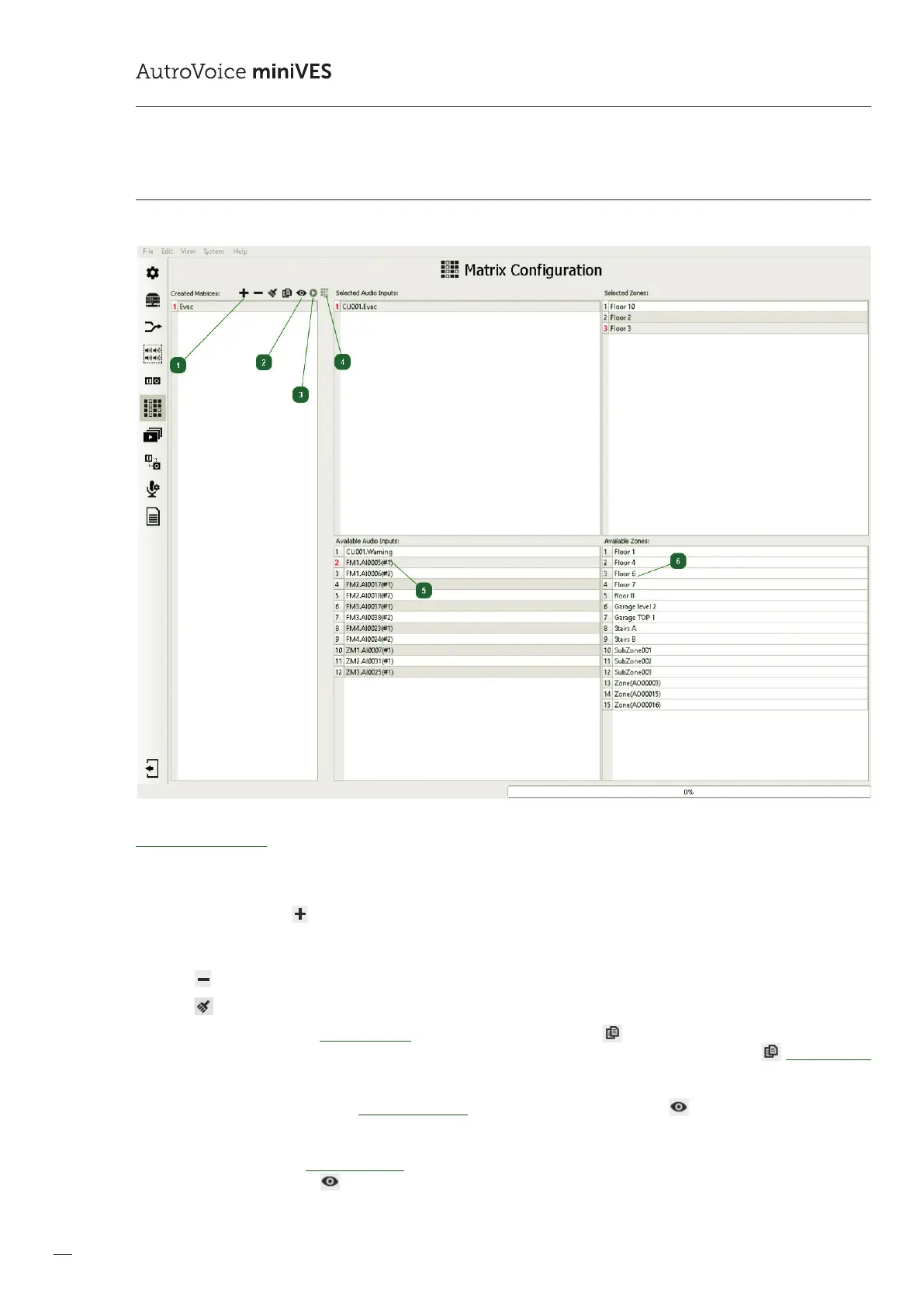

12.7 Matrix Conguration
Matrix Conguration is used to create connections of all audio sources available in the system to audio outputs.
The tab has 3 sections: creating Matrices, audio sources and speaker zones or zone group.
1
Matrix editing tab
By means of the icon , a new matrix is created with a generic name which can be change by double-clicking of the left
mouse button on the matrix name. Creating the rst matrix in the system, we activate the available audio source and
available speaker zone eld.
Icon results in deleting the marked matrix completely.
Icon deletes all previously created matrices.
Matrix cloning function: Clone Matrices – this is available under the icon . Highlight the previously created matrix by
moving the mouse cursor over its name and by clicking the left mouse button once. Then select the icon . Clone Matrices
results in creating a new matrix of the identical composition as the source matrix.
2
Matrix element graphic view: Preview Matrices – this is available under the icon . This function presents, in the
form of a graphic matrix, in one table, all created connections of audio sources to the selected matrix outputs. Moving
the mouse cursor over the matrix name and clicking the left mouse button once results in displaying the elements of
a selected matrix in the Preview Matrices table. The output from the Preview mode is executed by a single click of the left
mouse button on the icon .
