 Computer/Keyboard Controller and Camera Connection
Direct Connection

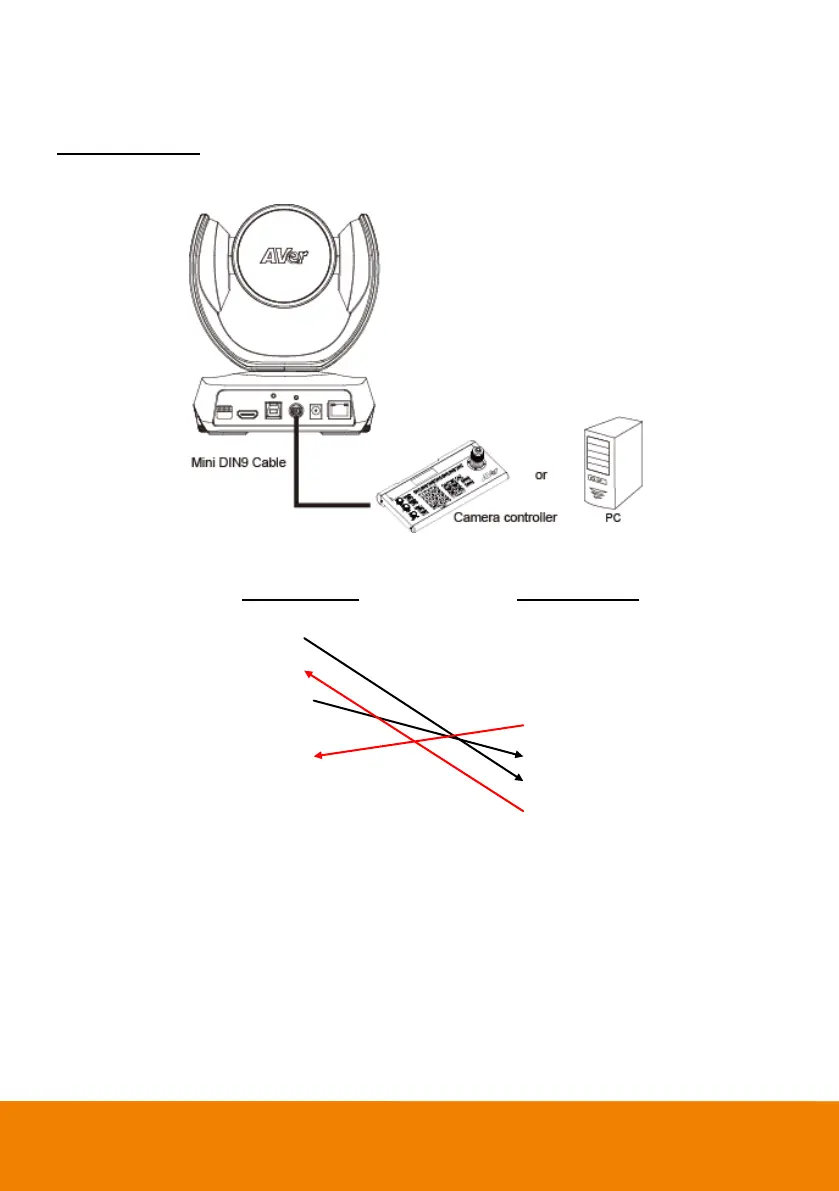

If users don’t buy AVer RS232 adaptor cable, please refer to the pin connection show n below.
Controller/PC
(DB9)
Camera
(Mini DIN9)
1. DCD
1. DTR(IN)
2. RXD
2. DSR(IN)
3. TXD
3. TXD(IN)
4. DTR
6. RXD(IN)
5. GND
7. DTR(OUT)
6. DSR
4. DSR(OUT)
7. RTS
8. TXD(OUT)
8. CTX
9. RXD(OUT)
9. RI
