11

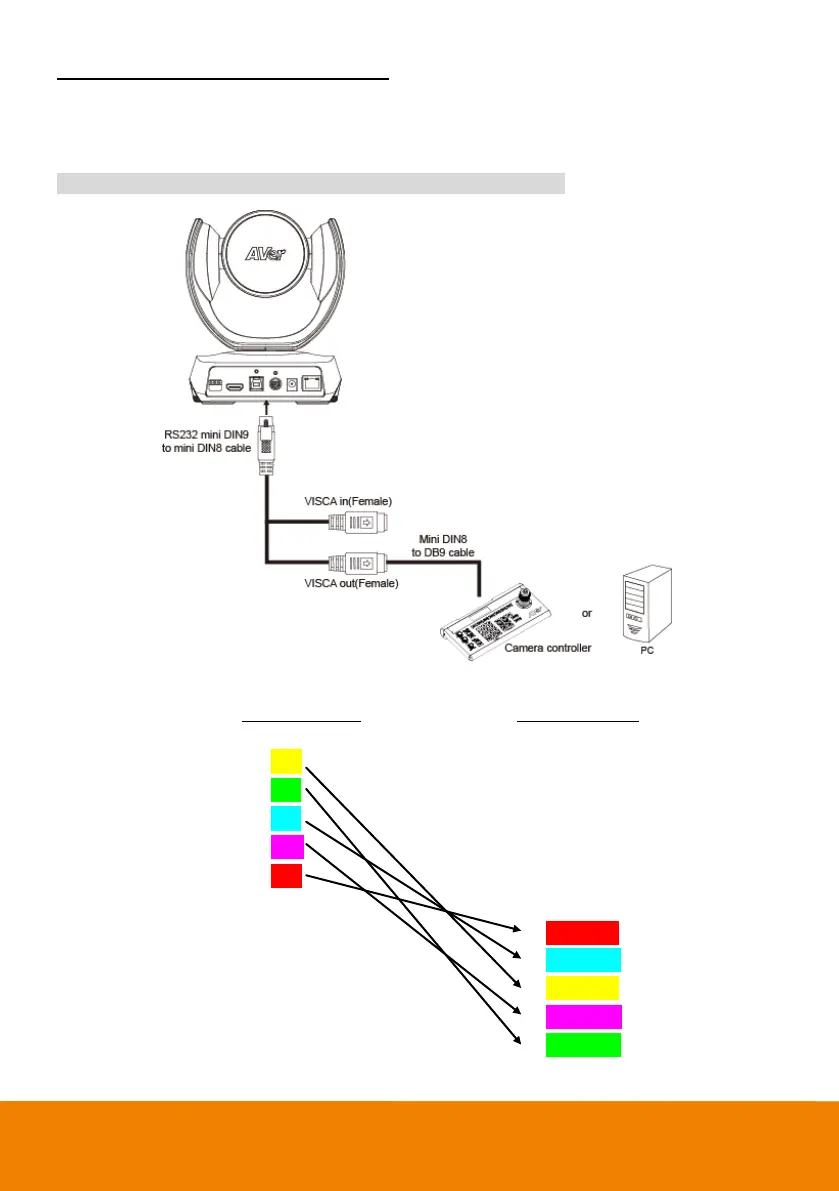

Use the RS232 mini DIN9 to mini DIN8 cable (included with CAM520 Pro(POE) SKU, otherw ise sold
separately).
Users can purchase AVer RS232 min DIN9 to mini DIN8 adaptor cable* to connect w ith Computer or
keyboard/controller.
* RS232 (mini DIN9 to mini DIN8) adaptor cable (PN: 064AOTHERCDC)
Controller/PC
(DB9)
Camera
(Mini DIN8)
1. DCD
1. DTR(IN)
2. RXD
2. DSR(IN)
3. TXD
3. TXD(IN)
4. DTR
4. GND(IN)
5. GND
5. RXD(IN)
6. DSR
6. GND(IN)
7. RTS
8. CTX
1. DTR(OUT)
9. RI
2. DSR(OUT)
3. TXD(OUT)
4. GND(OUT)
5. RXD(OUT)
6. GND(OUT)
