E1070 Service Manual 13

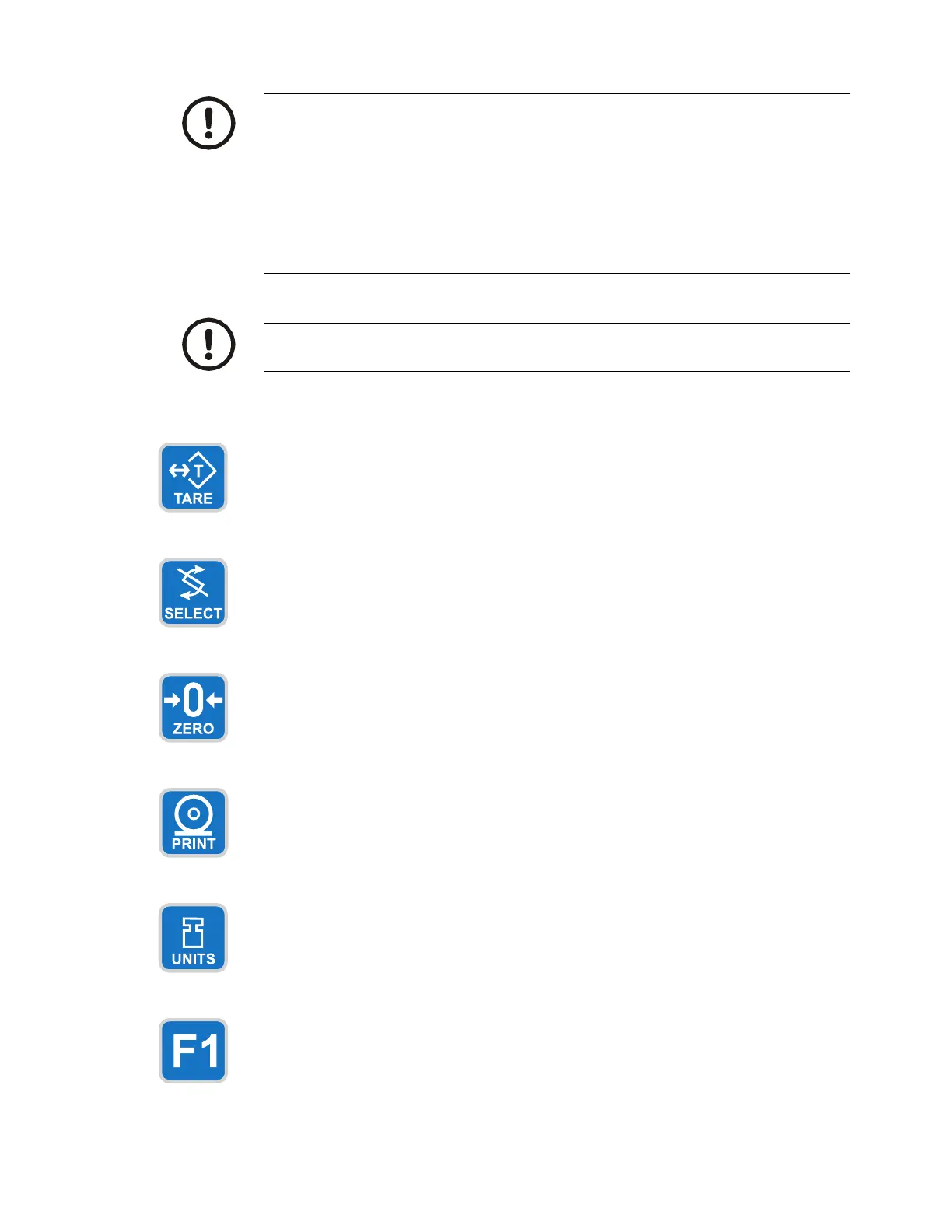

2.1 Front Panel
IMPORTANT: Plug the Model E1070 into properly grounded socket-outlet of the
correct voltage, installed near the equipment and easily accessible. Never use the
unit without an appropriate earthground connection.
Any computer based system should have a separate, grounded power circuit. We
recommend one for the Model E1070.
See the System Block Diagram or Main Board Assembly pages in the technical
illustrations at the back of this manual for wiring instructions.
Never press a key with anything but your finger. Damage to the overlay may result if
sharp or rough objects are used.
Press the TARE key to perform a tare function. Also acts as a left arrow key when in the menu
structure.
Press the SELECT key to toggle between Gross, Tare, Net, Count, Gross Accumulator, Net
Accumulator, Transaction Counter, Piece Weight, and Peak. Dependent on the current application.
Press and hold to access the cutoffs (trips) menu. Also acts as an up arrow key when in the menu
structure.
Press the ZERO key to zero the display.
Press the PRINT key to send information to a peripheral device through one of the Comm ports.
Also acts as a down arrow key when in the menu structure.
Press the UNITS key to scroll through the available units of measure while in normal operating
mode. Also acts as a right arrow key when in the menu structure.
Press the F1 key to select application specific choices. Also used to access PLU memory channels.
