Avery Weigh-Tronix evolution Series Service Manual

160 E1070 Service Manual

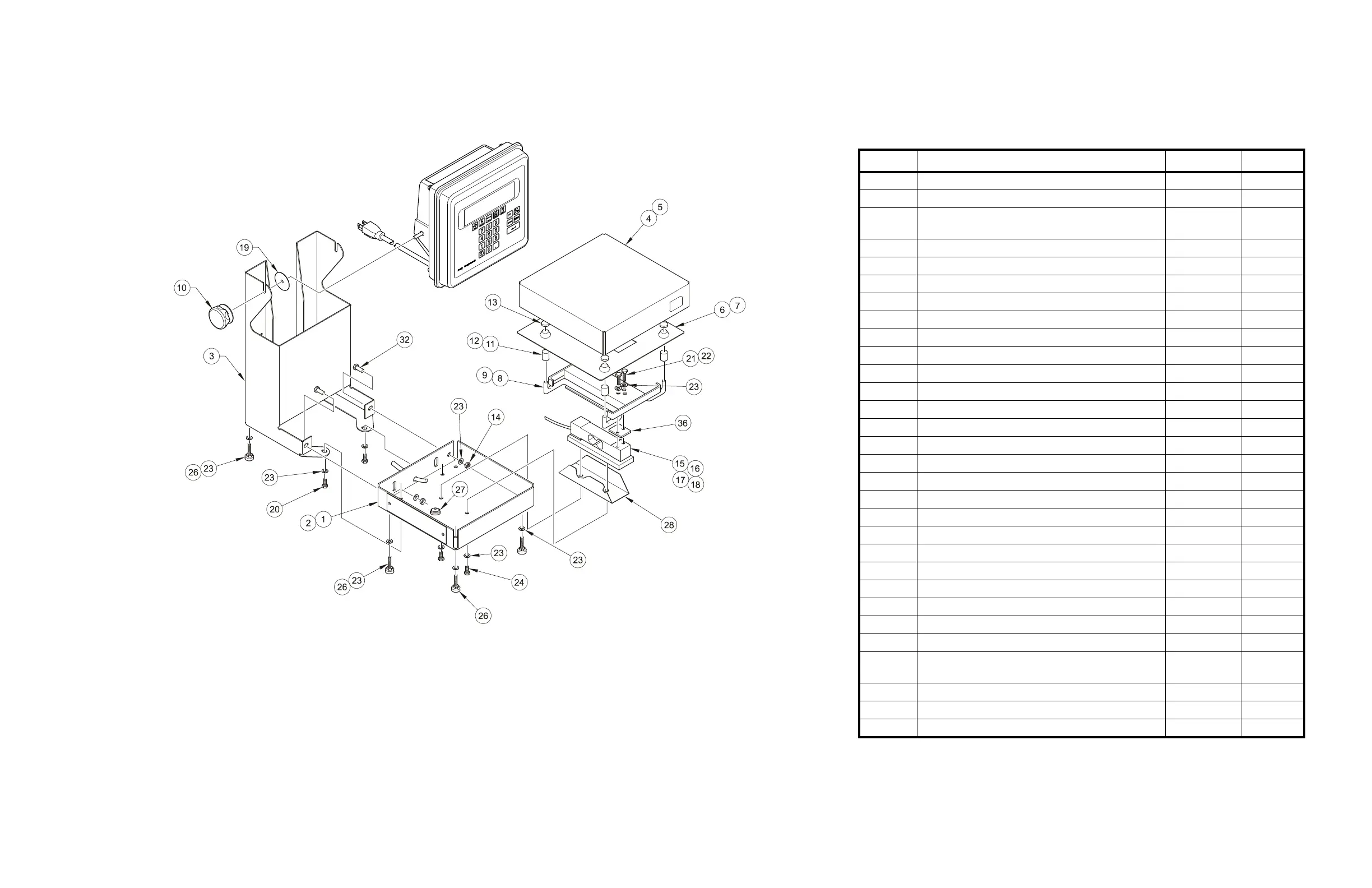

11.10 Model E1070 Checkweigher (Low Capacity)
6 lb. and 12 lb Capacity w/8” x 8” base
30 lb, 60 lb, and 100 lb Capacity w/12” x 14” Base
* Replaces old MK21 load cell. Includes MK29 splash guard.
ITEM NO. DESCRIPTION W-T P/N QTY
1 Base, 8" x 8" 1071-08063 1
2 Base, 12" x 14" 1071-08356 1
3 Display Column, 14”
Optional Display Column, 20”
57151-0163
57151-0171
1
1
4 Shroud, 8" x 8" 1076-09428 1
5 Shroud, 12" x 14" 1076-08357 1
6 Support Plate (8" x 8" base) 1069-08070 1
7 Support Plate (12" x 14" base) 1069-01899 1
8 Load Bridge Assy (8" x 8" base) 7066-08064 1
9 Load Bridge Assy (12" x 14" base) 7066-08353 1
10 Plastic Knob, M6 68718-147 2
11 Bumper Support (8" x 8" base) 1075-00243 4
12 Bumper Support (12" x 14" base) 7075-00027 4
13 Pad 1075-00262 5
14 Nut, .25" x 20 14497-0209 2
*15 MK29 Load Cell Kit, 71/2 & 15 lb (7 kg) cap. 53240-0017 1
*16 MK29 Load Cell Kit, 30 lb (15 kg) cap. 53240-0025 1
*17 MK29 Load Cell Kit, 60 lb (30 kg) cap. 53240-0033 1
*18 MK29 Load Cell Kit, 100 lb (60 kg) cap. 53240-0041 1
19 Friction Washer 65127-515 2
20 Capscrew, .25"-20 x .50" L 14527-0013 2
21 Capscrew, .25"-20 x .75" L 1007-02611 2
22 Capscrew, .25"-20 x 1.00" L 14527-0054 2
23 Lockwasher, .25" 14474-0198 12
24 Capscrew, .25"-28 x .50" L 1007-02668 2
26 Foot Assy w/ Jamnut 7029-00150 4
27 Level Bubble 1083-00095 1
28 Splash Guard (for old MK21 version load cells)
Splash Guard (for MK29 load cells)
1067-12694
53238-0011
1
1
32 Capscrew, .25”-20 x .62” L 14527-0021 2
36 Spacer 53236-0013 1
37 Indicator Wall Mount Bracket (not shown) 56132-0011 1
