E1070 Service Manual 47
3.4 Service Menu
10. Press the ESC key to exit the Service menu…
SAvE is displayed.
11. Press ENTER to save your changes or press ESC to abort any changes made
in the Service menu…
buSY flashes until the indicator returns to normal operation mode.
This completes the APP menu.
3.4.4 Extra Info: Print Format Editing
The first three numbers are the sequence of the print commands. The last two
characters are the hexadecimal number for the print command.
Use the keys as described in Figure 3.6 to scroll through the sequence and change the
hex. character value.

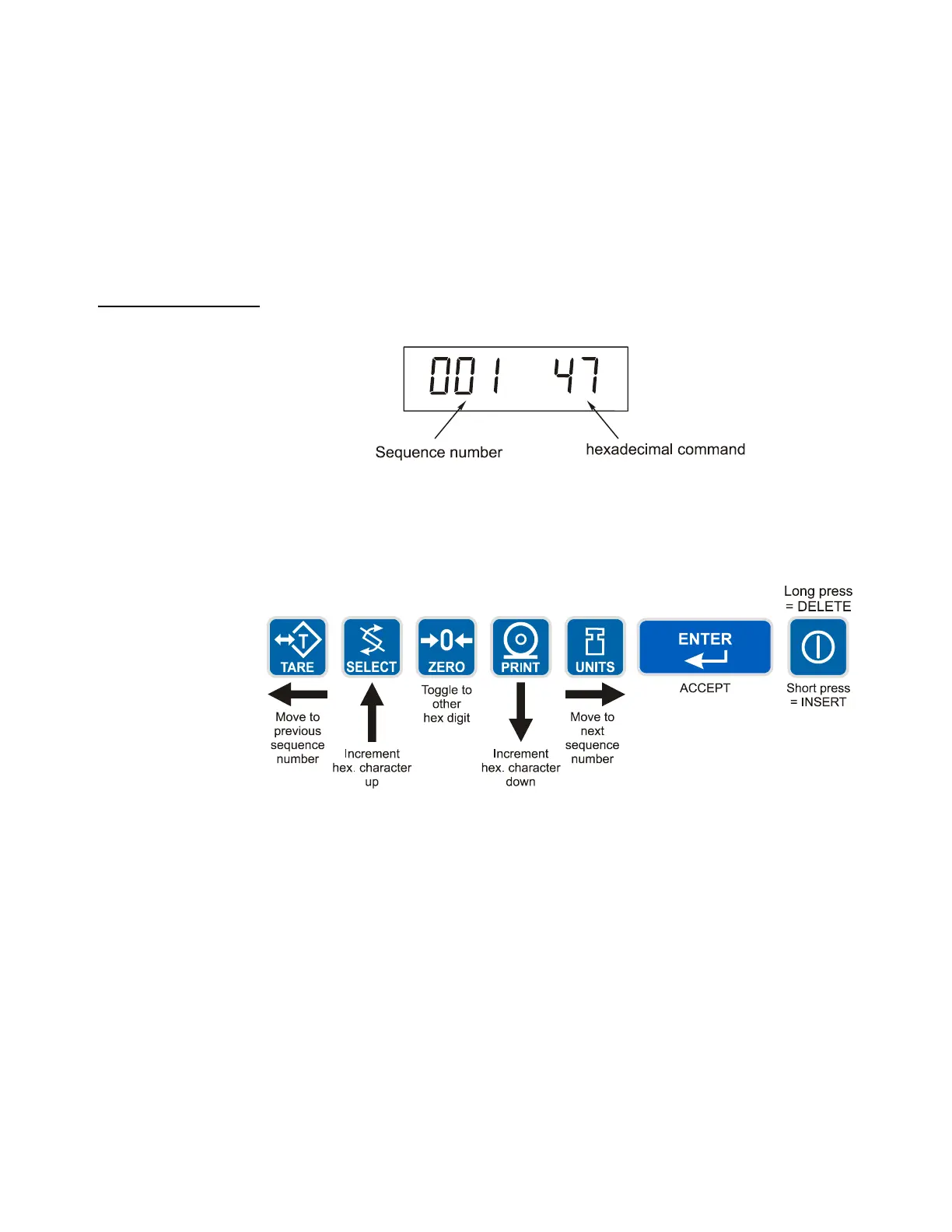

Figure 3.6 Key legend for hex editing
TARE moves to the previous sequence number
SELECT increments hex character up
ZERO Toggles between first and second hex digit
PRINT decrements hex character down
UNITS moves right through the print string
ENTER Accepts print string and exits edit mode
ON/OFF A short key press inserts a new character in front of the displayed
character. Press and hold to delete the currently displayed hex
character.
