E1070 Service Manual 151

11 E1070 Technical Illustrations

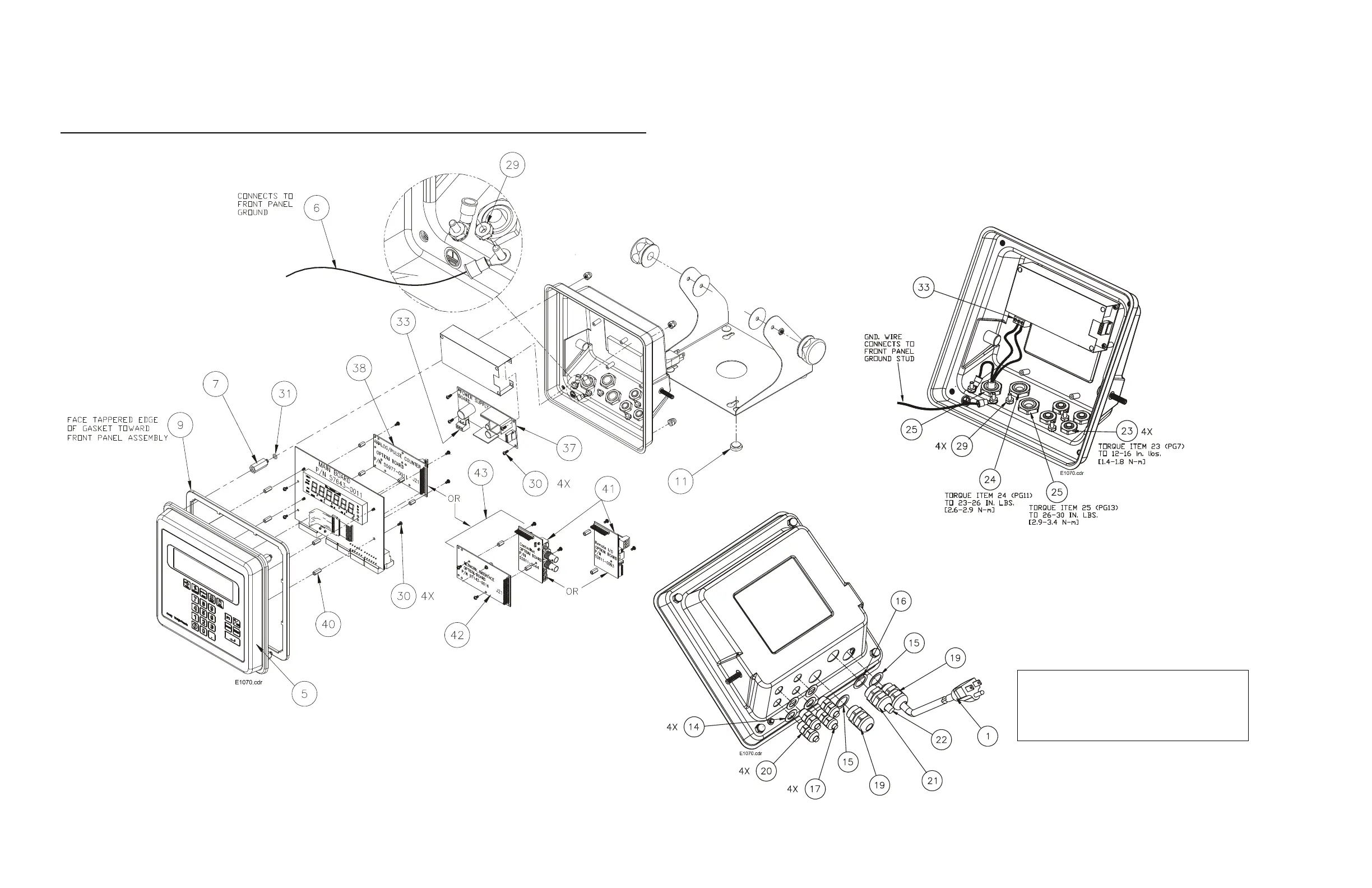

11.1 Enclosure Parts and Assembly

Note: tighten the strain relief “gland sealing

nuts” for Item 20 to 8-10 in.lbs. [0.9-1.1 N·m].

Item 19 and Item 21 tighten to 18-22 in. lbs.,

[2.0-2.5 N·m].

(SEE PARTS LIST NEXT PAGE)

NOTE TORQUE SPEC:

M6 Acorn Nuts (items 12 and 28) torque in a corner-to-corner pattern,

first to 26 in. lbs.[2.9 N·m], and then to 44 in. lbs. [5.0 N·m].

All other M6 fasteners- 20.0 in. lbs., [2.3 N·m]

All M3 fasteners- 3.5 in. lbs., [0.4 N·m]
