20 E1070 Service Manual
3 Using the Menus
3.3 User Menu
The User menu lets you test various functions of the indicator. The User menu is shown
in Figure 3.1.

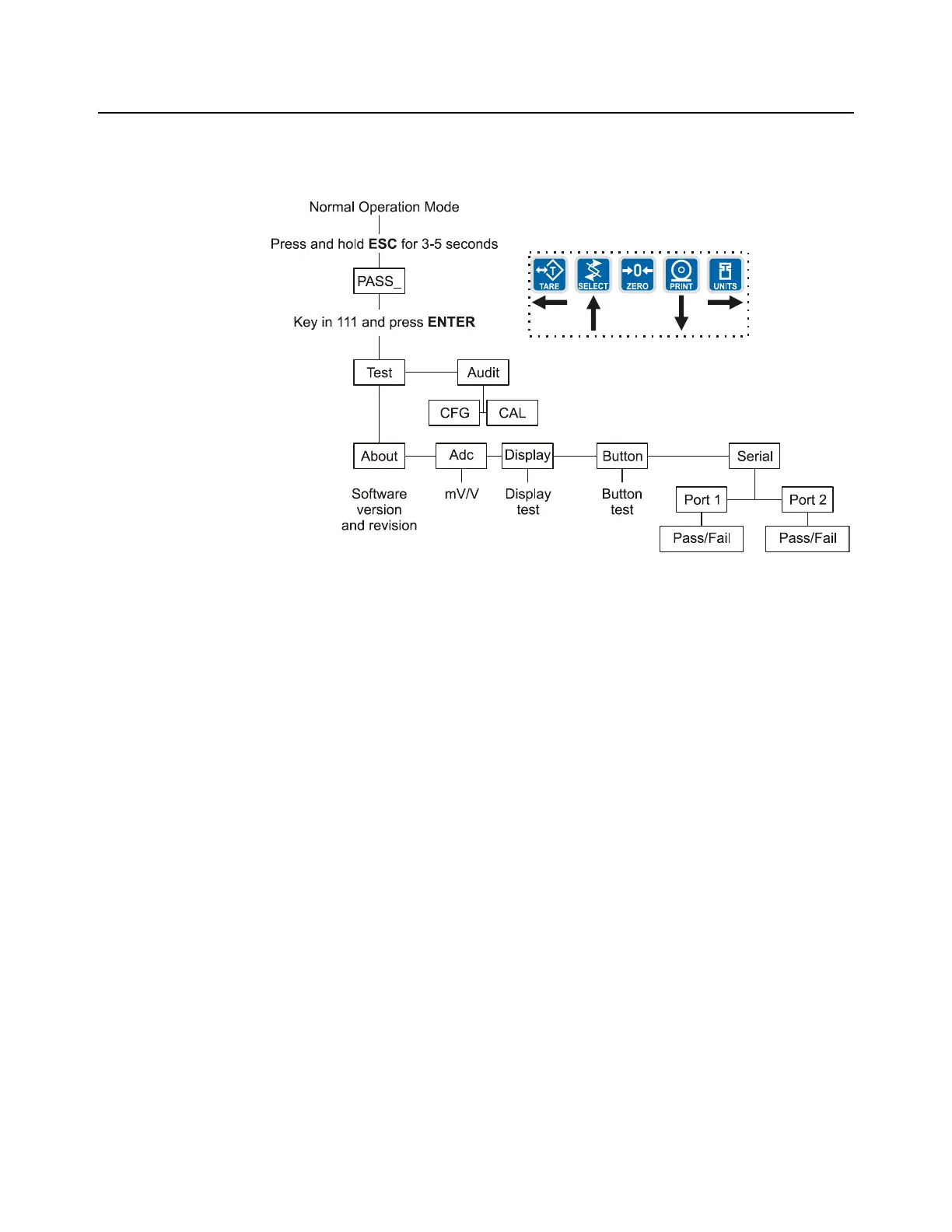

Figure 3.1 User menu flowchart
Following are specific instructions for the User menu.
1. Access the User menu by pressing and holding the ESC key for 3-5 seconds.
PASS_ is displayed.
2. Key in the User menu password (111) and press ENTER.
tESt is displayed.
3. Press the PRINT key.
About is displayed. Press the PRINT key then the UNITS key repeatedly
to view the part number and revision level for the software found in your
indicator.
Press SELECT key to return to About.
4. Press the UNITS key…
Adc is displayed. This is the calibrated mV/V output of the connected
analog scale.
5. Press the PRINT key…
The mV/V value coming into the indicator is displayed. This should
change as weight on the scale changes. Press the ZERO key to zero the
mV/V reading prior to diagnostics.
6. Press the SELECT…
Adc is displayed.
