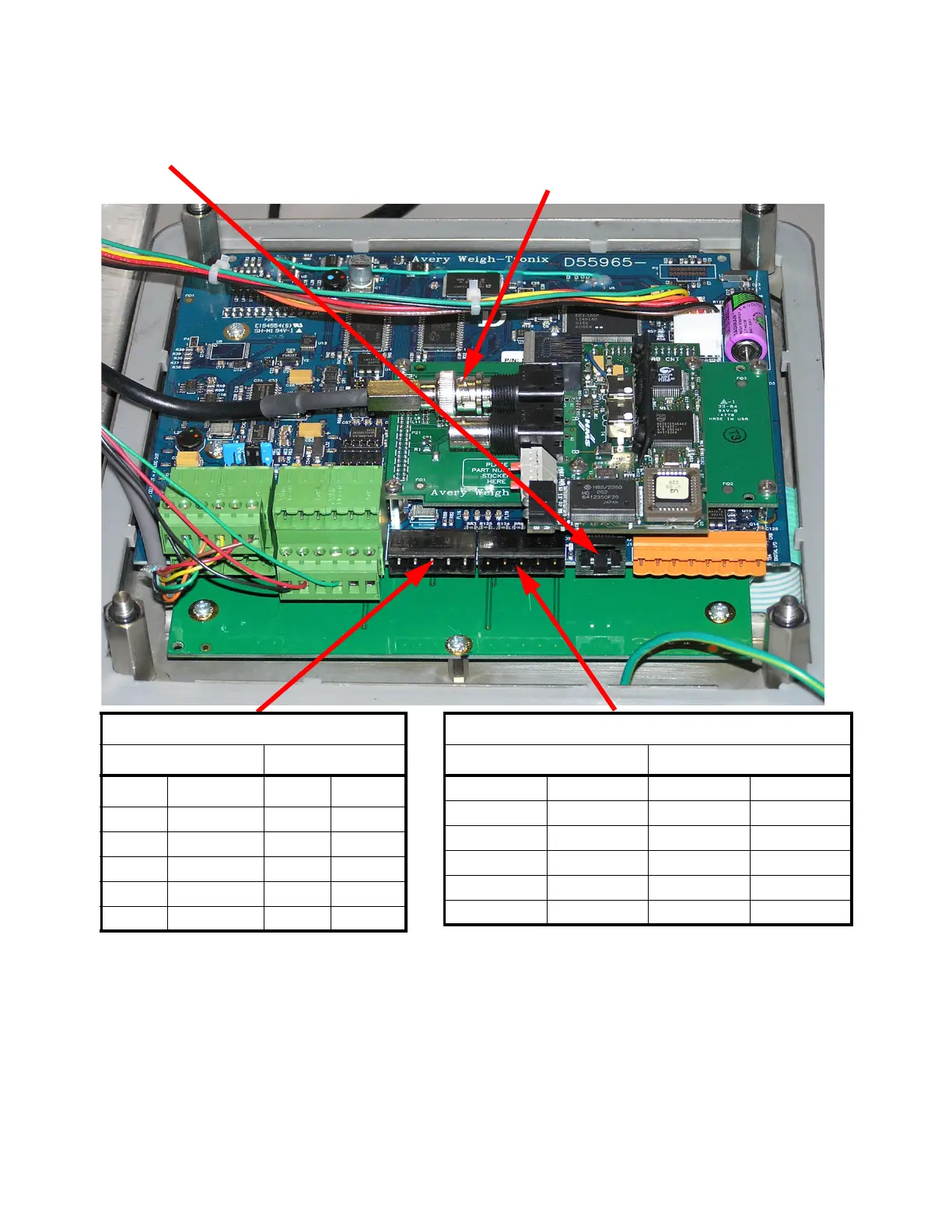

BNC bayonet connector for ControlNet
interface when option card is installed. Be
sure to use 50 ohm termination resistor on
network. (Connector A)
RJ-45 connector for Ethernet 10/100
interface
PROFIBUS-DP
DB9 - Female Rear Panel
Pin No. Signal Pin No. Signal
6 +5.0@100mA 1 +5.0 Vdc
5 Ground 2 Ground
8 -Tx/Rx 3 -Signal
3 +Tx/Rx 4 +Signal
Housing Shield 5 Shield
DeviceNet
Network Bus Rear Panel
Pin No. Signal Pin No. Signal
1V-Bus Power1 V -
2CAN LOW2 CAN -
3 Shield 3 Shield
4CAN HI4 CAN +
5 V + (24Vdc)* 5 V +
*An external power supply will be used to supply V+ power.
Typically this supply will be previously installed.
