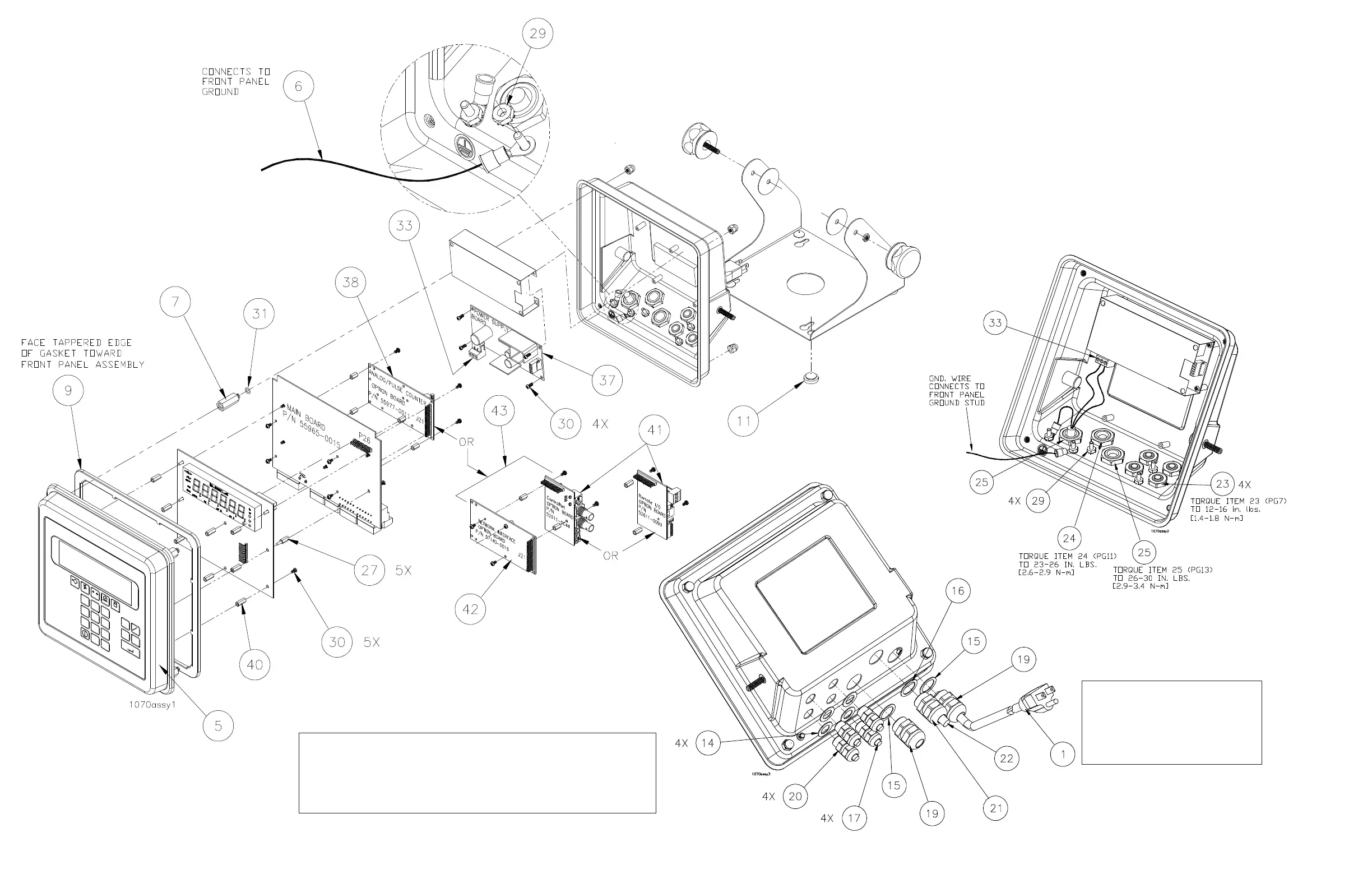

MODEL E1070 SST INDICATOR
ENCLOSURE PARTS AND ASSEMBLY
(SEE PARTS LIST NEXT PAGE)
Note: tighten the strain relief “gland
sealing nuts” for
Item 20 (thread type
“PG7”) to 8-10 in.lbs. [0.9-1.1 N·m].
Item 19 (“PG 13”) and Item 21 (“PG
11”) tighten to 18-22 in. lbs., [2.0-2.5
N·m].
NOTE TORQUE SPEC:
M6 Acorn Nuts (items 12 and 28) torque in a corner-to-corner
pattern, first to 26 in. lbs.[2.9 N·m], and then to 44 in. lbs. [5.0 N·m].
All other M6 fasteners- 20.0 in. lbs., [2.3 N·m]
All M3 fasteners- 3.5 in. lbs., [0.4 N·m]
(SEE PARTS LIST NEXT PAGE)
