121
ITEM
NO. DESCRIPTION W-T P/N QTY
1 AC Power Cord Assembly (110-240VAC, USA) 49180-0017mts 1
AC Power Cord Assembly (110-240VAC, UK) 49180-0025mts 1
2 Display/Keypad Board Assembly 55969-0029 1
3 Main Board assembly 55965-0015 1
4 Cable Assy (power supply board-to-main board) 56848-0016 1
5 Front Enclosure Ass’y, E1070, (incl: keypad overlay,
front
encl., display window, adhesive backing) 57043-0017 1
6 Ground Wire Assembly (front panel-to-rear panel) 48712-0024 1
7 Standoff, Hex, M6 x 1.06” [27.00mm] long, M/F 56126-0019 4
8 Indicator Stand 56132-0011 1
9 Enclosure Gasket 56133-0010* 1
10 Rear Enclosure 56137-0016 1
11 Rubber Foot 56138-0015 4
12 Acorn Sealing Nut, M6 56844-0010 1
13 Insulator Cover (power supply board) 56866-0013 1
14 Neoprene Washer 26357-0046 4
15 Neoprene Washer 26357-0053 2
16 Neoprene Washer 26357-0038 1
17 Neoprene Plug, .250” [6.35mm] dia. (cut as needed) 27429-0014 .5 ft.
18 -NO PART- - - - - - - - -
19 Strain Relief, M16, (Hummel) 55177-0043 2
20 Strain Relief, (Hummel) 55177-0019 4
21 Strain Relief, (Hummel) 55177-0035 1
22 Neoprene Plug, .354” [9mm] dia 27429-1095 .12 ft.
23 Locking Nut 55177-1017 4
24 Locking Nut 55177-1033 1
25 Locking Nut 55177-1041 2
26 Nyloc Nut, M6 13821-648 1
27 Standoff, M3 x .472” [12mm] long, M/F 60078-1128 4
28 Acorn Nut, M6 54008-0058 3
29 Nut w/ External Lock Washer, M4 54011-0038 6
30 Screw, M3 x 6mm 60084-0631 12
31 O-Ring 60062-1015 4
32 Plastic Knob, M6 68718-147 2
33 Terminal Block, 3-pin (CON1, power supply bd.) 60043-1027 1
34 Terminal Block, 5-pin (TB3,TB5, main bd.) 60043-1043 2
35 Terminal Block, 6-pin (TB1,TB2, main bd.) 60043-1050 4
36 Terminal Block, 8-pin (TB4, main bd.) 60043-1076 1
37 Power Supply Board 60071-0016 1
38 Analog/Pulse PC Bd. Field Installation Kit, (option)
(Option incl. all necesssary mounting hardware) 57315-0018 1
39 Friction Washer 65127-515 2
40 Standoff, M3 x .492” [12.5 mm] long, F/F 375100312 8
41 ControlNet PC Board (optional) 52611-0044 1
Remote I/O PC Board (optional) 52611-0093 1
42 Network Interface Board (optional),(use w/item 41) 57143-0016 1
43 ControlNet FIeld Installation Kit (optional), (kit incl:
item 41 and item 42 and mtg. hardware) 57315-0034 1
Remote I/O Field Installation Kit (optional), (kit incl:
item 41 and item 42 and mtg. hardware) 57315-0059 1
44 Set Screw, M6 x 30mm L 13818-257 2
45 Lock-Tite, Red (not shown) 15566-0012 1

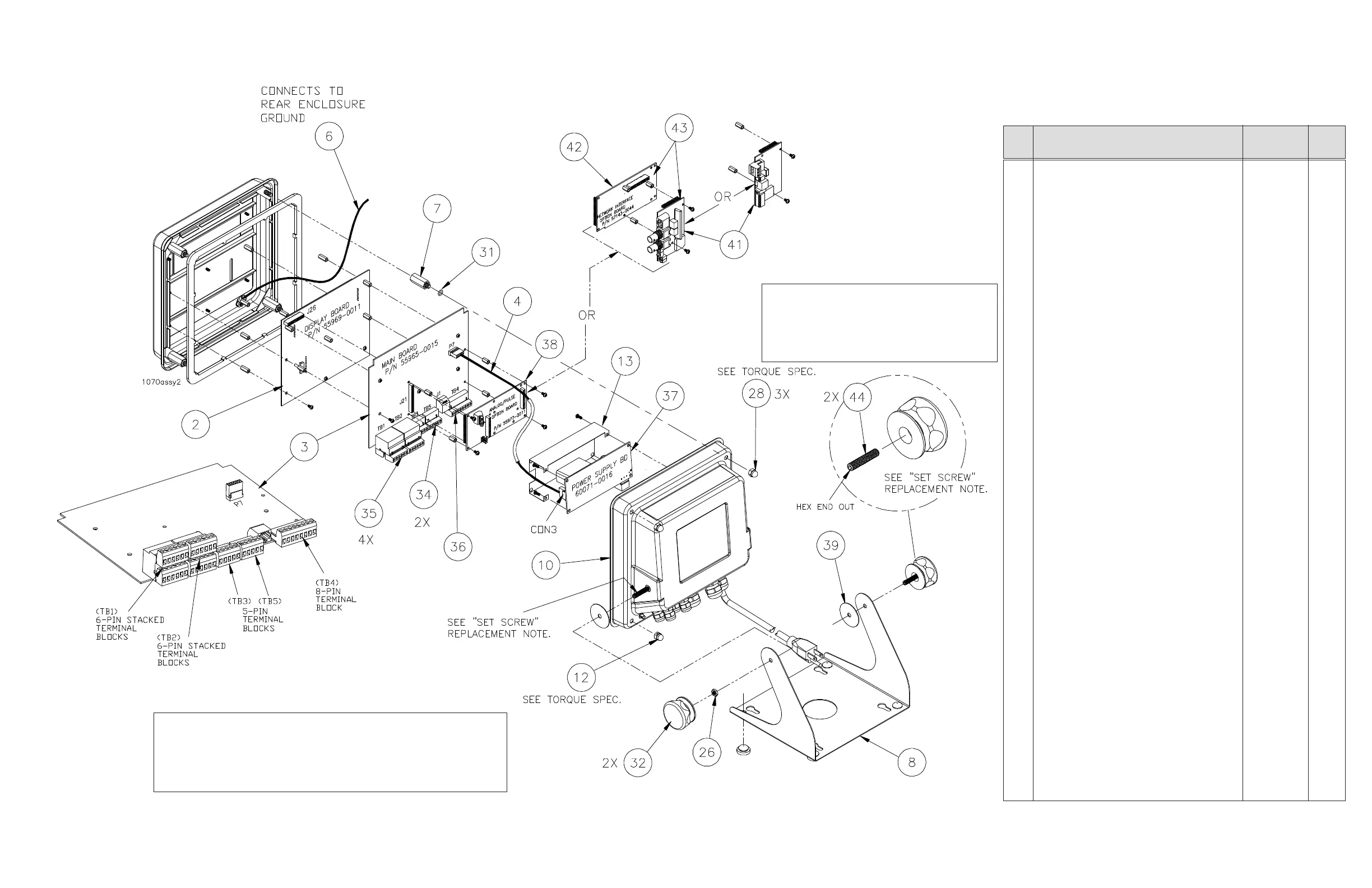

MODEL E1070 SST INDICATOR
ENCLOSURE PARTS AND ASSEMBLY
(CONTINUED FROM PREVIOUS PAGE)
NOTE TORQUE SPEC:
M6 Acorn Nuts (items 12 and 28) torque in a corner-to-corner
pattern, first to 26 in. lbs. [2.9 N·m], and then to 44 in. lbs. [5.0 N·m].
All other M6 fasteners- 20.0 in. lbs., [2.3 N·m]
All M3 fasteners- 3.5 in. lbs., [0.4 N·m]
SET SCREW REPLACEMENT
Apply “Lock-Tite (red)” (item 45) to thread end opposite of the hex
socket end. Using a 3mm hex wrench, thread set screw into the
knob on “ side shown” (Ref. illustration below) until snug. Repeat
this procedure to replace set screw into indicator housing(not
the knob) for opposite side as shown.
*Part number 57042-0018 may be substituted for part number
56133-0010, depending on availability.
To Next Page
