Model E1070 Indicator Service Manual
1. With R-DISP displayed, press the PRINT key. . .
Current setting is displayed. Use this item to choose what style of
output you want for this indicator as a master indicator going to a
remote display. Choices are RD4100, RDAPP1, RDAPP2,
RDAPP3 and RDAPP4.
RD4100 Select this to emulate output to an RD-4100. You can
pick a print format to be sent to the remote display. If
you pick format #0 a default G XXXXXX lb format will
be sent.
RDAPP1 Select this to send G XXXXXX lb
RDAPP2 Select this to send the same as RDAPP1 + annuncia-
tors
RDAPP3 Select this to send the same as RDAPP1 + will accept
the keys presses from the remote (TARE, SELECT,
ZERO, PRINT, UNITS)
RDAPP4 Select this to send the same as RDAPP2 + accepts
the keys presses from the remote (TARE, SELECT,
ZERO, PRINT, UNITS)

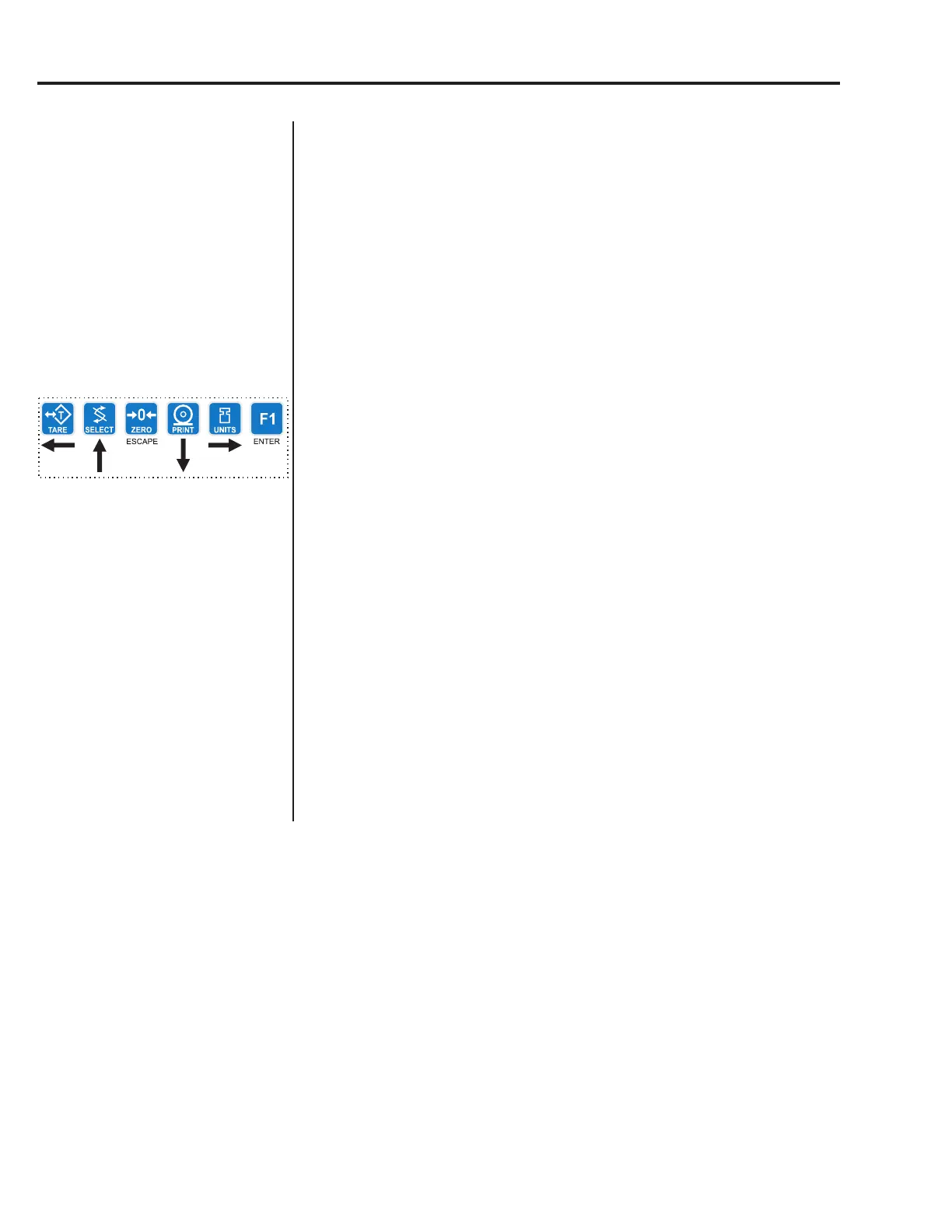

2. Scroll through the choices using the TARE or UNITS key. Press the
ENTER key when your choice is displayed. . .
Current update rate is displayed. Choices are 1/sec, 2/sec, 5/sec,
and 10/sec. This is the update rate
3. Scroll through the choices using the TARE or UNITS key. Press the
ENTER key when your choice is displayed. . .
If you chose RD4100: PFTX is displayed. The X stands for the
current print format setting. Press the
ENTER key to accept this format or key in
a new format or formats and press the
ENTER key to accept.
Otherwise: R-DISP is displayed.
R-DISP
