Avidsen ORANE-CONNECT - Between the Panels and the Fixed Parts Close to each Other

EN11EN 10
C - INSTALLATION
Hazard Solution
swing swing swing
view in profile
50mm
minimum
5mm
maximum
hazardous zone

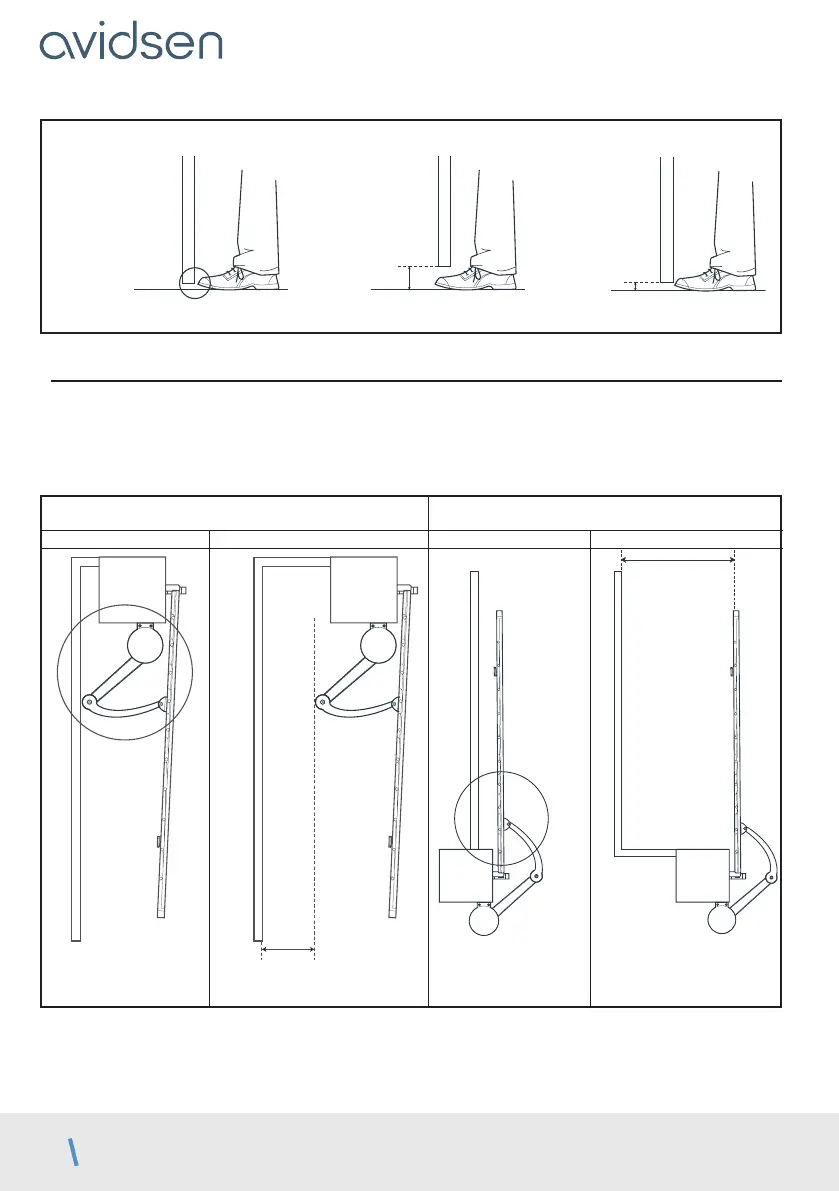

2.3. Between the panels and the fixed parts close to each other
Depending on the configuration of the site where the motorised gate is installed, there may be confinement
areas between the panels in open position and the fixed parts close to them. To remove these areas, it is
mandatory to leave a safe distance of 500mm between the fixed part and the moving parts of the motorised
gate.
For opening towards the outsideFor opening towards the inside
500mm
min.
500mm min
postpost
post post
view from above view from aboveview from aboveview from above
Solution SolutionHazard Hazard
confine-
ment
area
confinement
area
