Avidsen ORANE-CONNECT - Control Parts (Optional); Backup Battery (Optional)

EN35EN 34
C - INSTALLATION

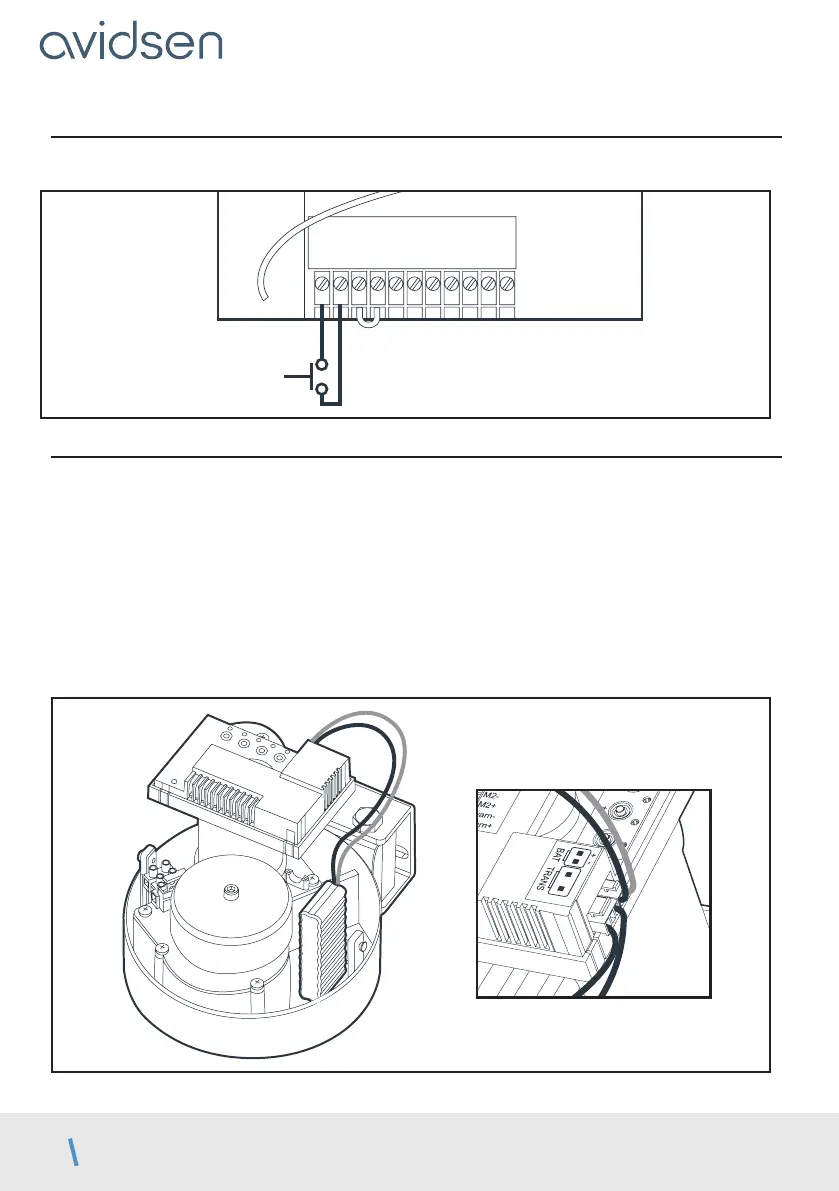

6.5 - Control parts (optional)
Note: These control parts must be normally open dry contacts.
push button, intercom
output.
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
6.6 - Backup battery (optional)
Note: when the motor is running on the backup battery, the connected module is not working.
It is possible to connect a backup battery to perform some manoeuvres in the event of power failure.
• Type of battery: NiMH
• Battery voltage: 24V
• Configuration: 20xAAA / 800mAh
• Use the connection cable supplied in the kit to connect the battery. Cut unnecessary terminals and use an
insulating screw joint to connect the battery wires to this connecting cable.
• Observe the connection polarity (red on + and black on -)
• After connecting the battery, it will charge for up to 48H.
PROG
OK
L0
L1
L2
L3
L4
