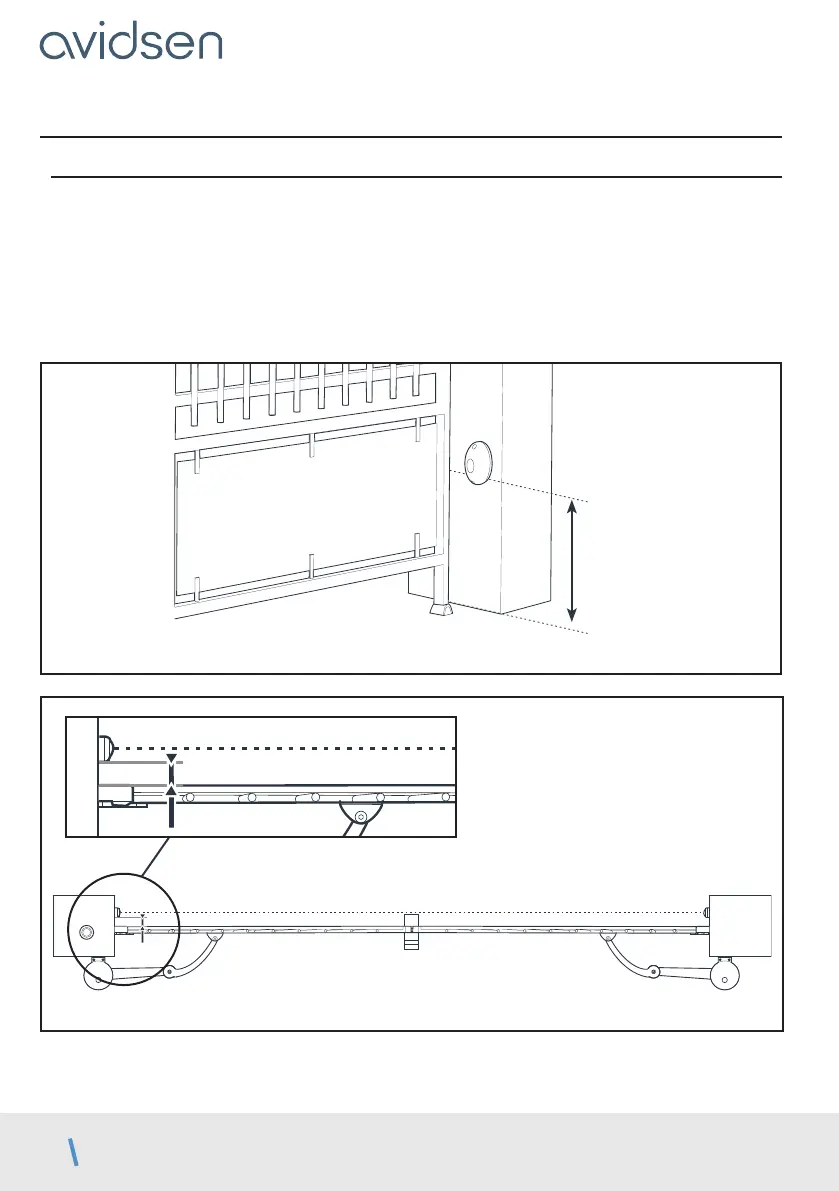

5. ATTACHING THE SET OF PHOTOCELLS
5.1 - Opening inwards
1 set of photocells
• Install the reception photocell (RX indicated on the back) on the motor post containing the electronic card.
The surface of the posts must be perfectly flat in order to properly align the infrared beam of the photocells.
• Place the photocells at exactly the same height from the ground; they must be perfectly aligned and parallel
to each other.
The distance between the outer side of the gate and the photocells must be between 10cm and 15cm.
• Mount the photocells on the posts.
Outer side of the property
30cm min
60cm max
View from above
Inner side of the property
Perfect alignment
10 cm min
15 cm max
C - INSTALLATION
