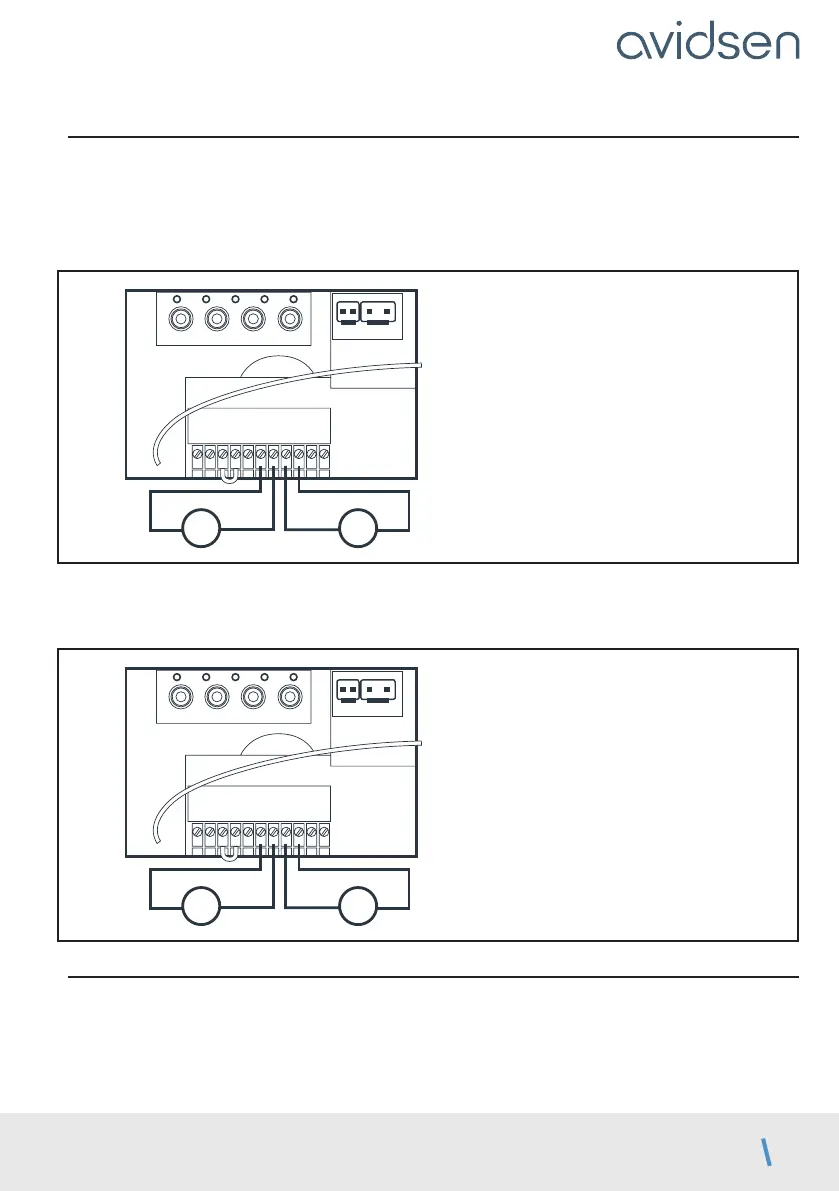

6.2 - Motors
For motor wiring without the electronic card, use a 2x1.5mm² cable and an insulating screw joint placed in the
motor. Run the cable through the cable clamp and tighten
• For inward opening with the motor mounted on the left post OR
• For outward opening with the motor mounted on the right post (view from inside)
L0
PROG
OK
+
-
L1 L2 L3 L4
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
M2M1
Black
Red
The motor that opens first must be
connected to the M1 output of the
electronic card.
Black
Red
• For outward opening with the motor mounted on the left post (view from inside) OR
• For inward opening with the motor mounted on the right post
L0
PROG
OK
+
-
L1 L2 L3 L4
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
M2M1
Black
Red
The motor that opens first must be
connected to the M1 output of the
electronic card.
Black Red
6.3 - Flashing light
• Connect the flashing light wires to the terminal block as shown in the diagram below and reconnect the
terminal block.
• Use a 2x0.5mm² section cable, at least.
• Maintain the connection polarity
