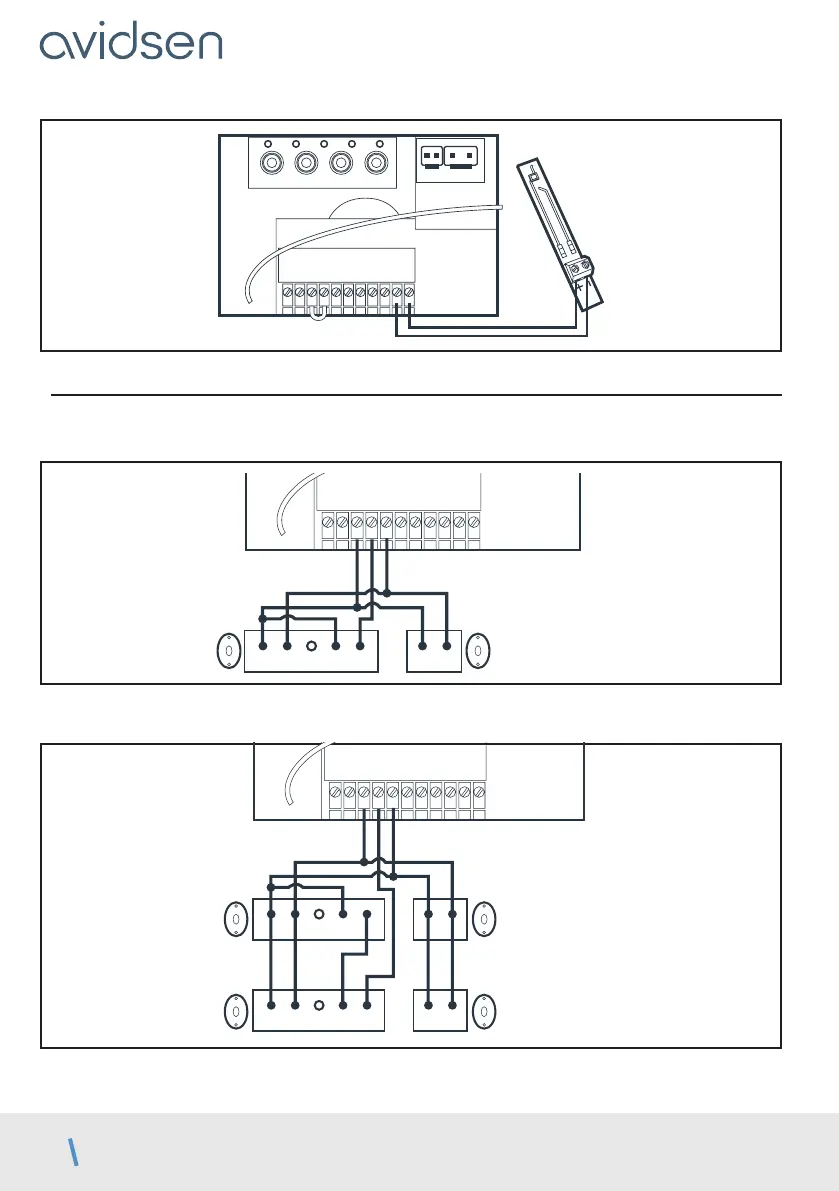

6.4 - Photocells
• If there are no photocells, leave the connector between GND and PHO.
• With one set of photocells, remove the connector between GND and PHO.
photocell RX1 photocell TX1
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
~- ~+ ~+~-NO COMNC
• With 2 sets of photocells, remove the connector between GND and PHO
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
~- ~+ ~+~-NO COMNC
~- ~+ ~+~-NO COMNC
photocell RX1 photocell TX1
photocell RX2 photocell TX1
