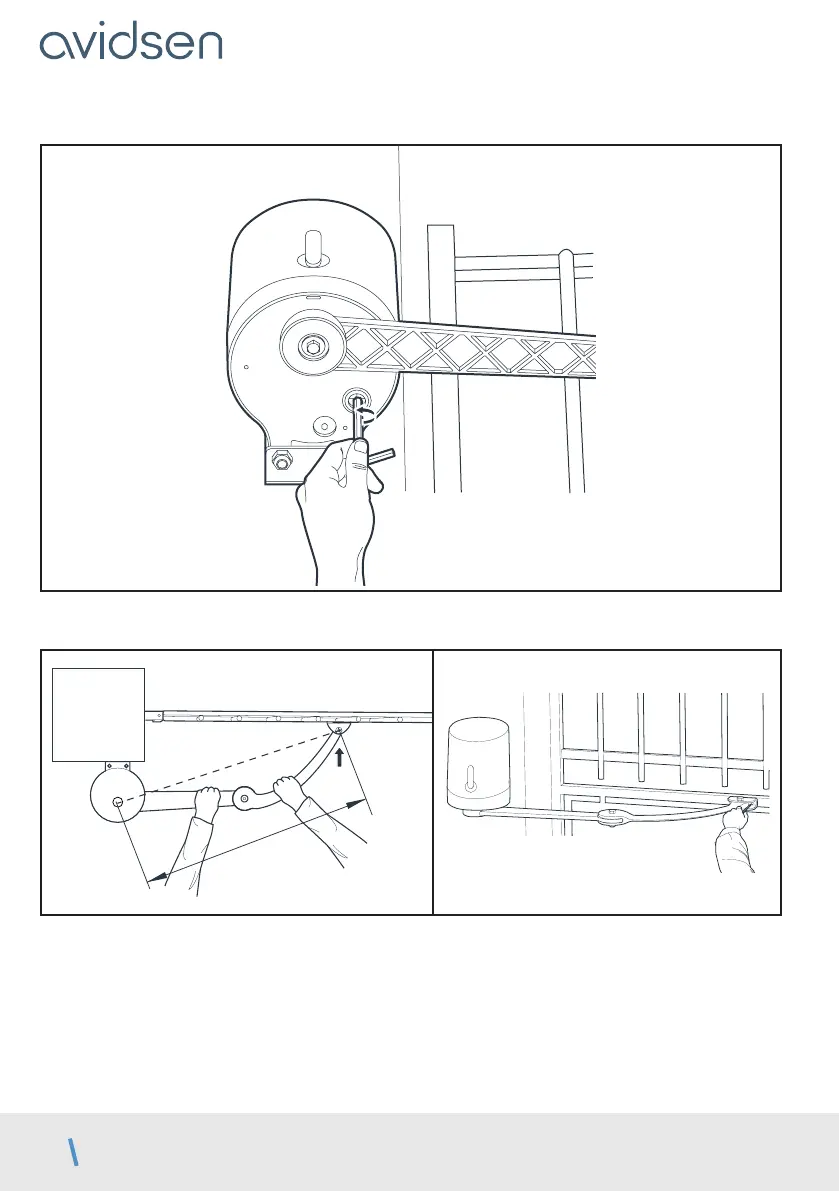

• Motor disengagement
• Disengage the motors in order to manually manoeuvre the arms.
75 cm
• Close the gate by pressing it firmly against the central stop.
• Position the pivoting arms against the gate at a distance of 75cm and mark the location of the holes on the
gate.
Important: The ends of the right arms should be at the middle of the rigid part of the gate so that
the pivoting arms are completely horizontal.
C - INSTALLATION
