Entry/exithardware

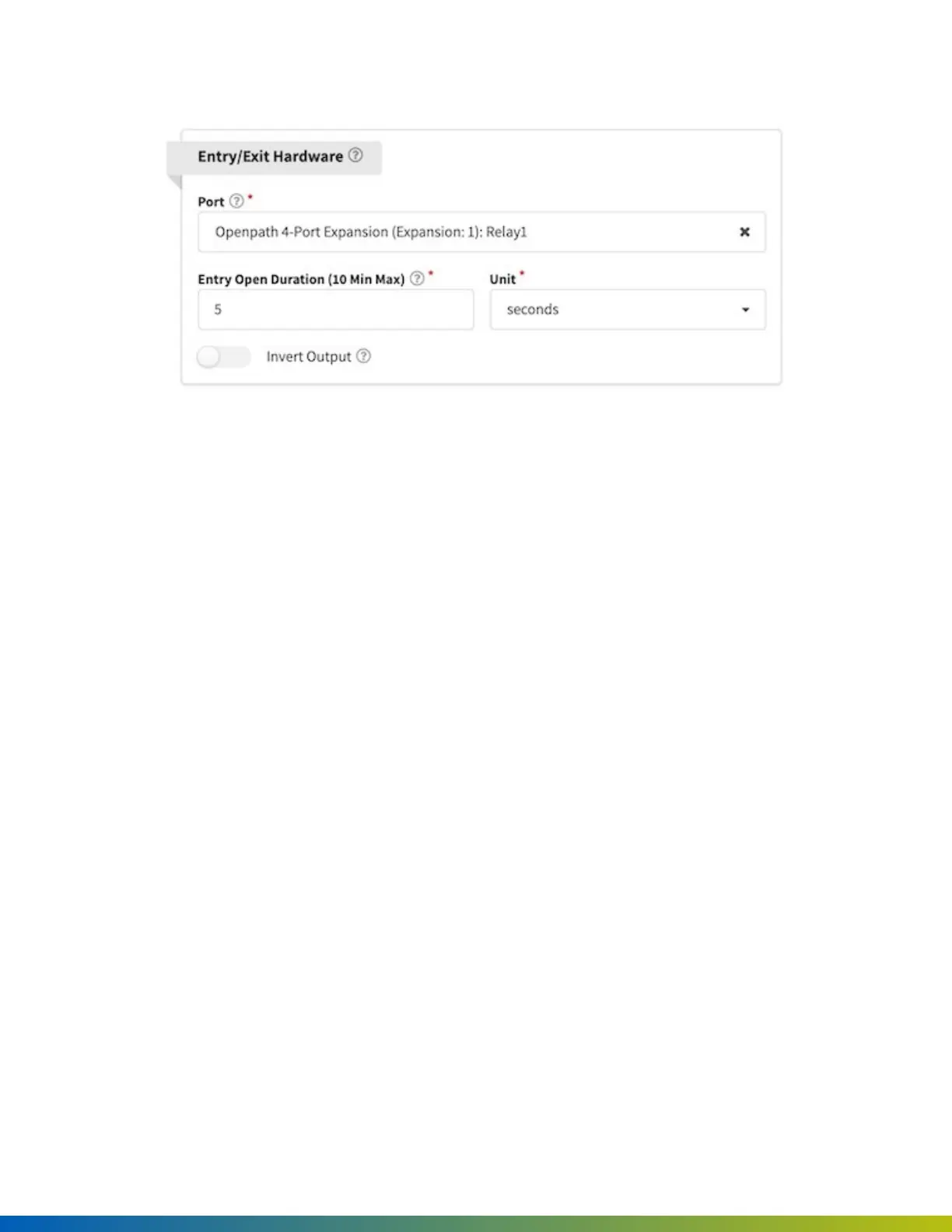

Figure5Entry/ExitHardware
Entry/ExitHardwareiswhereyoucanselectarelaytouseontheACU(orexpansionboard),likeforcontrolling
electricstrikesormaglocks.
l
Port—selectwhichporttoassignthereader,fromRelay1-4.Technically,theelectricstrikeiswiredto
oneofthe4ACUports,andthereaderiswiredtothestrike.YouwillneedtoselecttheACUrelayfor
whichthisreader/entryiswiredtotheACU.
l
EntryOpenDuration—enteratime(between1secondand10minutes)forhowlongtheentryremains
unlockedbeforerevertingbacktoitsdefaultstate.
l
Unit—selectwhethertousesecondsorminutes.
l
InvertOutput—thisadvancedsettingistypicallyonlyneededforelevatorrelays;ifenabled,itflipsthe
NC/NOconfigurationofthephysicalrelay.
