Chapter 3: Operations 41

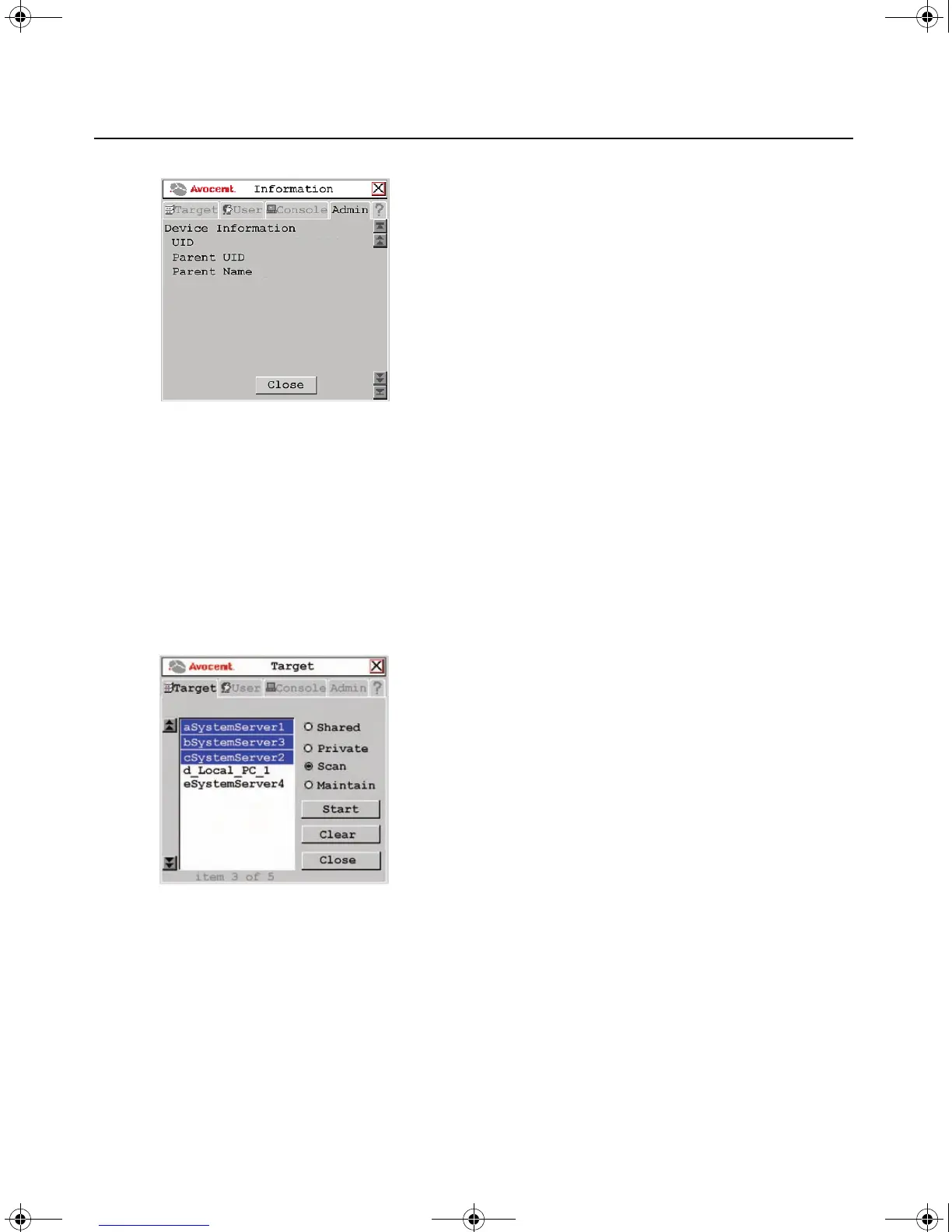

Figure 3.8: Information Screen
6. To return to the Device Admin screen, click Close. To exit the OSCAR interface, click X.
Scanning the switching system
You can use the Scan connection mode to monitor multiple target devices in sequence.
To scan an AMX switching system:
1. Press
Ctrl+Ctrl to launch the OSCAR interface.
2. Click the Tar
get tab, then select Scan.
Figure 3.9: Target Screen
3. Press and hold the Ctrl key while you individually select the target devices that you would like
to scan. Alternately, if you wish to select a group of target devices in sequence, you can click
the first target device in the sequence, press and hold the
Shift key and select the last target
device to highlight the group. Clicking Clear will deselect all of target devices in the list.
4. Click the St
art button to begin scanning.
AMX.book Page 41 Thursday, June 12, 2008 4:14 PM
