54 AMX Switch Series Installer/User Guide

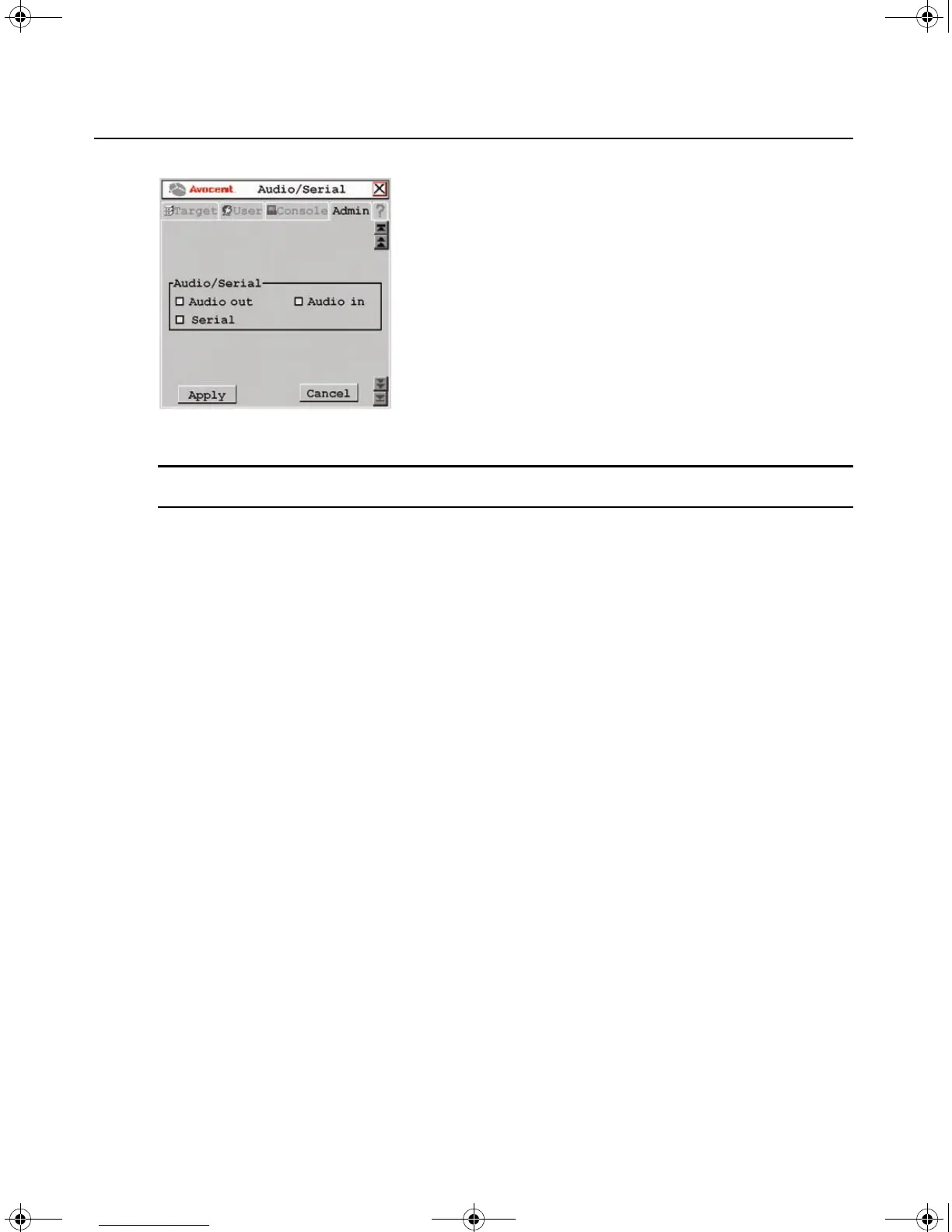

Figure 3.20: Audio/Serial Screen (Admin Tab)
NOTE: The first time this screen is accessed, the Audio out, Audio in and Serial checkboxes will be checked
(enabled) for devices that are multimedia-capable.
6. Click the Audio out (speakers), Audio in (mic) or Serial checkboxes to enable or disable as
required for the selected device.
7. To save changes, click Apply. T
o exit the OSCAR interface, click Cancel or X.
Viewing IQ Module Version Information
When Flash upgrading your AMX switching system, check the IQ module version to determine if
firmware updates are needed.
To view IQ module information:
1. Press
Ctrl+Ctrl to launch the OSCAR interface.
2. Click the Admin
tab. The Device Admin screen displays.
3. Select the IQ module for which you wish to view version, configuration and
connection i
nformation.
4. Click the Edit devi
ce button. The Edit Device screen displays.
5. Click the Info but
ton. The Information screen displays.
AMX.book Page 54 Thursday, June 12, 2008 4:14 PM
