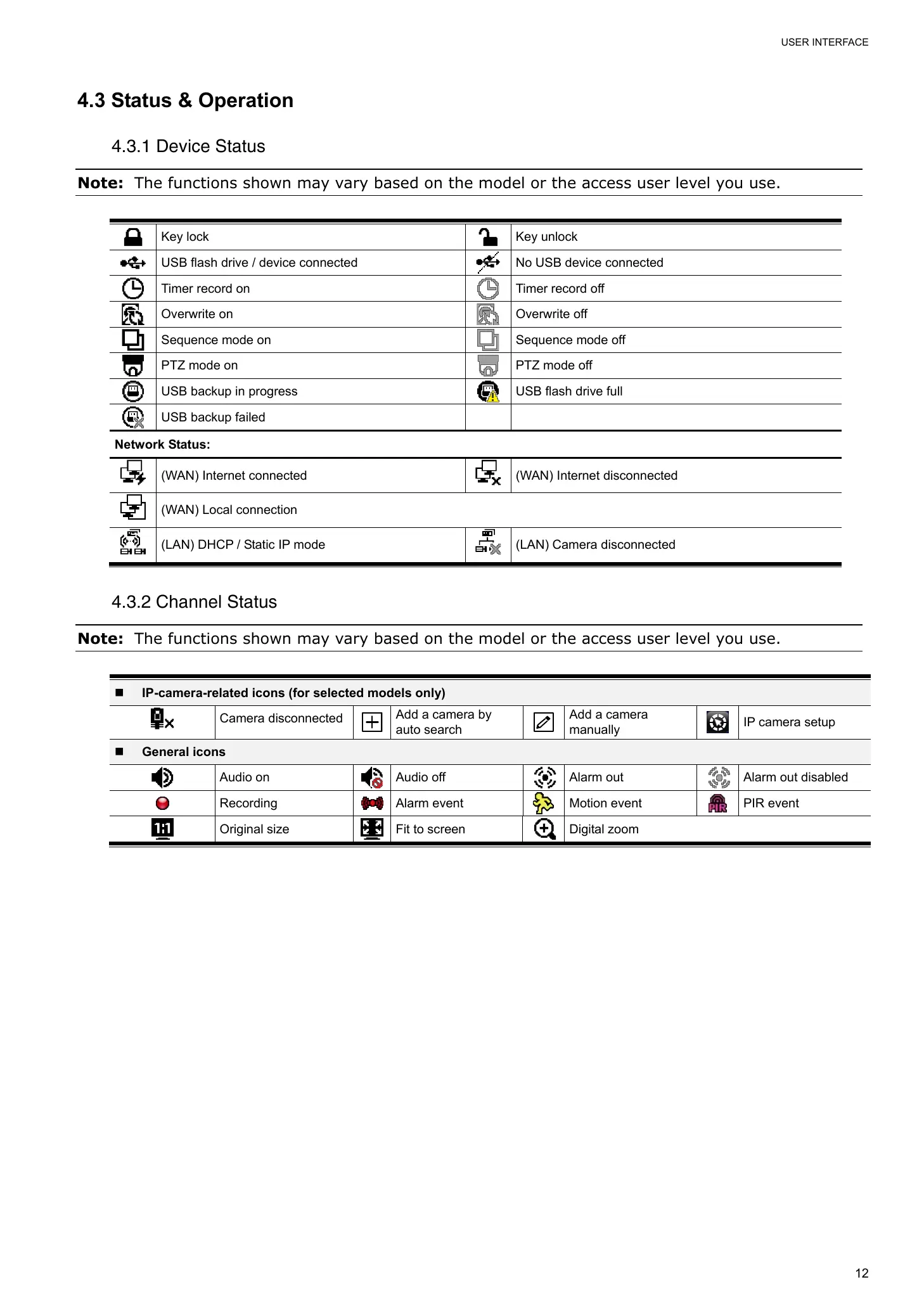

4.3 Status & Operation
4.3.1 Device Status
Note: The functions shown may vary based on the model or the access user level you use.
Key lock Key unlock
USB flash drive / device connected
No USB device connected
Timer record on Timer record off
Overwrite on Overwrite off
Sequence mode on Sequence mode off
PTZ mode on PTZ mode off
USB backup in progress USB flash drive full
USB backup failed
Network Status:
(WAN) Internet connected (WAN) Internet disconnected
(WAN) Local connection
(LAN) DHCP / Static IP mode (LAN) Camera disconnected
4.3.2 Channel Status
Note: The functions shown may vary based on the model or the access user level you use.
 IP-camera-related icons (for selected models only)
Camera disconnected
Add a camera by
auto search
Add a camera
manually
IP camera setup
 General icons
Audio on Audio off Alarm out Alarm out disabled
Recording Alarm event
Motion event PIR event
Original size Fit to screen Digital zoom
