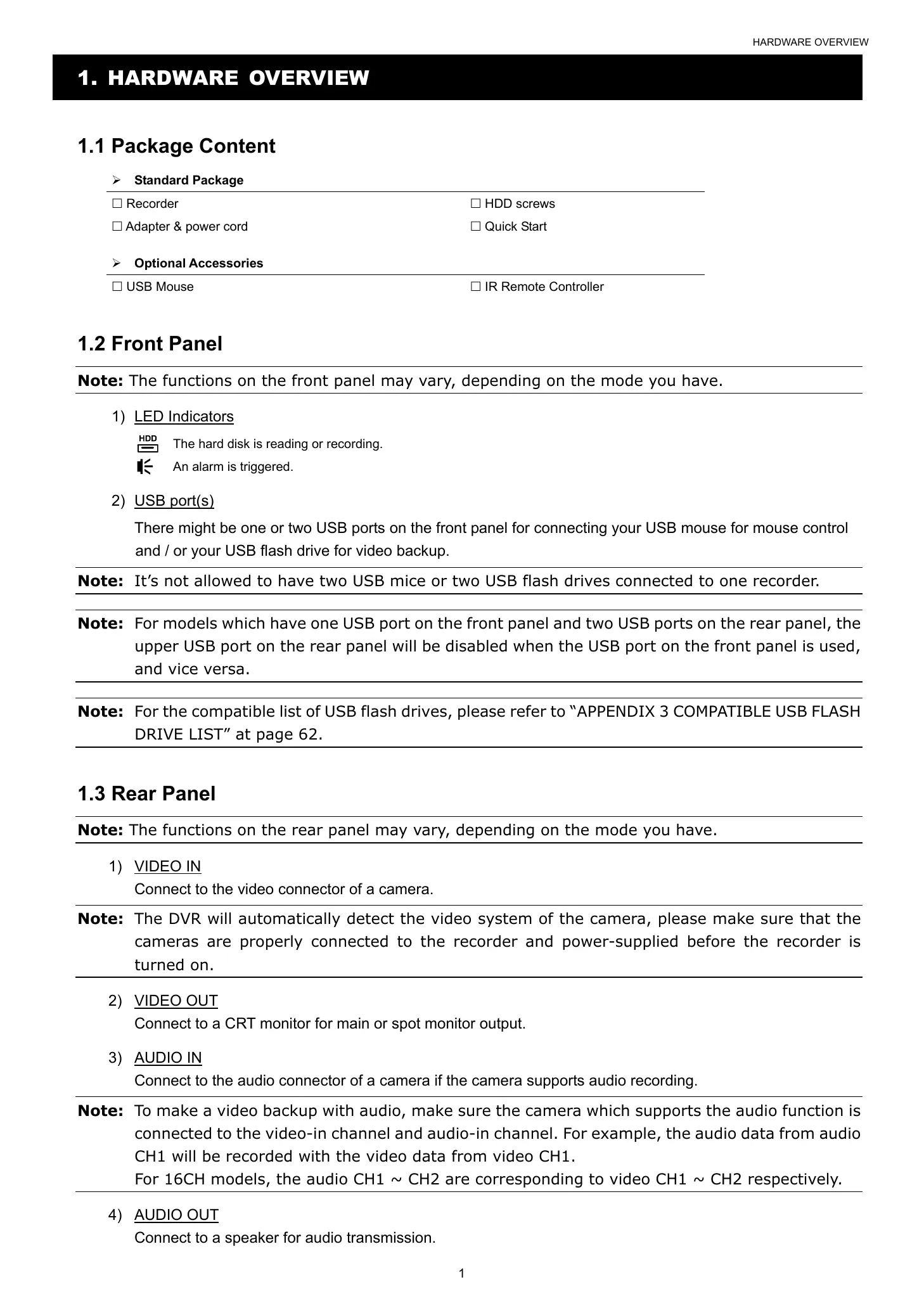

HARDWARE OVERVIEW

1. HARDWARE OVERVIEW

1.1 Package Content

 Standard Package

 Recorder  HDD screws

 Adapter & power cord  Quick Start

 Optional Accessories

 USB Mouse  IR Remote Controller

1.2 Front Panel

Note: The functions on the front panel may vary, depending on the mode you have.

1) LED Indicators

The hard disk is reading or recording.

An alarm is triggered.

2) USB port(s)

There might be one or two USB ports on the front panel for connecting your USB mouse for mouse control

and / or your USB flash drive for video backup.

Note: It’s not allowed to have two USB mice or two USB flash drives connected to one recorder.

Note: For models which have one USB port on the front panel and two USB ports on the rear panel, the

upper USB port on the rear panel will be disabled when the USB port on the front panel is used,

and vice versa.

Note: For the compatible list of USB flash drives, please refer to “APPENDIX 3 COMPATIBLE USB FLASH

DRIVE LIST” at page 62.

1.3 Rear Panel

Note: The functions on the rear panel may vary, depending on the mode you have.

1) VIDEO IN

Connect to the video connector of a camera.

Note: The DVR will automatically detect the video system of the camera, please make sure that the

cameras are properly connected to the recorder and power-supplied before the recorder is

turned on.

2) VIDEO OUT

Connect to a CRT monitor for main or spot monitor output.

3) AUDIO IN

Connect to the audio connector of a camera if the camera supports audio recording.

Note: To make a video backup with audio, make sure the camera which supports the audio function is

connected to the video-in channel and audio-in channel. For example, the audio data from audio

CH1 will be recorded with the video data from video CH1.

For 16CH models, the audio CH1 ~ CH2 are corresponding to video CH1 ~ CH2 respectively.

4) AUDIO OUT

Connect to a speaker for audio transmission.
