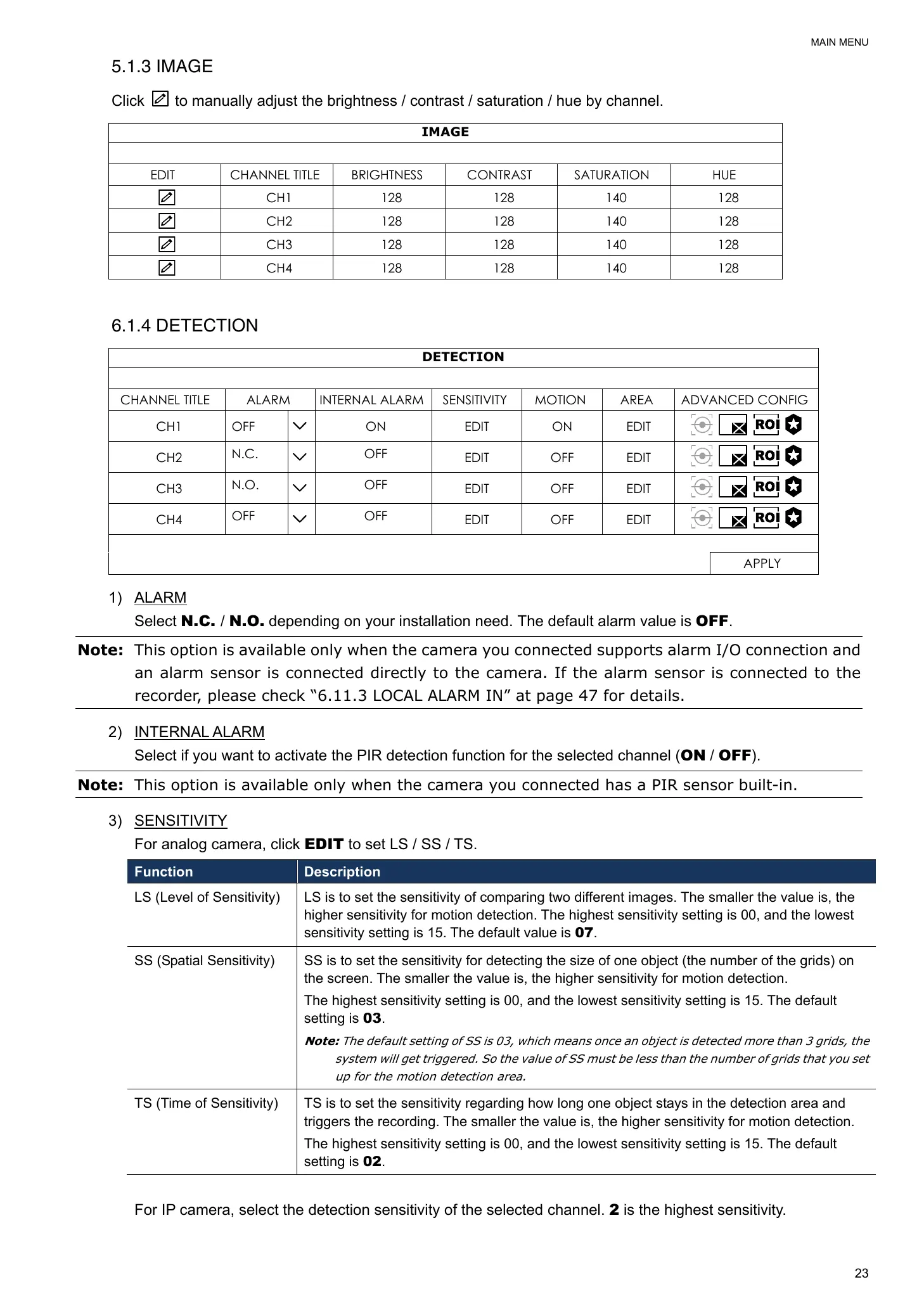

5.1.3 IMAGE
Click
to manually adjust the brightness / contrast / saturation / hue by channel.
EDIT CHANNEL TITLE BRIGHTNESS CONTRAST SATURATION HUE
CH1 128 128 140 128
CH2 128 128 140 128
CH3 128 128 140 128
CH4 128 128 140 128
6.1.4 DETECTION
DETECTION
CHANNEL TITLE ALARM INTERNAL ALARM SENSITIVITY MOTION AREA ADVANCED CONFIG
CH1 OFF
ON EDIT ON EDIT
CH2
N.C.
OFF
EDIT OFF EDIT
CH3
N.O.
OFF
EDIT OFF EDIT
CH4
OFF
OFF
EDIT OFF EDIT
APPLY
1) ALARM
Select N.C. / N.O. depending on your installation need. The default alarm value is OFF.
Note: This option is available only when the camera you connected supports alarm I/O connection and
an alarm sensor is connected directly to the camera. If the alarm sensor is connected to the
recorder, please check “6.11.3 LOCAL ALARM IN” at page 47 for details.
2) INTERNAL ALARM
Select if you want to activate the PIR detection function for the selected channel (ON / OFF).
Note: This option is available only when the camera you connected has a PIR sensor built-in.
3) SENSITIVITY
For analog camera, click EDIT to set LS / SS / TS.
Function Description
LS (Level of Sensitivity) LS is to set the sensitivity of comparing two different images. The smaller the value is, the
higher sensitivity for motion detection. The highest sensitivity setting is 00, and the lowest
sensitivity setting is 15. The default value is 07.
SS (Spatial Sensitivity) SS is to set the sensitivity for detecting the size of one object (the number of the grids) on
the screen. The smaller the value is, the higher sensitivity for motion detection.
The highest sensitivity setting is 00, and the lowest sensitivity setting is 15. The default
setting is 03.
Note: The default setting of SS is 03, which means once an object is detected more than 3 grids, the
system will get triggered. So the value of SS must be less than the number of grids that you set
up for the motion detection area.
TS (Time of Sensitivity) TS is to set the sensitivity regarding how long one object stays in the detection area and
triggers the recording. The smaller the value is, the higher sensitivity for motion detection.
The highest sensitivity setting is 00, and the lowest sensitivity setting is 15. The default
setting is 02.
For IP camera, select the detection sensitivity of the selected channel. 2 is the highest sensitivity.
To Next Page
