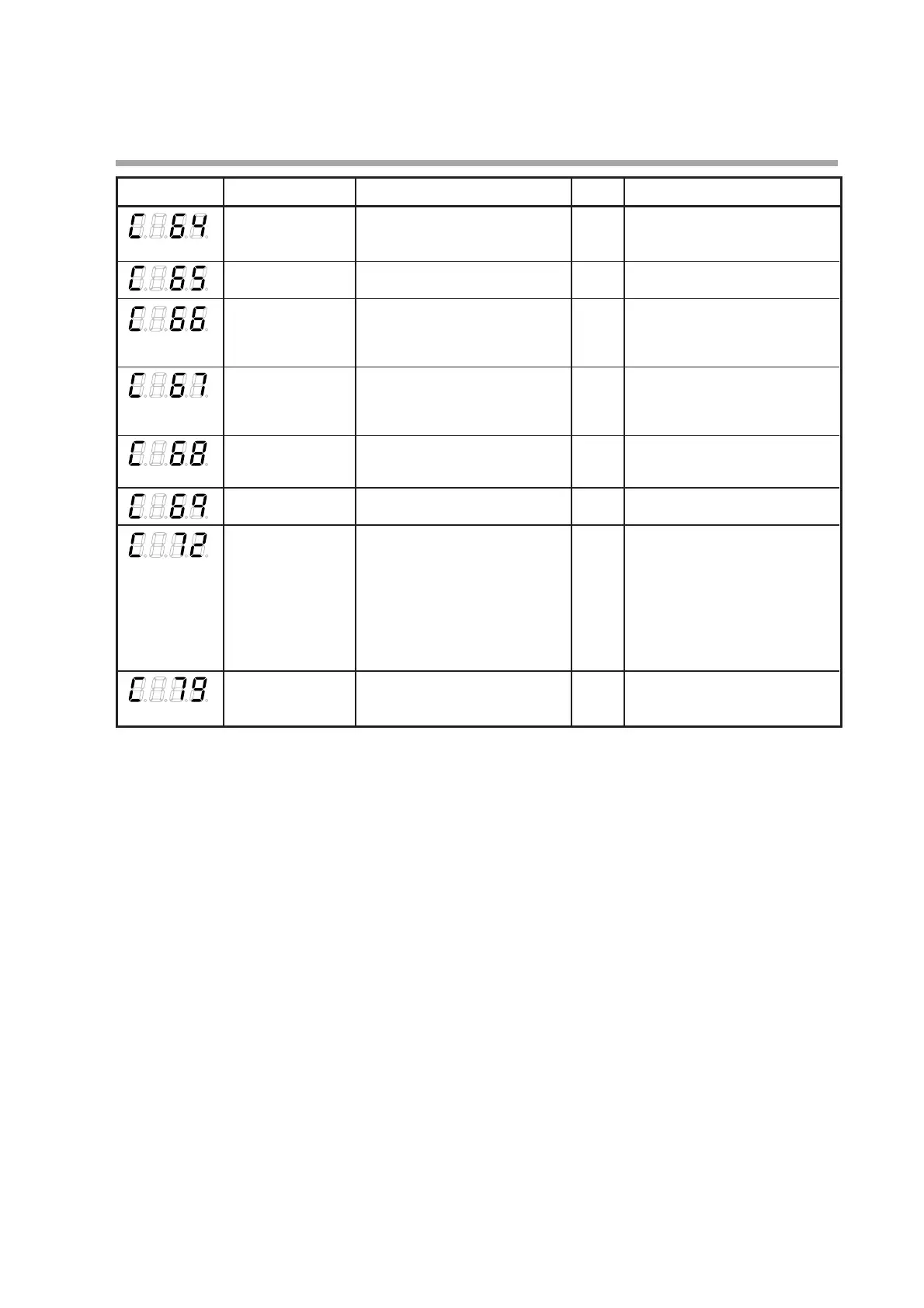

Display Item Contents
Initial value
Notes
Communication mode 0: CPL 0 Displayed when the optional model
1: MODBUS (ASCII format) has RS-485.
2: MODBUS (RTU format)
Station address 0 to 127 0 Displayed when the optional model
Communication is disabled when "0" is set.
has RS-485.
Transmission speed 0: 4800bps 2 Displayed when the optional model
1: 9600bps has RS-485.
2:19200bps
3:38400bps
Data format 0: 7 bits 1 Displayed when the optional mode
l
(Data length) 1: 8 bits has RS-485 and the communication
mode is not MODBUS (RTU) (C64 ≠
2).
Data format 0: Even parity 0 Displayed when the optional model
(Parity) 1: Odd parity has RS-485.
2: No parity
Data format 0: 1 bit 0 Displayed when the optional model
(Stop bit) 1: 2 bits has RS-485.
[mode] key function 0: Invalid 0
1: AUTO/MANUAL selection
2: RUN/READY selection
3: AT Stop/Start
4: LSP group selection
5: Release all DO latches
6: Invalid
7: Communication DI1 selection
8: Invalid
User level 0: Simple configuration 0
1: Standard configuration
2: High function configuration
7-7
Chapter 7. LIST OF SIMPLE CONFIGURATION DISPLAY ITEMS
