3-2

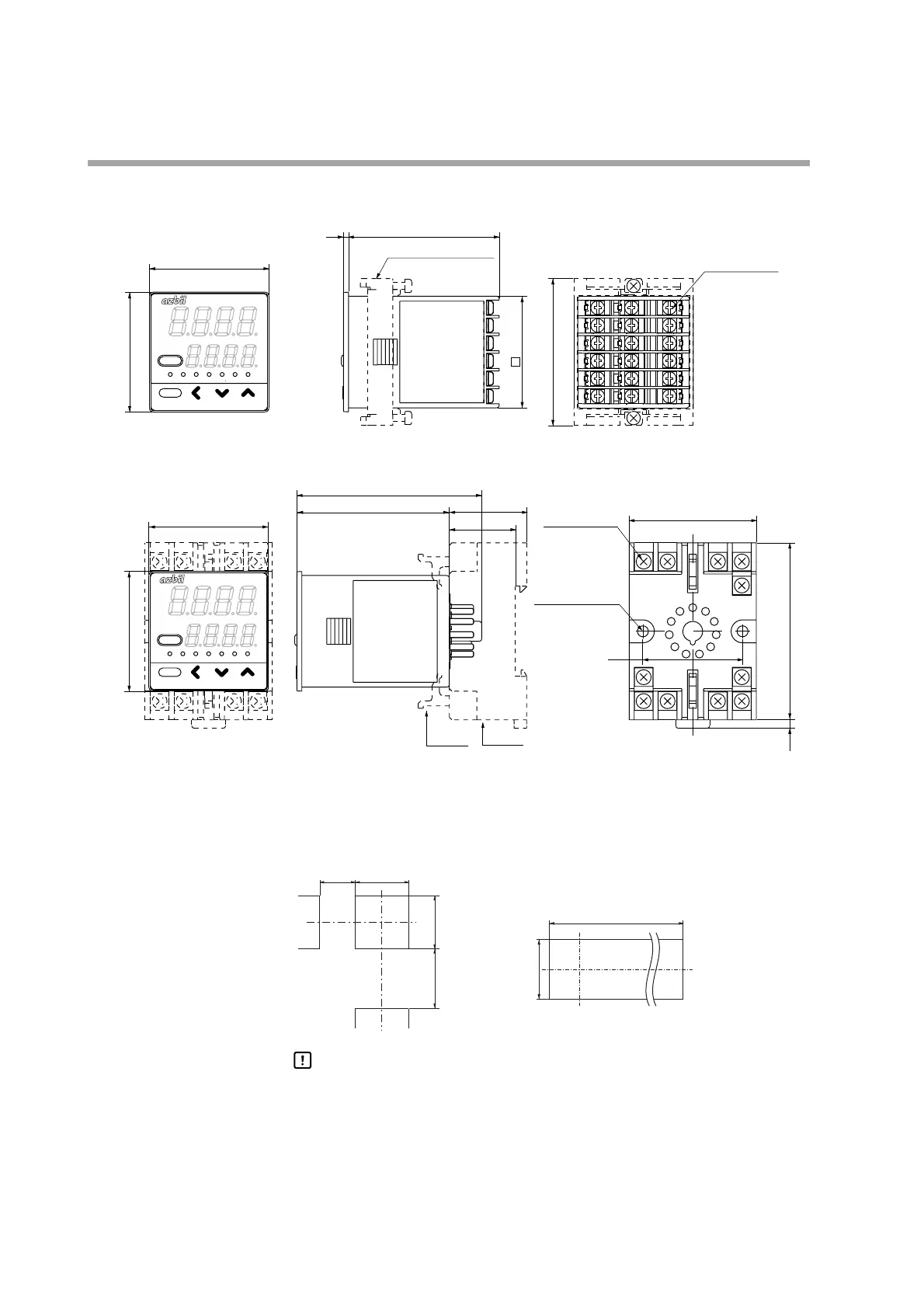

■ External Dimensions
● Panel Mount type (C15T) Unit: mm
● Socket Mount type (C15S)
■ Panel Cutout Dimensions
For panel mounting type, make the mounting holes according to the panel hole
making dimensions.
Unit: mm
Handling Precautions
• When three or more units are gang-mounted horizontally, the
maximum allowable ambient temperature is 40°C.
• Provide a space of at least 50 mm or more above and below the
controller.
• If dustproof or waterproof protection is required, mount the device using
the stand-alone mounting method. If gang-mounted, dustproof and
waterproof protection may not be maintained.
0
+0.5
45
50 min.
0
+0.5
4530 min.
0
+0.5
(48xN -3)
0
+0.5
45
("N" shows the number of mounting units.)
Stand-alone mounting Gang-mounting
Terminal screw
M3.5
Socket
81446391-001 (Optional unit)
2-M4 mounting
hole
48
48
40
51
71
3.4
74.2
61.2
26.5
31
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
SDC15
pv
sp
1
2
3
4
5
6
7
8
9
10
11
Socket
Stopper
59
602
44.8
48
48
rdy
man
ev1 ev2 ev3 ot1 ot2
para
mode
SDC15
pv
sp
Mounting bracket (Accessory)
M3
Terminal screw
Chapter 3. INSTALLATION
