3-3
■ Mounting procedures
• The mounting must be horizontal within 10 degrees tilted in back side lowering
or within 10 degrees tilted in back side rising.
• In the case of panel mount type (C15T), the mounting panel should be used with
a thickness of less than 9 mm of firm board.
● Panel mount type (C15T)
Items to be prepared:
Phillips-head screwdriver

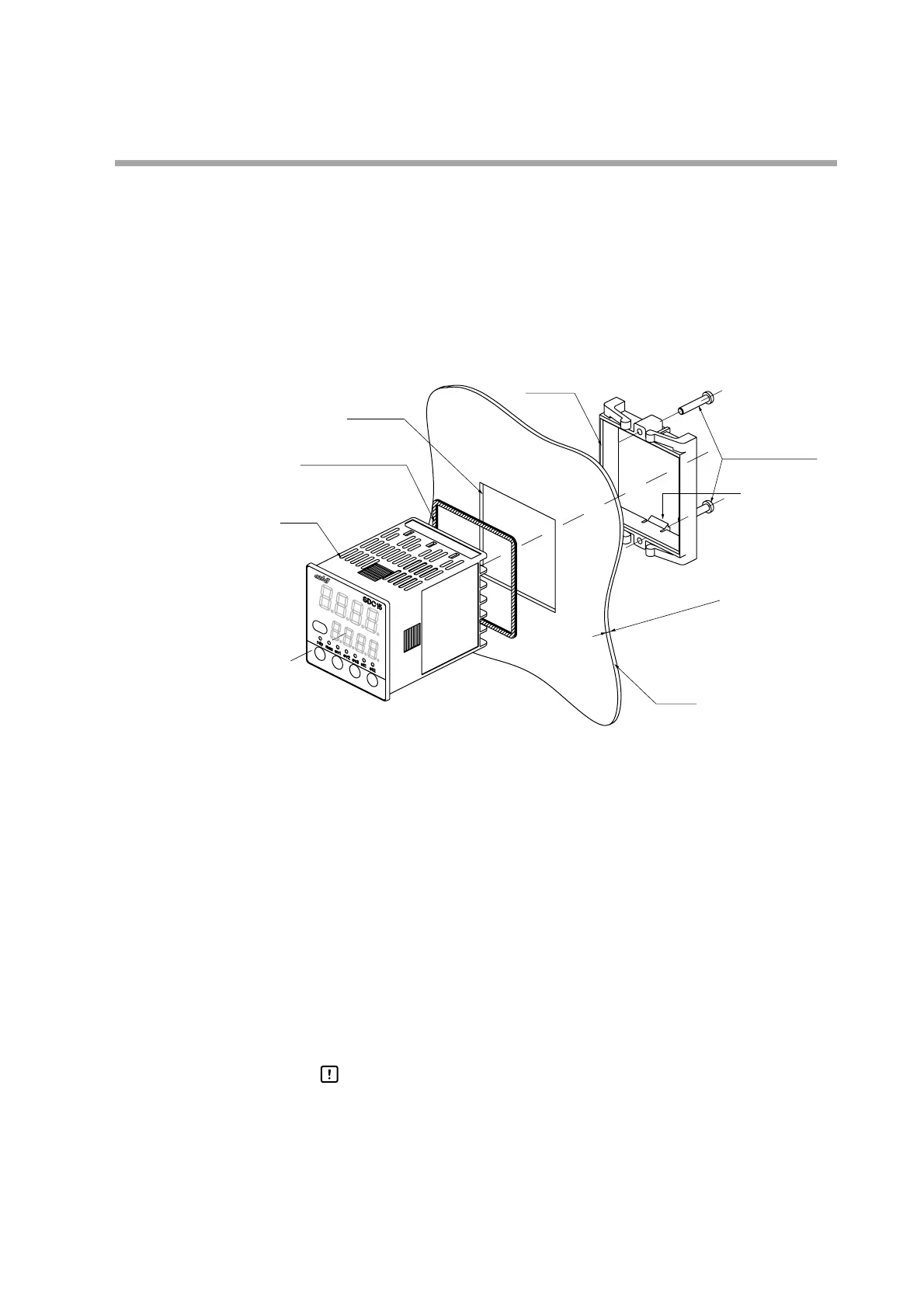

The above Figure shows the waterproof mounting using the gasket.
The gasket is not used for normal panel mounting.
(1) Insert this unit from the front of the panel.
(2) Fit the mounting bracket from the back of the panel.
(3) Push the mounting bracket against the panel until the hook of the mounting
bracket is firmly engaged with the groove of the main body.
(4) Tighten the upper and lower screws of the mounting bracket.
For waterproof mounting:
The panel mounting type (C15T) can be waterproof-mounted.
To do so, attach the accessory gasket to the main body before above step (1).
After that, mount the main body with the gasket attached from above operation
step (1) in order.
Handling Precautions
• To fasten this controller onto the panel, tighten a mounting bracket
screws, and turn one more half turn when there is no play between
the bracket and panel. Excessively tightening the screws may
deform the controller case.
• If gang-mounted, dustproof and waterproof protection may not be
maintained.
