● Using the soft cover for panel mount type (C15T)
For the panel mounting type, it is possible to attach the soft cover to the front
console.
The key can be operated with the soft cover attached.
Attaching the soft cover to the front console provides the protection (IP66) similar
to the waterproof mounting using the gasket.
Items to be prepared:
Soft cover Part No. 81446443-001 (Optional unit)
The gasket supplied with the main body is not used.

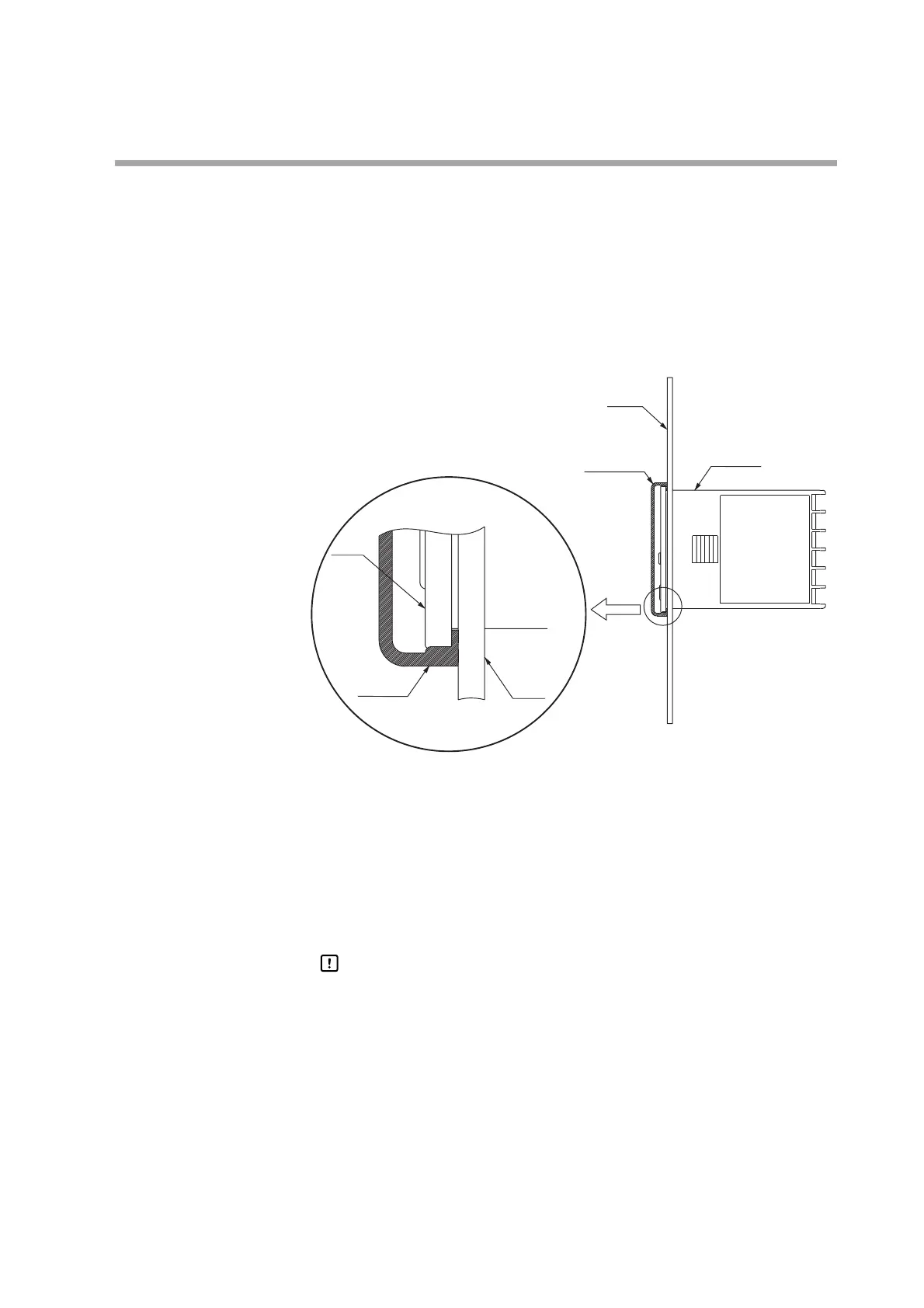

(1) Attach the soft cover so that it covers the console of the main body.
(2) Insert the unit with the soft cover attached from the front of the panel.
(3) Fit the mounting bracket from the back of the panel.
(4) Push the mounting bracket against the panel until the hook of the mounting
bracket is firmly engaged with the groove of the main body.
(5) Tighten the upper and lower screws of the mounting bracket.
Handling Precautions
• To fasten this controller onto the panel, tighten a mounting bracket
screws, and turn one more half turn when there is no play between
the bracket and panel. Excessively tightening the screws may
deform the controller case.
• If gang-mounted, dustproof and waterproof protection may not be
maintained.
