Chapter 5. SETTINGS BEFORE STARTING OPERATION
■ Transmission speed setup

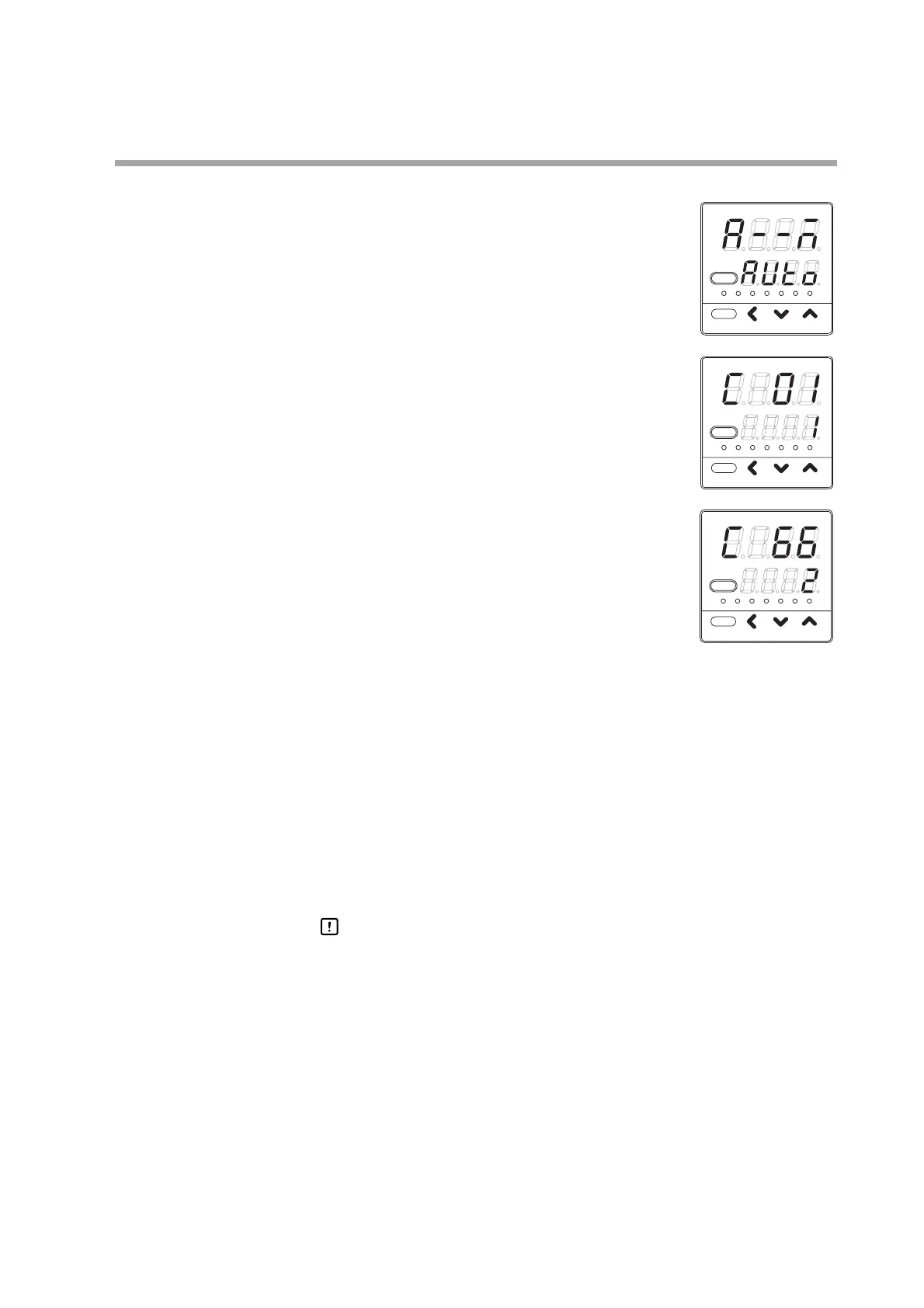

(1) In the operation display mode, keep the [para] key
pressed for 2 sec. or longer.
>> The unit then enters the parameter setting mode.
(2) In the parameter setting display mode, keep the [para]
key pressed for 2 sec. or longer.
>> The display is then changed to the setup setting
display.
(3) Press the [para] key several times.
>> Display the setup setting [C66: Transmission speed].
(4) Press the [<], [], or []key to set the value you have
selected from the following in [C66].
0: 4800bps
1: 9600bps
2: 19200bps
3: 38400bps
>> When no keys are pressed for 2 sec. or longer, the flashing of the numeric
value is stopped to set the currently displayed value.
(5) Press the [mode] key.
>> The display is returned to the operation display.
Handling Precautions
When the RS-485 communication is provided as an optional function of
the model, [C66] is displayed. Make the settings so that the
transmission speed becomes the same as that of the master station.
