Connecting protective sleeve GD684225 to microspeed® uni mini
pistol handpiece GD684

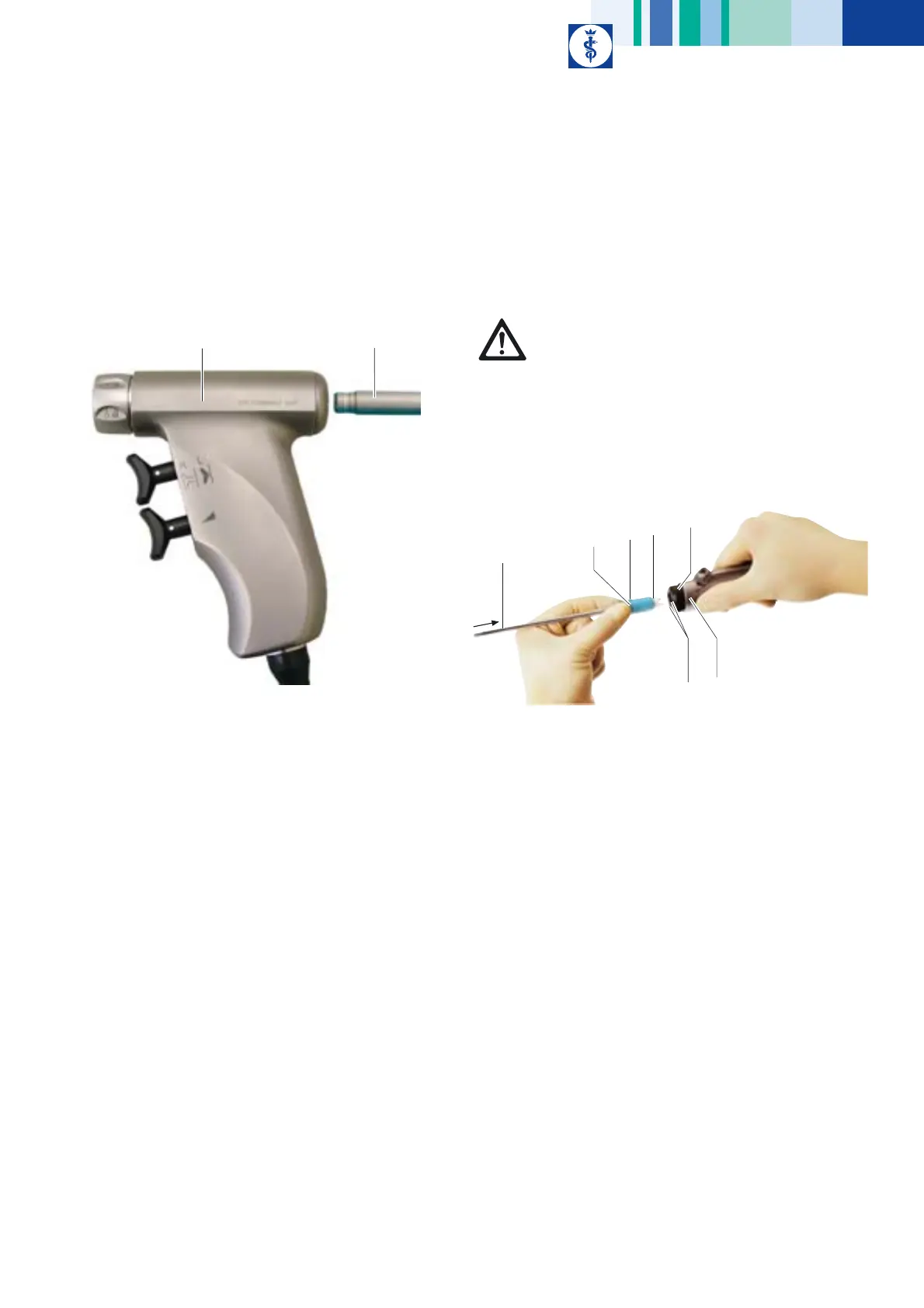

Fig. 19
Legend
A Protective sleeve GD684225
33 Pistol handpiece
Coupling:
¾ Slide protective sleeve A onto pistol handpiece 33 so that it clicks into
position.
Uncoupling:
¾ Retract protective sleeve A from pistol handpiece 33.
Coupling the blades to shaver handpiece GD682
Note
Only use Aesculap blades.
Coupling a blade to the shaver handpiece
Fig. 20
Legend
A Blade
B Cap
C Fixation nose
D Coupling
E Unlocking sleeve
F Groove
37 Shaver handpiece
Blade A can be mounted on shaver handpiece 37 in four different
positions.
¾ Hold blade A at cap B and push it into the blade adapter of the
handpiece as far as it will go, making certain that fixation nose C sits
in groove F of the motor.
The blade window is aligned with fixation nose C.
¾ Check the firm seating of blade A by pulling blade A.
A
33
WARNING
Risk of injury and material damage due to inappropriate use
of the blades!
¾ Always follow the safety advice and information given in
the respective instructions for use.
C
B
D
E
A
F
37
