Badger Meter ModMAG M2000 User Manual

Power connections Page 9/51
MID_M2000_BA_02_1807
6 mm² Cu
BA2000-20-MID
PE
BA2000-21-MID

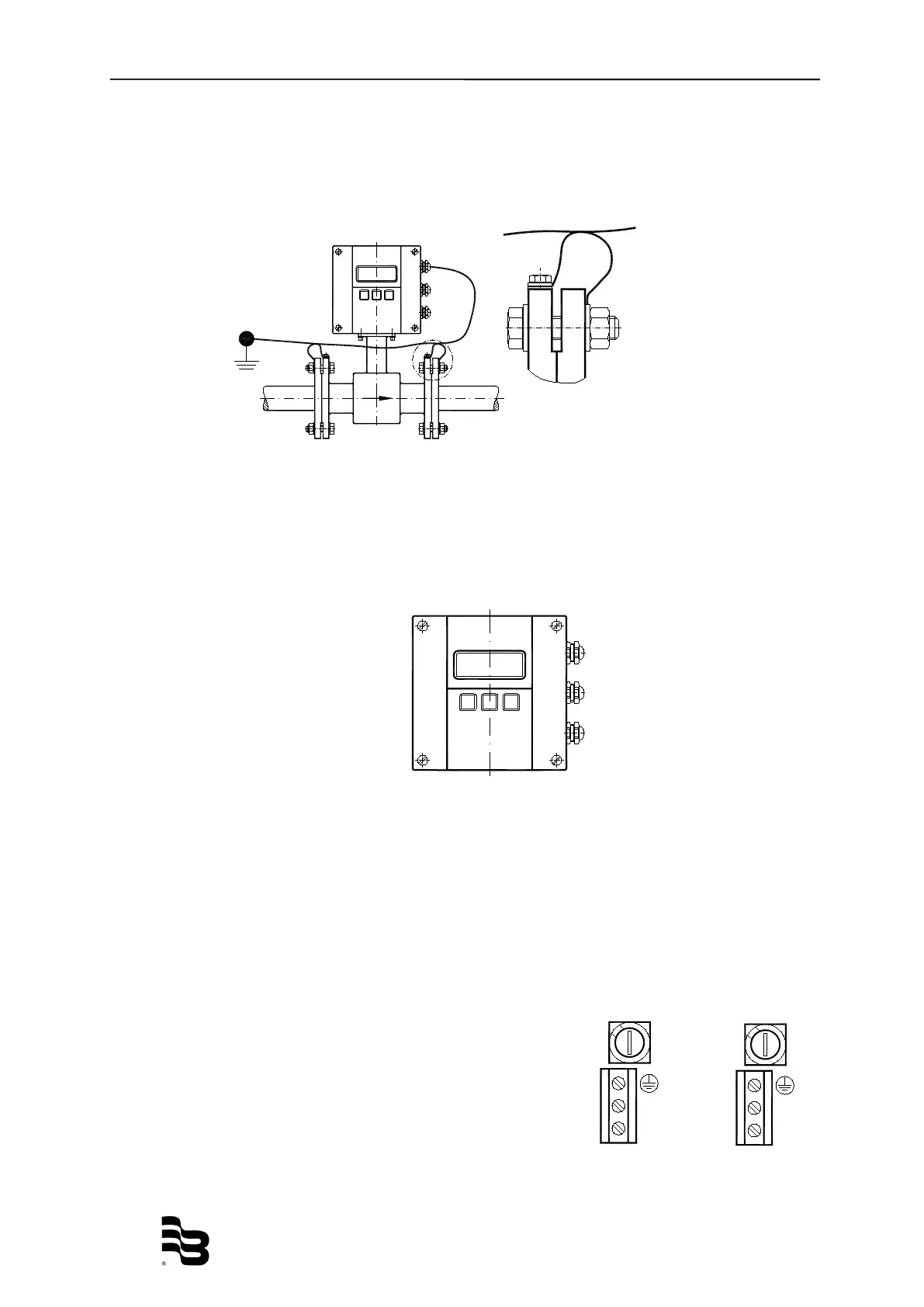

3.2.9 Electrically disturbed environment
If the pipe material is in an electrically disturbed environment or if metallic pipelines that
are not grounded are used, we recommend a grounding as shown in the following
picture in order to assure that measurement is not influenced.
4. Power connections
Caution: • For the 3 x M20 cable inlets only use flexible electric cables.
• Use separate cable inlets for auxiliary power, signal and input/output
cables.
4.1 Auxiliary power
Warning: • Do not connect meter under impressed mains voltage.
• Take national applicable rules into account.
• Observe type plate (mains voltage and frequency).
1. Slightly loosen both of the left cover screws and loosen the two right
cover screws completely. Open cover to the left side.
2. Push auxiliary power cable through the upper cable inlet.
3. Connection as shown in the picture.
4. In the following close connection cover again firmly.
85 – 265 VAC
L
N
F1 2AT
L
N
F1 2AT
9 – 36 VDC
-
+

Badger Meter ModMAG M2000 Specifications

General

Flow Measurement Technology	Electromagnetic
Enclosure Rating	NEMA 4X (IP66)
Repeatability	±0.1% of rate
Output	4-20 mA, pulse, frequency
Display	LCD with backlight
Power Supply	100 to 240 VAC or 24 VDC
Communication Protocols	HART, Modbus
Process Connection	Flanged, Threaded
Electrode Material	316 Stainless Steel, Hastelloy, Tantalum
Liner Material	PTFE, PFA, Polyurethane
Accuracy	±0.2% of rate
Temperature Range	-40°...160°F (-40°...71°C)
Fluid Temperature	-4°...302°F (-20°...150°C)
Materials	Stainless Steel, Carbon Steel
