Badger Meter ModMAG M2000 User Manual

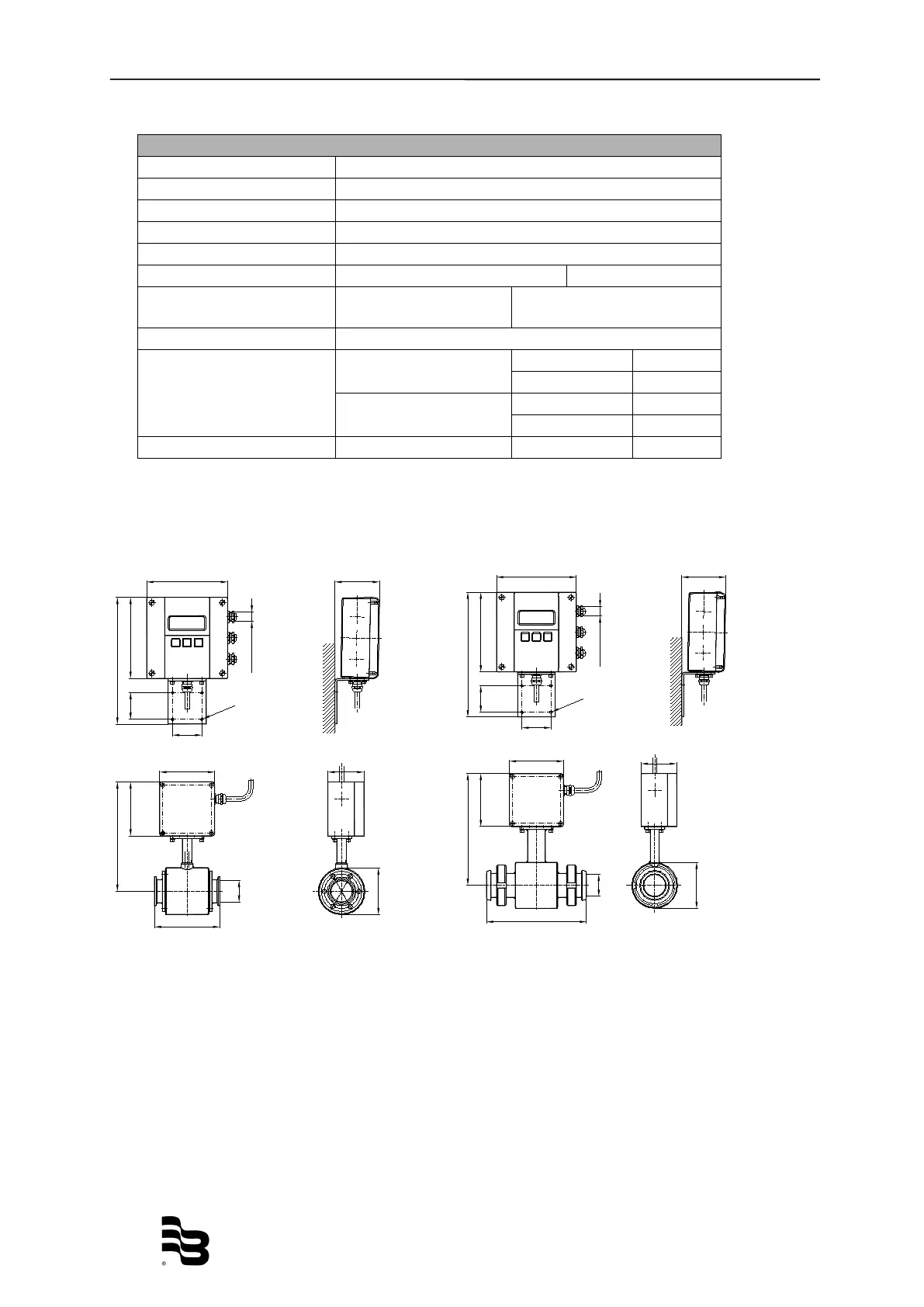

Technical data Page 42/51
MID_M2000_BA_02_1807
B1
120
122
80
A
D
DN
M2000-6
99180
180
M20 (x3)
281
60
Ø5.2
65
B1
A
120
122
80
D
DN
M2000-7
99180
180
M20 (x3)
281
60
Ø5.2
65
7.2 Detector type Food
Technical data
Size
DN 10 – 100 (3/8“...4“)
Process connections
Tri-Clamp
®
, DIN 11851, ISO 2852, etc.
Nominal pressure
PN 10
Protective class
IP 65, IP 68 optional
Min. conductivity
5 µS/cm (20 µS/cm demineralized water)
Liners
PTFE
-40 to +150°C
Electrodes
Hastelloy C (Standard)
Tantalum
Platinum/Gold platinized
Platinum/Rhodium
Body
Stainless steel
Overall length
Tri-Clamp
®
connection
DN 10 – 50
145 mm
DN 65 – 100
200 mm
DIN 11851 connection
DN 10 – 20
170 mm
DN 25 – 50
225 mm
DN 65 – 100
280 mm
Process connection Tri-Clamp
®
Process connection DIN 11851
M2000
®
wall mounting M2000
®
wall mounting

Badger Meter ModMAG M2000 Specifications

General

Brand	Badger Meter
Model	ModMAG M2000
Category	Measuring Instruments
Language	English
