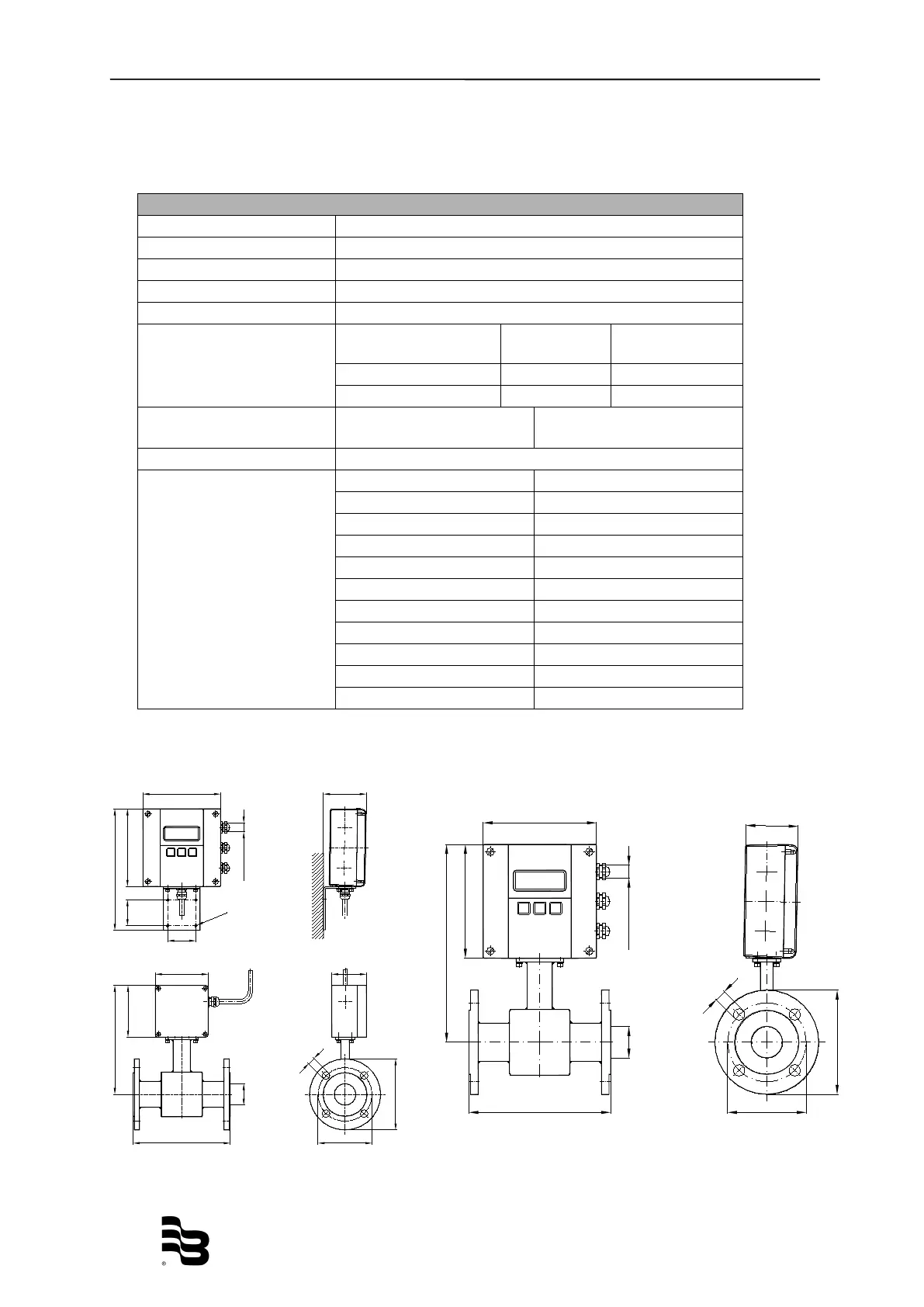

7. Technical data
7.1 Detector Type II
Technical data
Size
DN 6 – 2000 (1/4“...80“)
Process connections
Flange: DIN, ANSI, JIS, AWWA etc.
Nominal pressure
Up to PN 100
Protection class
IP 67, IP 68 optional
Min. conductivity
5 µS/cm (20 µS/cm demineralized water)
Liners
Hard/soft rubber
from DN 25
onward
0 to +80°C
PTFE
DN 6 - 600
-40 to +150°C
Halar (ECTFE)
ab DN 300
-40 to +150°C
Electrodes
Hastelloy C (Standard)
Tantalum
Platinum/Gold platinized
Platinum/Rhodium
Body
Steel/stainless steel optional
Overall length
DN 6 – 20
170 mm
DN 25 – 50
225 mm
DN 65 – 100
280 mm
DN 125 – 200
400 mm
DN 250 – 350
500 mm
DN 400 – 700
600 mm
DN 750 – 1000
800 mm
DN 1200 – 1400
1000 mm
DN 1600
1600 mm
DN 1800
1800 mm
DN 2000
2000 mm
Process connection flange Process connection flange
M2000
®
wall mounting M2000
®
mounted version
