Badger Meter ModMAG M2000 User Manual

Technical data Page 46/51
MID_M2000_BA_02_1807

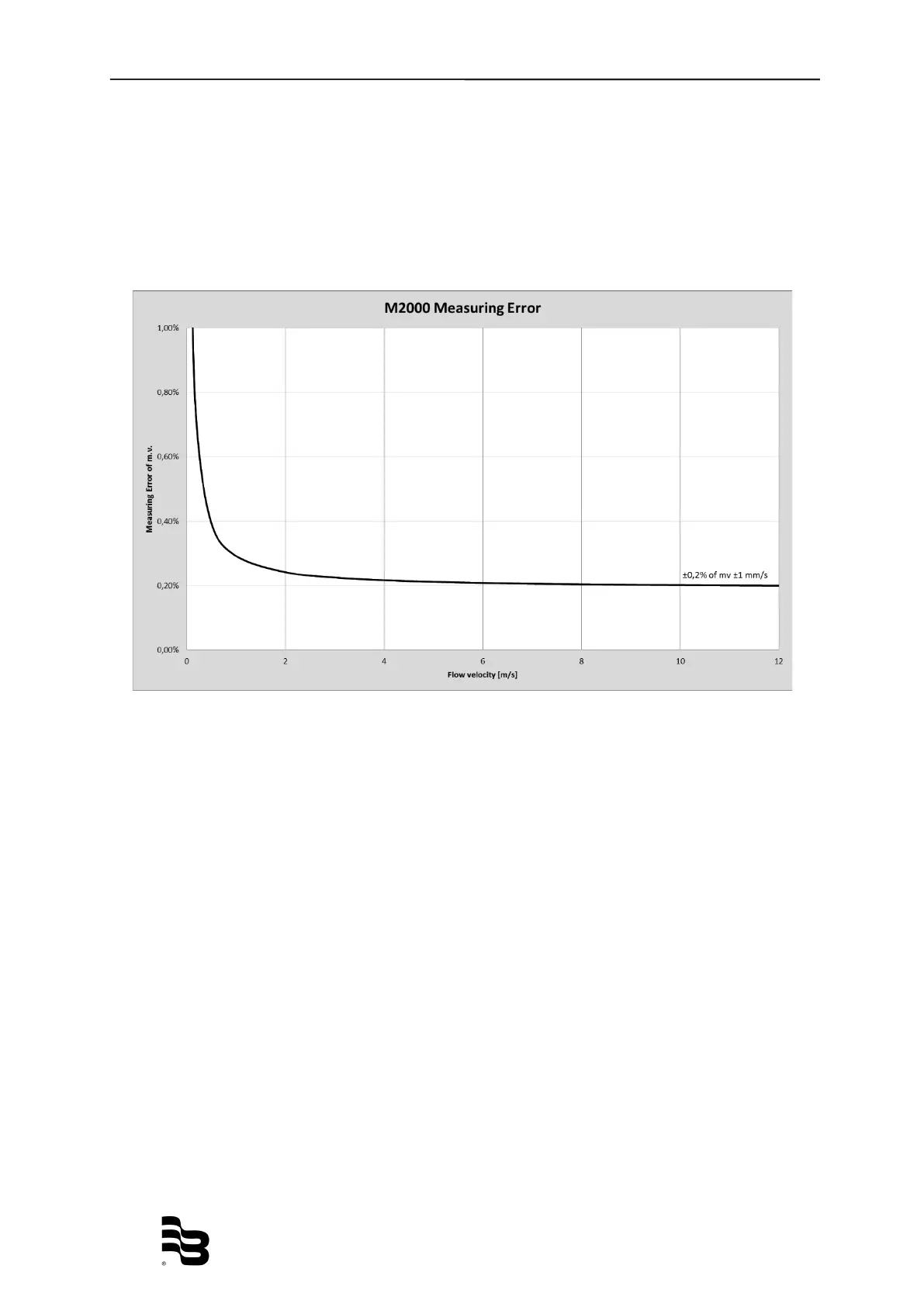

7.5 Error limits
Measuring range : 0,03 m/sec. to 12 m/sec.
Pulse output : ±0,2% of m.v. ±1 mm/s
Analog output : Similar to pulse output plus ±0,01 mA
Reproducibility : ±0,1%
Reference conditions:
Ambient and
fluid temperature : 20°C
Electr. conductivity : > 300 µS/cm
Warm-up period : 60 min
Mounting conditions : > 10 DN inlet pipe
> 5 DN outlet pipe
Detector properly grounded and centered.

Badger Meter ModMAG M2000 Specifications

General

Flow Measurement Technology	Electromagnetic
Enclosure Rating	NEMA 4X (IP66)
Repeatability	±0.1% of rate
Output	4-20 mA, pulse, frequency
Display	LCD with backlight
Power Supply	100 to 240 VAC or 24 VDC
Communication Protocols	HART, Modbus
Process Connection	Flanged, Threaded
Electrode Material	316 Stainless Steel, Hastelloy, Tantalum
Liner Material	PTFE, PFA, Polyurethane
Accuracy	±0.2% of rate
Temperature Range	-40°...160°F (-40°...71°C)
Fluid Temperature	-4°...302°F (-20°...150°C)
Materials	Stainless Steel, Carbon Steel
