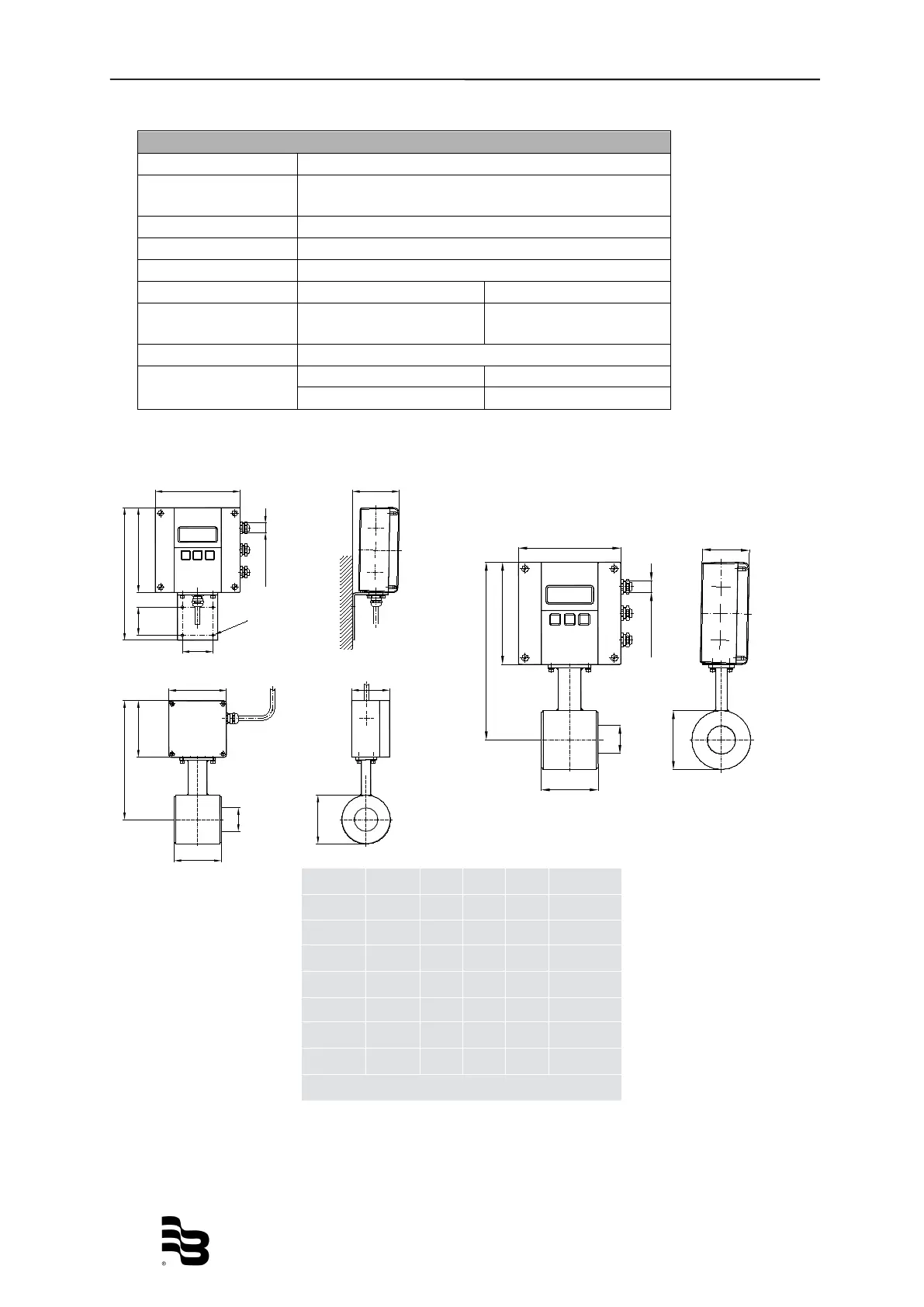

Badger Meter ModMAG M2000 User Manual

Technical data Page 44/51
MID_M2000_BA_02_1807
B1
122
120
80
DN
M2000-5
D
A
99
180
180
M20 (x3)
281
60
Ø5.2
65
A
B2
DN
M2000-4
D
180
180
M20 (x3)
83
7.3 Detector Type III
Technical Data
Size
DN 25 – 100 (1“...4“)
Process connections
Sandwich connection,
(intermediate flange mounting)
Nominal pressure
PN 40
Protective class
IP 67, IP 68 optional
Min. conductivity
5 µS/cm (20 µS/cm demineralized water)
Liner
PTFE
-40 to +150°C
Electrodes
Hastelloy C (Standard)
Tantalum
Platinum/Gold platinized
Platinum/Rhodium
Body
Steel/stainless steel optional
Overall length
DN 25 – 50
100 mm
DN 65 – 100
150 mm
Sandwich connection Sandwich connection
M2000
®
wall mounting M2000
®
mounted version
DN
A
B1
B2
D
25
1”
100
238
184
74
32
1 ¼“
100
243
189
84
40
1 ½“
100
248
194
94
50
2”
100
253
199
104
65
2 ½“”
150
266
212
129
80
3”
150
271
217
140
100
4”
150
279
225
156
Pressure PN 40
