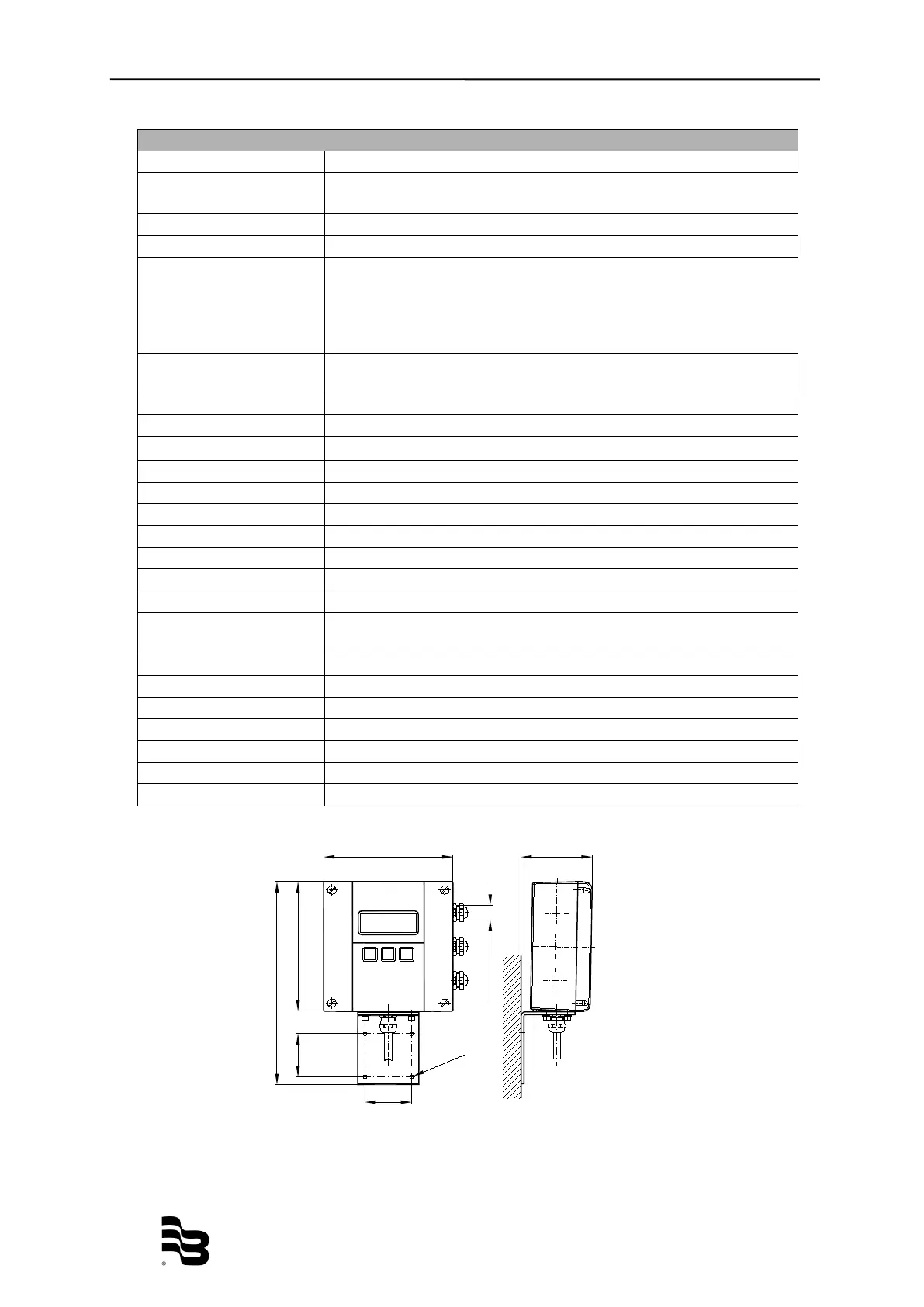

Badger Meter ModMAG M2000 User Manual

Technical data Page 45/51
MID_M2000_BA_02_1807
99180
180
M20 (x3)
281
M2000-1
60
Ø5.2
65
7.4 Meter type M2000
Technical data
Type
M2000
Auxiliary power
85 – 265 VAC, 45 – 65 Hz
Optional 9 - 36 VDC
Analog output
0/4 – 20 mA, ≤ 800 Ohm
Flow direction is displayed via separate status output
Digital outputs
4 freely configurable open collector outputs
Active 24 V, 50 mA or Passiv 30 VDC, 100 mA
max. frequency of 10 kHz
Optional 2 solid state relais 48 VAC, 500mA
Pulse, limit, preselector, status, error messages
Digital inputs
Totalizers and preselectors reset
Positive Zero Return
Fluid monitoring
Separate electrode
Configuration
3 buttons
Interface
RS 232/RS845 ModBus
®
RTU, HART, Profibus DP, M-Bus
Measuring range
0,03 to 12 m/s
Measuring accuracy
±0,2% of m.v. ±1 mm/s
Reproducibility
0,1%
Flow direction
Bidirectional
Pulse length
Configurable up to 2000 msec.
Outputs
Short-circuit-proof and galvanically separated
Low flow cutoff
0 – 10%
Display
LCD, 4 lines/20 digits, backlight,
actual flow rate, totalizers, status display
Datalogger
Optional 32 MB/10.000 data records
Store/Restore
Optional memory for detector and amplifier data
Body
Powder-coated alu die casting
Protective class
IP 67
Cable inlet
Supply and signal cables 3 x M20
Signal cable
From meter M20
Ambient temperature
-20 to + 60°C
Dimensions
M2000
®
