Badger Meter ModMAG M2000 User Manual

Power connections Page 13/51
MID_M2000_BA_02_1807
BA2000-22MID
L N PE
JP1
JP2
COMMUNICATION
D
ISPLAY
CS C2 C1
E1
ES
E2
RS
EP
ES
15 16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Communication interface
4.4 Communication interfaces
M2000 offers following communication interfaces:
• Modbus
®
RTU RS485
• M-Bus
• HART
• Profibus DP
The additional interface board is already plugged in by the manufacturer or can be
ordered and easily plugged in afterwards.

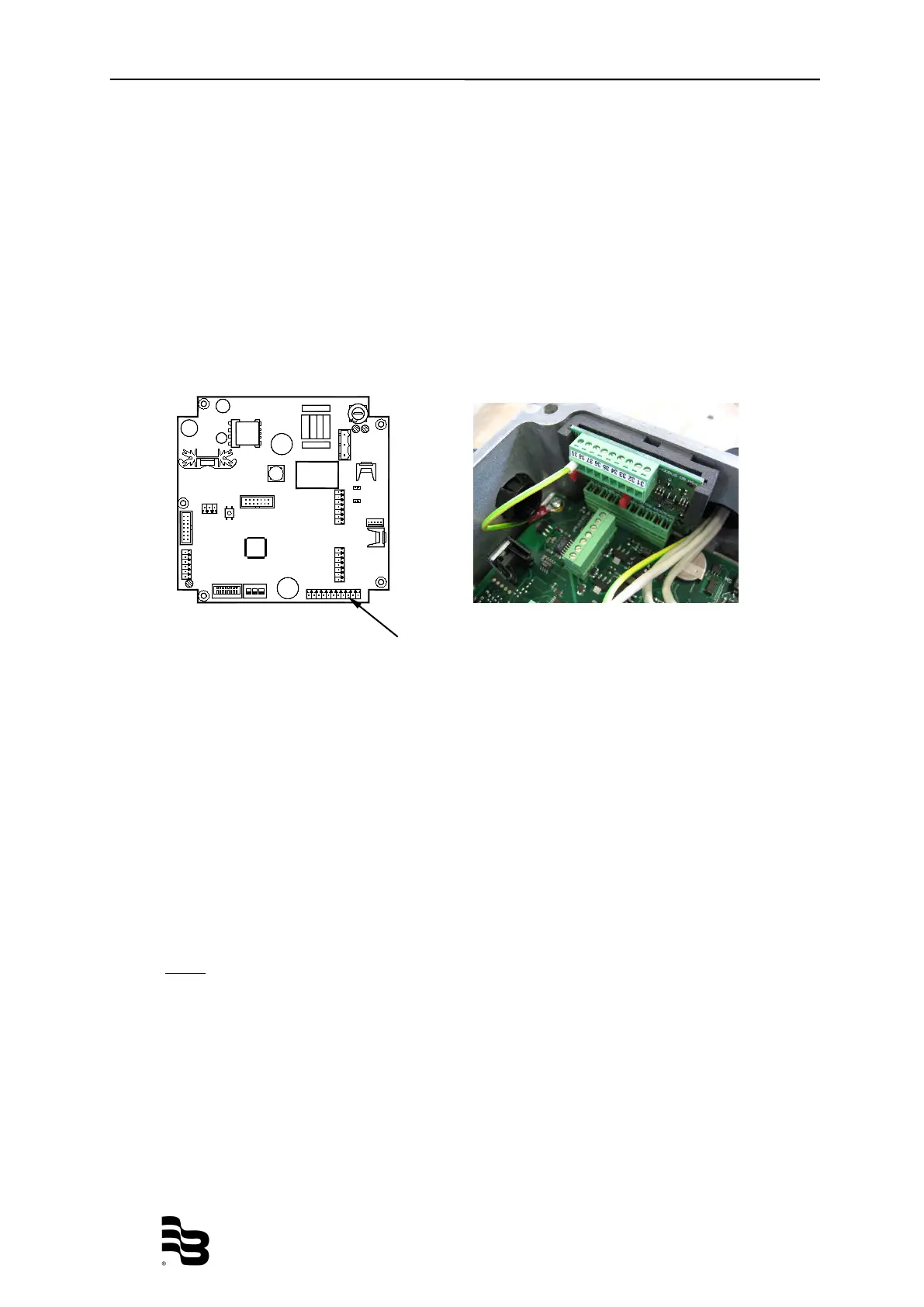

The interface board is plugged in to the 11 pin connector at the lower right of the main
board.
The internal communication between main board and interface board are done via the
Port B. Please consider that for M-Bus, HART and Profibus DP following adjustments
are done in the menu Communication->Port B
Port B: Port Adr. 001
Baudrate 38400
Data bits 8
Parity Even
Stop bits 1
For the Modbus
®
RTU RS485 the communication parameters are adjusted via Port B.
For more information, see the separate interface manual.
Note:
If an interface board is used, the access to the analog output (terminal 15/16) is not
possible, except for the HART and Modbus
®
RTU RS485 interface.

Badger Meter ModMAG M2000 Specifications

General

Flow Measurement Technology	Electromagnetic
Enclosure Rating	NEMA 4X (IP66)
Repeatability	±0.1% of rate
Output	4-20 mA, pulse, frequency
Display	LCD with backlight
Power Supply	100 to 240 VAC or 24 VDC
Communication Protocols	HART, Modbus
Process Connection	Flanged, Threaded
Electrode Material	316 Stainless Steel, Hastelloy, Tantalum
Liner Material	PTFE, PFA, Polyurethane
Accuracy	±0.2% of rate
Temperature Range	-40°...160°F (-40°...71°C)
Fluid Temperature	-4°...302°F (-20°...150°C)
Materials	Stainless Steel, Carbon Steel
