Integral Endpoint Installation
ORI-UM-00025-EN-19
2. Remove the endpoint wire under the
breakaway plate.
• Turn the endpoint/encoder assembly over.
• Grasp the pull tab located to the right of the
encoder seal screw with pliers (Figure 46). Then
pull and remove the bottom breakaway plate
from the housing to expose the wire. The plate is
scored to facilitate removal.
• With your fingers, remove the three feet of
endpoint wire from the housing.
OTE:N The wire is attached to the endpoint.

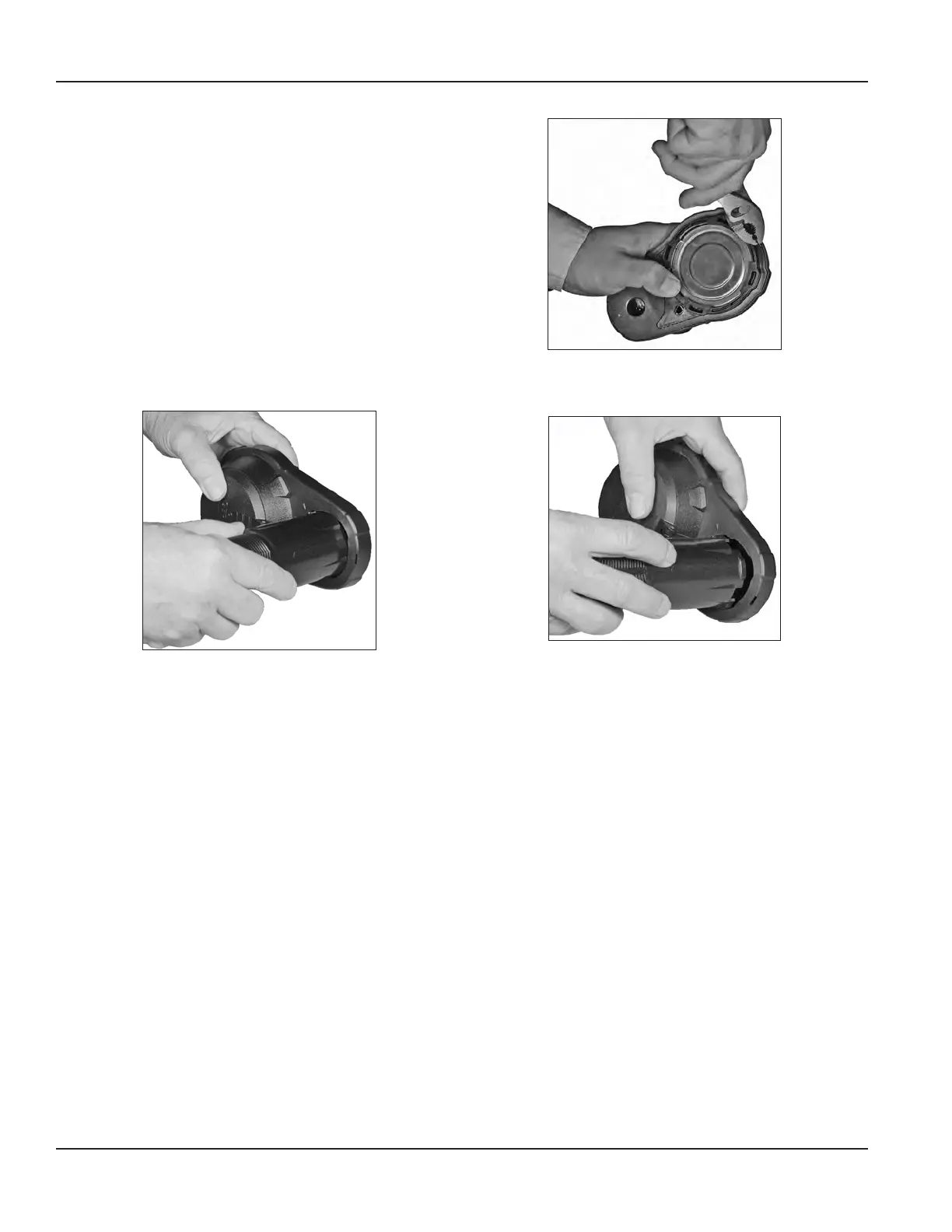

Figure 46: Pull tab to remove the breakaway plate
3. Rotate the endpoint counter-clockwise 1/4 turn and pull the endpoint and endpoint wire out from the assembly base.
Figure 47: Rotate endpoint clockwise
Figure 48: Pull endpoint away from base
4. Mount the endpoint according to recommended installation guidelines within the limits of the endpoint wire.
OTE:N The encoder cannot be removed from the assembly housing.
5. Remount the encoder (in the assembly housing) onto the meter bayonet.
• Turn the assembly clockwise 1/4 turn so it locks in place.
• Replace and tighten the security screw.
Page 26 February 2019
