Calibration using adjustment (continued)

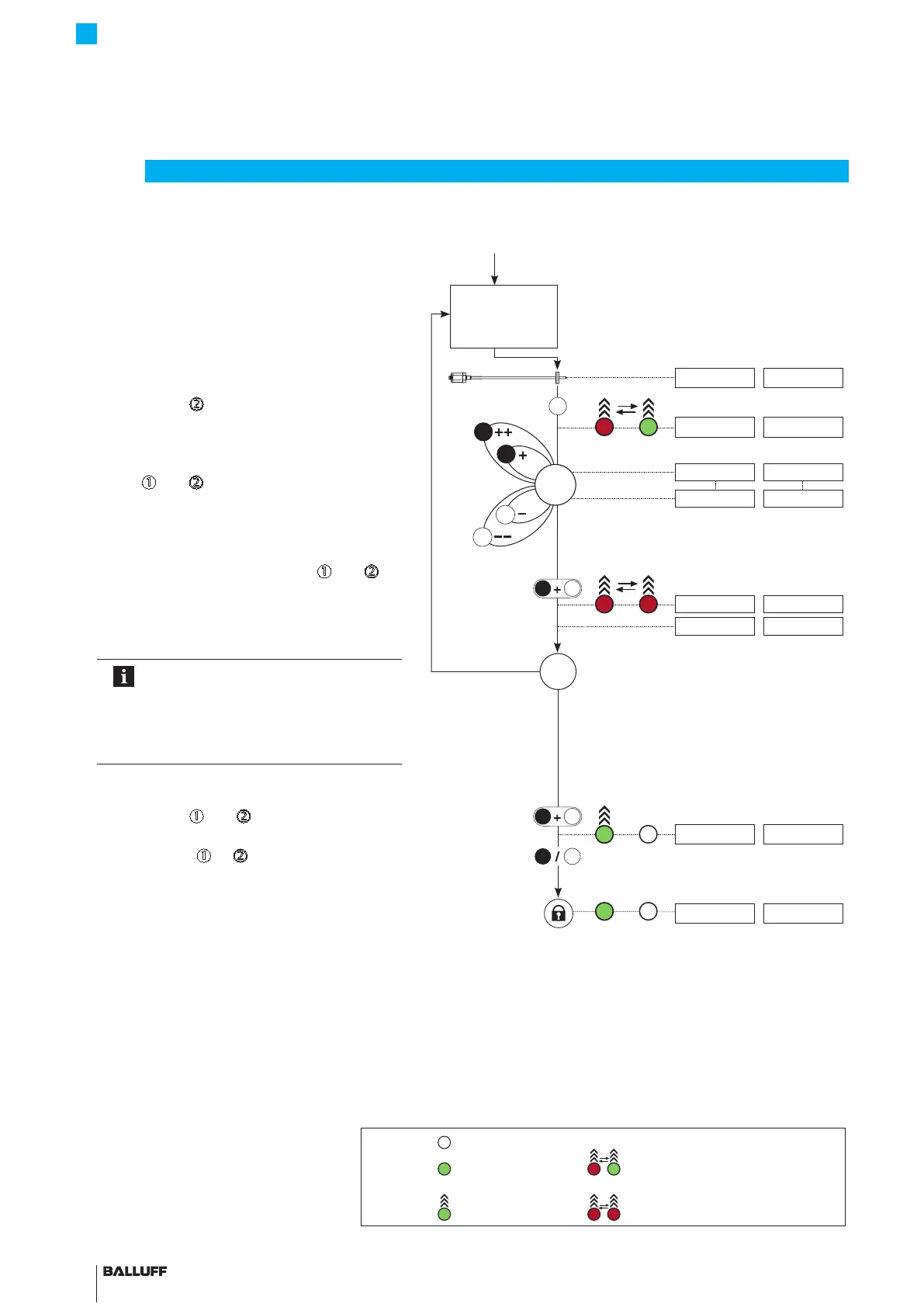

Adjust
start value
(see page 19)
LED display Displayed values (example)
LED1 LED2 At 0 to 10 V At 4 to 20 mA
4. Adjust end value
► Bring magnet to end position.
9.89 V 19.13 mA
► Hold down
for at least 2s.
> 2s
2
⇒ Indication for "Adjust end value" is displayed.
10.00 V 20.00 mA
► Adjust end value
⇒ The end value can be changed using
and
1)
. The gradient of the output
is changed, but the zero value remains
unchanged (see page16).
9.89 V 19.13 mA
9.00 V 19.00 mA
► Exit calibration procedure: Press
and
for no
more than 2s.
< 2s
1
2
⇒ Indication for "Adjustment" is displayed.
2.00V 6.00 mA
⇒ Set position value is saved.
9.00 V 19.00 mA
Check values
The settings for the start value and end
value have a mutual effect depending
on the measuring position.
Repeat steps 3 and 4 until the desired
values are exactly set.
5. Exit adjustment and deactivate buttons
► Hold down
and
simultaneously for at least 6s.
> 6s
1
2
⇒ Output indicates error value.
10.50 V 3.60 mA
► Briefly press
or
(<1s).
< 1s
2
1
⇒ Buttons are deactivated.
⇒ Current position value is displayed.
9.00 V 19.00 mA
1) Briefly press button: Current value is increased or
decreased by approx. 1 mV or 1mA.
If a button is held down longer than 1s, the step
interval is increased.
