Balluff BTL7-A Series User Manual

16 english
6
Calibration procedure (continued)
6.3.2 Adjusting
The detailed procedure for adjustment is
described on page19 ff.
A new start and/or end value is adjusted. This is
recommended when the magnet cannot be brought to the
null point or end point.
Steps
► Move magnet to the new start position.
► Set the new start value by pressing the buttons.

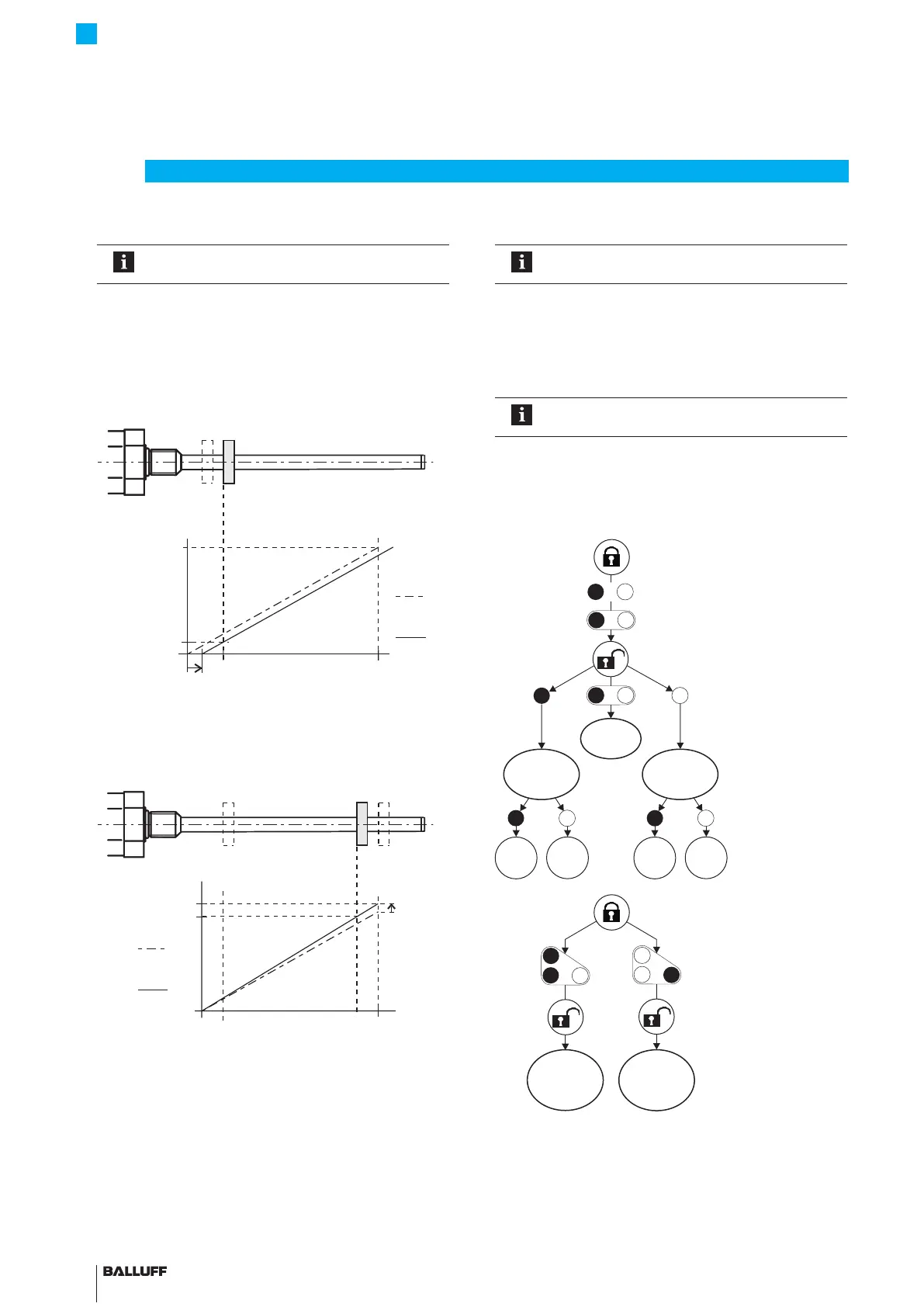

Fig. 6-4: Adjusting new start position (offset shift)
► Move magnet to the new end position.
► Set the new end value by pressing the buttons.
Fig. 6-5: Adjusting new end position (changing the output gradient)
New start value
Null point
Before
After
New end value
Before
After
End point
6.3.3 Online setting
The detailed procedure for online setting is
described on page21.
Setting start and end values while the system is running.
6.3.4 Reset
The detailed procedure for the reset is
described on page22.
Restoring the transducer to its factory settings.
6.4 Selecting the calibration procedure
1 /
1
+
1 +
1 +
+ 1
1
2
1
2
1
2
1
2
1
2
1
2
1
2
2
1
2
1
Fig. 6-6: Selecting the calibration procedure
Buttons inactive
Reset
Teach-in
Adjusting
Null
point
Null
point
End
point
End
point
Online
setting
Null point
Online
setting
End point
Buttons active
Buttons active
Buttons inactive
BTL7-A/C/E/G_ _ _-M_ _ _ _-A/B/Y/Z(8)-S32/S115/S135/S140/KA_ _/FA_ _
Micropulse Transducer - Rod Style
